Alpine CDE-W233R Quick Reference Guide

32
01.05CDEW235BT-QRG.fm
ALPINE CDE-W235BT 68-21627Z29-A (EN/DE/FR)
1

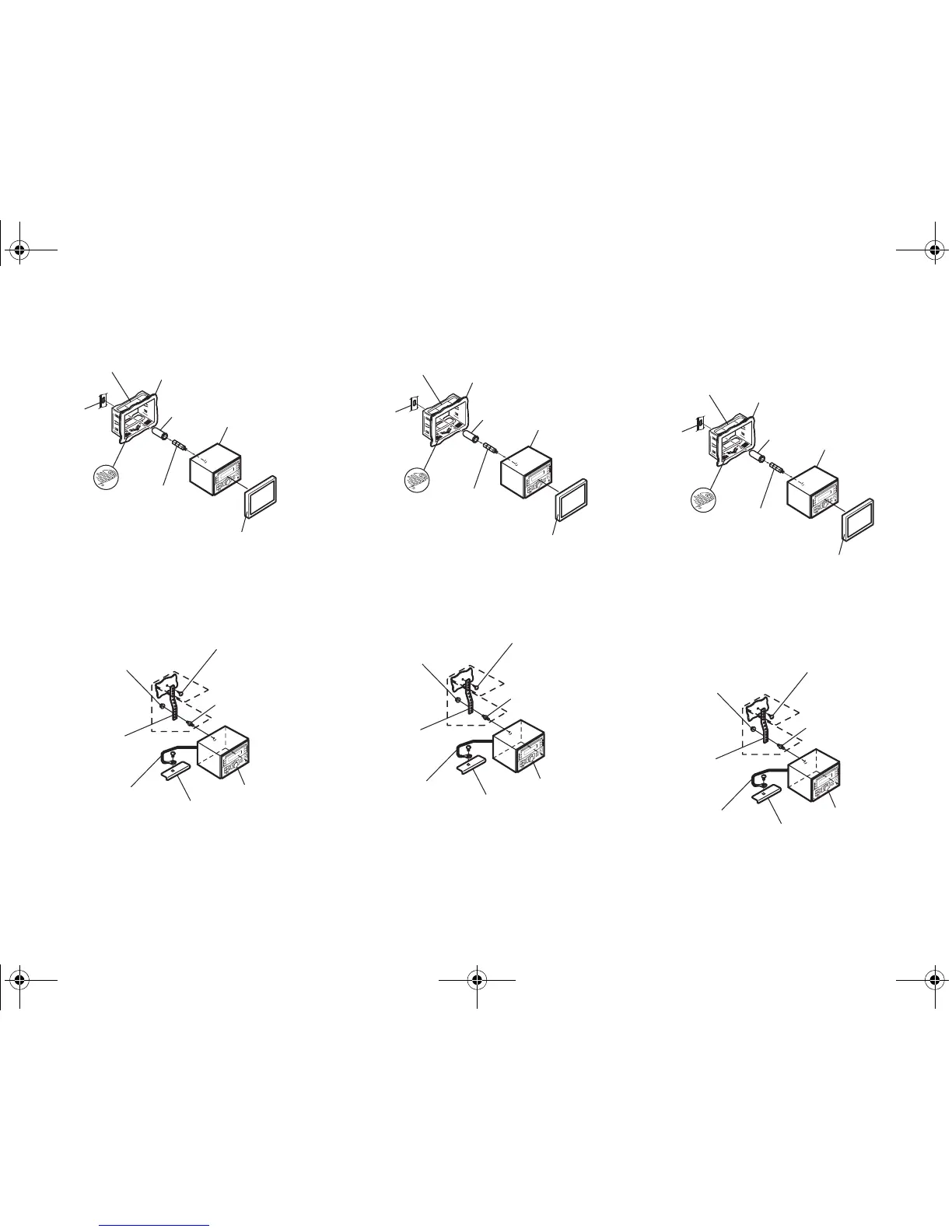

* If the installed mounting sleeve is loose in the dashboard,
the pressure plates may be bent slightly to remedy the
problem.
2
Pressure
Plates*
Hex Bolt
(Included)
Mounting Sleeve
(Included)
Bracket
key
Dashboard
Rubber Cap (Included)
This unit
Face Plate (Included)
Metal
Mounting
Strap
Hex Nut (M5)
Bolt Stud
Screw
Chassis
Ground Lead
*
2
This unit
*
1
1
* Wenn der angebrachte Einbaurahmen lose im
Armaturenbrett sitzt, können die Druckplatten leicht
gebogen werden, um das Problem zu beheben.
2
Halterungsschlüssel
Druck-
platten*
Sechskant-
Stiftschraube
(beiliegend)
Gummikappe (beiliegend)
Dieses Gerät
Armaturenbrett
Einbaurahmen
(beiliegend)
Zierblende (beiliegend)
Befestigungsstrebe
Sechskantmutter (M5)
Massekabel
Stiftschraube
Schraube
*
2
*
1
Dieses Gerät
Gehäuse
1
* Si la gaine de montage installée n’épouse pas bien la
forme du tableau de bord, les plaques de compression
peuvent être légérement pliées pour remédier au
probléme.
2
Clé de support
Plaques de
compression*
Capuchon en caoutchouc
(fourni)
Cet appareil
Boulon à
six pans (fourni)
Gaine de montage
(fournie)
Plaque frontale (fournie)
Tableau de bord
Attache de montage
en métal
Écrou hexagonal (M5)
Filetage de boulon
Vis
*
2
*
1
Cet appareil
Fil de terre
Châssis
01.00CDEW235BT-QRG.book Page 32 Friday, November 18, 2011 2:40 PM

Alpine CDE-W233R Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Image formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Display number of colors	Monochrome
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
