Alpine CDE-W233R Quick Reference Guide

34
01.05CDEW235BT-QRG.fm
ALPINE CDE-W235BT 68-21627Z29-A (EN/DE/FR)

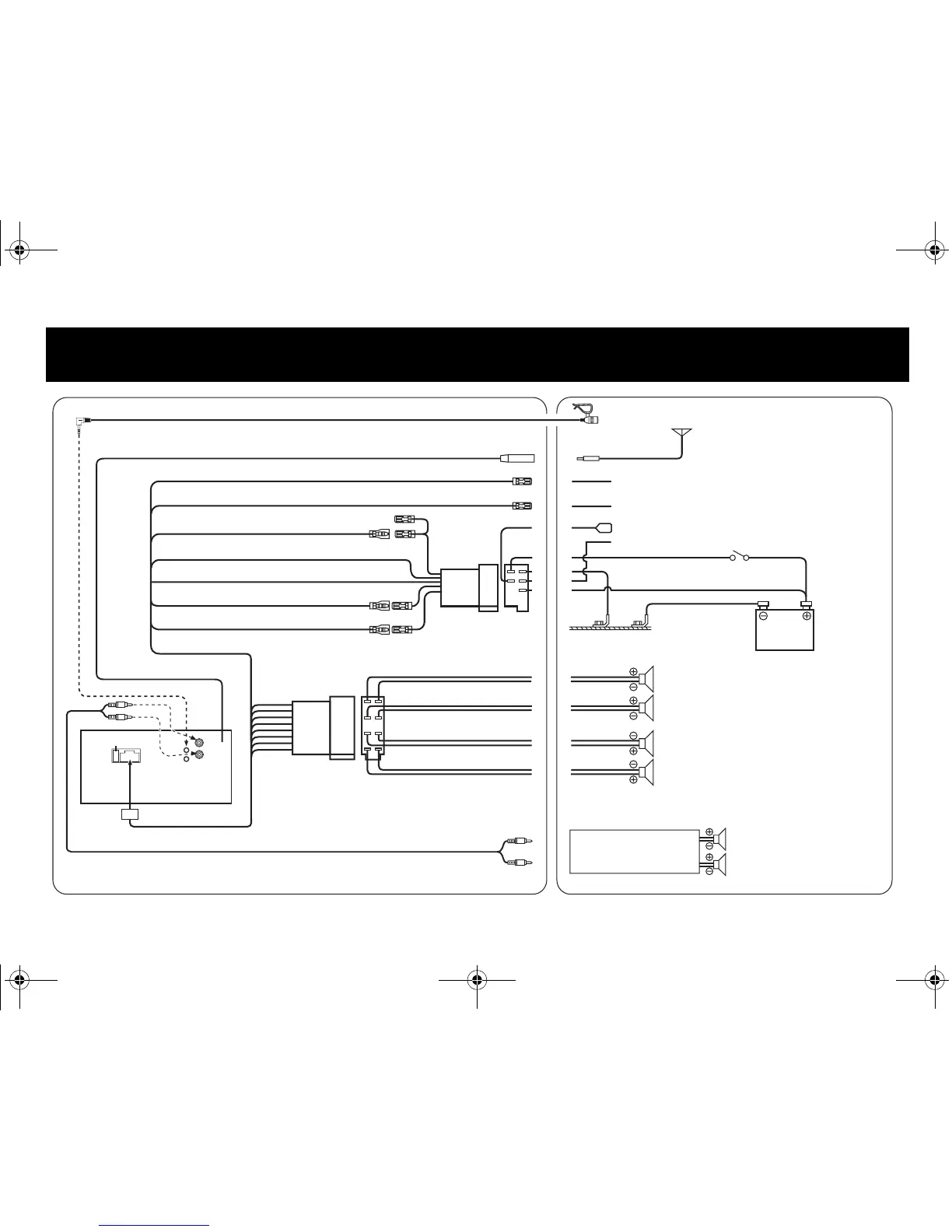

Connections / Anschlüsse / Raccordements
Microphone (CDE-W235BT only)
To amplifier or equalizer/An den Verstärker bzw. Equalizer/Vers
l’amplificateur ou l’égaliseur
To power antenna/An die Motorantenne/Vers l’antenne électrique
To the instrument cluster illumination lead/An das Beleuchtungskabel
des Instrumentes/Vers le fil d’éclairage du combiné d’instruments
Ignition Key
(Black) / (Schwarz) / (Noire)
(Blue) / (Blau) / (Bleu)
(Yellow) / (Gelb) / (Jaune)
(Green/Black) / (Grün/Schwarz) / (Vert/Noir)
(White/Black) / (Weiß/Schwarz) / (Blanc/Noir)
(Violet/Black) / (Violett/Schwarz) / (Violet/Noir)
(Violet) / (Violett) / (Violet)
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Front or Subwoofers
Speakers
(Green) / (Grün) / (Vert)
To Vehicle phone (Not used for CDE-W235BT)/An das
Fahrzeugtelefon (Nicht verwendet für CDE-W235BT)/Vers le
téléphone de voiture (Non utilisé pour le CDE-W235BT)
Amplifier
(Orange) / (Orange) / (Orange)
GND
(Pink/Black) / (Rosa/Schwarz) / (Rose/Noir)
(Blue/White) / (Blau/Weiß) / (Bleu/Blanc)
(Red) / (Rot) / (Rouge)
IGNITION
POWER ANT
DIMMER
BATTERY
SPEAKER LEFT REAR
(White) / (Weiß) / (Blanc)
SPEAKER LEFT FRONT
(Grey/Black) / (Grau/Schwarz) / (Gris/Noir)
(Grey) / (Grau) / (Gris)
SPEAKER RIGHT FRONT
SPEAKER RIGHT REAR
Antenna
REMOTE TURN-ON
AUDIO INTERRUPT IN
FUSE 10A
01.00CDEW235BT-QRG.book Page 34 Friday, November 18, 2011 2:40 PM

Alpine CDE-W233R Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Image formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Display number of colors	Monochrome
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
