Connections
* When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 15.

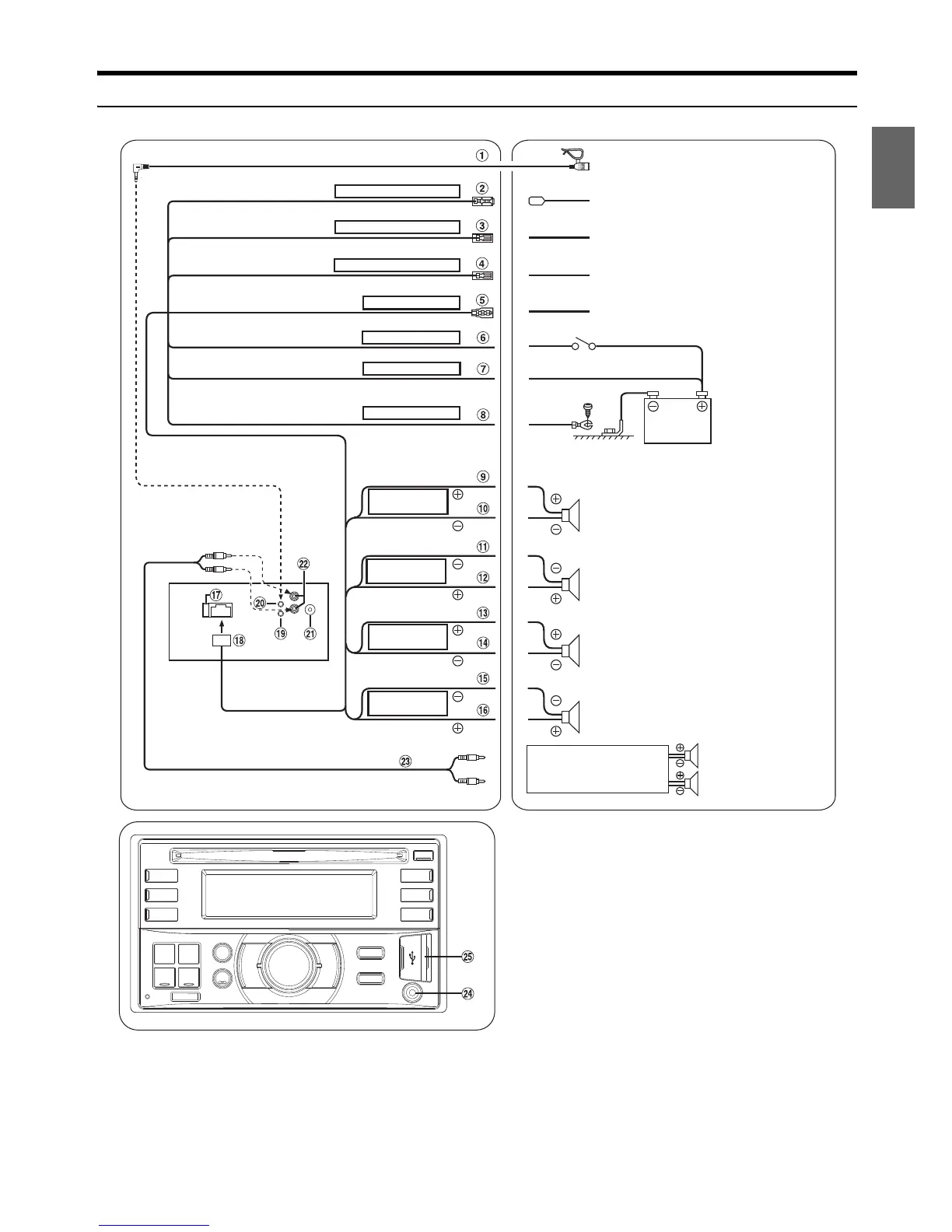

AUDIO INTERRUPT IN
REMOTE TURN-ON
IGNITION
GND
POWER ANT
ILLUMINATION
BATTERY
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
Microphone (Included)
To power antenna
To amplier
Not used
To the instrument cluster illumination lead
Ignition Key
(Pink/Black)
(Blue/White)
(Red)
(Black)
(Blue)
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Front or Subwoofers*
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
(Orange)
(Yellow)
