1

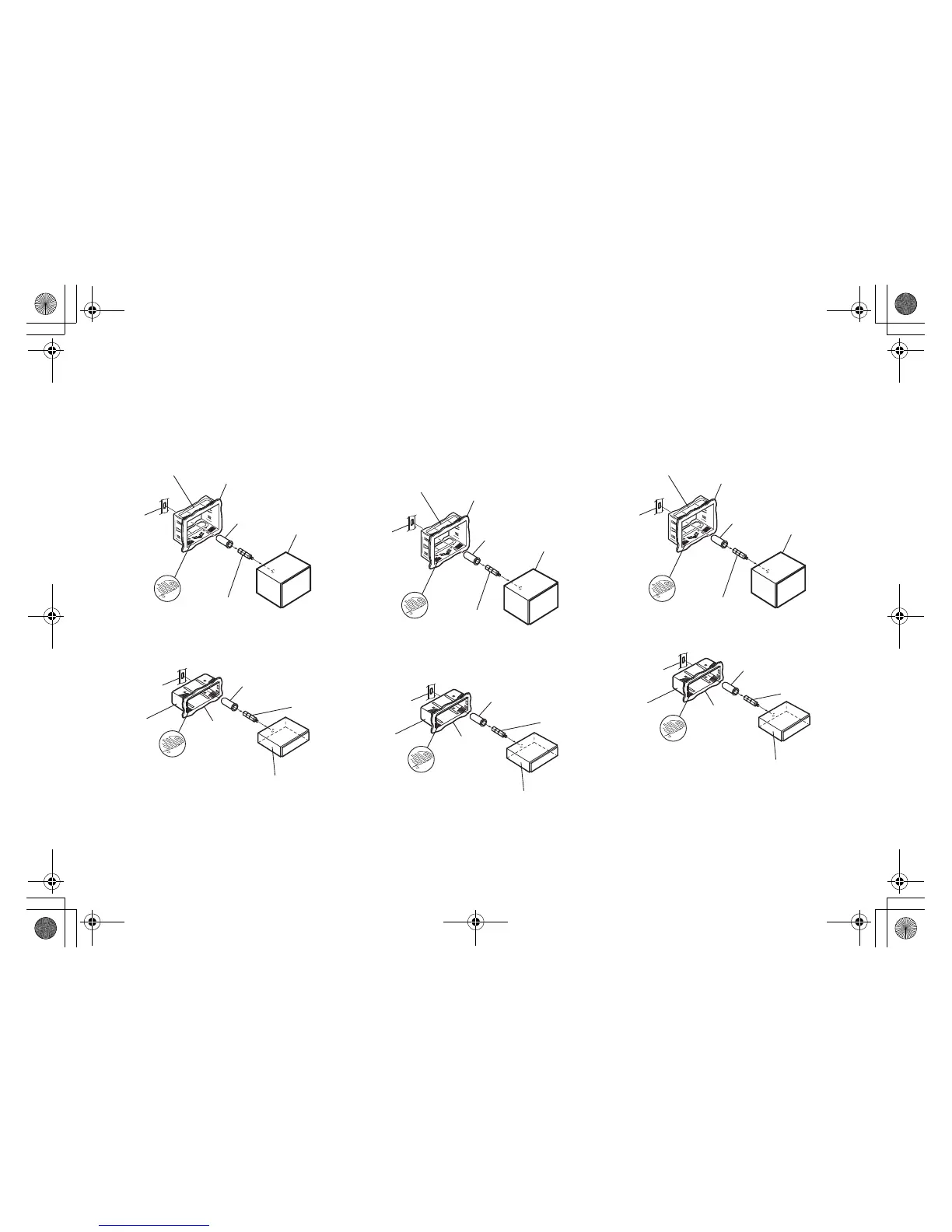

Remove the mounting sleeve from the main unit.
Slide the mounting sleeve into the dashboard and
fix it with the metal shackles.
CDE-W296BT
CDE-195BT
* If the installed mounting sleeve is loose in the dashboard,
the pressure plates may be bent slightly to remedy the
problem.
Bracket
Hex Bolt
(Included)
This unit
Pressure Plates*
Rubber Cap
(Included)
Mounting Sleeve
(Included)
Dashboard
Bracket
Hex Bolt
(Included)
This unit
Pressure Plates*
Rubber Cap
(Included)
Mounting
Sleeve
(Included)
Dashboard
1
Entfernen Sie den Einbaurahmen vom Hauptgerät.
Schieben Sie den Einbaurahmen in das
Armaturenbrett, und fixieren Sie diesen mit den
Metalllaschen.
CDE-W296BT
CDE-195BT
* Wenn der angebrachte Einbaurahmen lose im
Armaturenbrett sitzt, können die Druckplatten leicht
gebogen werden, um das Problem zu beheben.
Halterung
Einbaurahmen
(beiliegend)
Armaturenbrett
Gummikappe
(beiliegend)
Dieses Gerät
Druckplatten*
Sechskant-
Stiftschraube
(beiliegend)
Halterung
Sechskant-
Stiftschraube
(beiliegend)
Dieses Gerät
Druckplatten*
Gummikappe
(beiliegend)
Einbaurahmen
(beiliegend)
Armaturenbret
1
Enlevez la gaine de montage de l’appareil principal.
Insérez la gaine de montage dans le tableau de
bord, puis fixez-la à l’aide des attaches en métal.
CDE-W296BT
CDE-195BT
* Si la gaine de montage installée n’épouse pas bien la
forme du tableau de bord, vous pouvez plier légèrement
les plaques de compression pour remédier au problème.
Support
Boulon à six
pans
(fourni)
Cet appareil
Plaques de
compression*
Capuchon de
caoutchouc (fourni)
Gaine de montage
(fournie)
Tableau de bord
Support
Boulon à six
pans
(fourni)
Cet appareil
Plaques de compression*
Capuchon de
caoutchouc (fourni)
Gaine de
montage
(fournie)
Tableau de
bord
