Alpine CDE-W296BT Quick Reference Guide

ALPINE CDE-195BT 68-24567Z95-A (EN/DE/FR)
41
01.05CDE195BT-QRG.fm

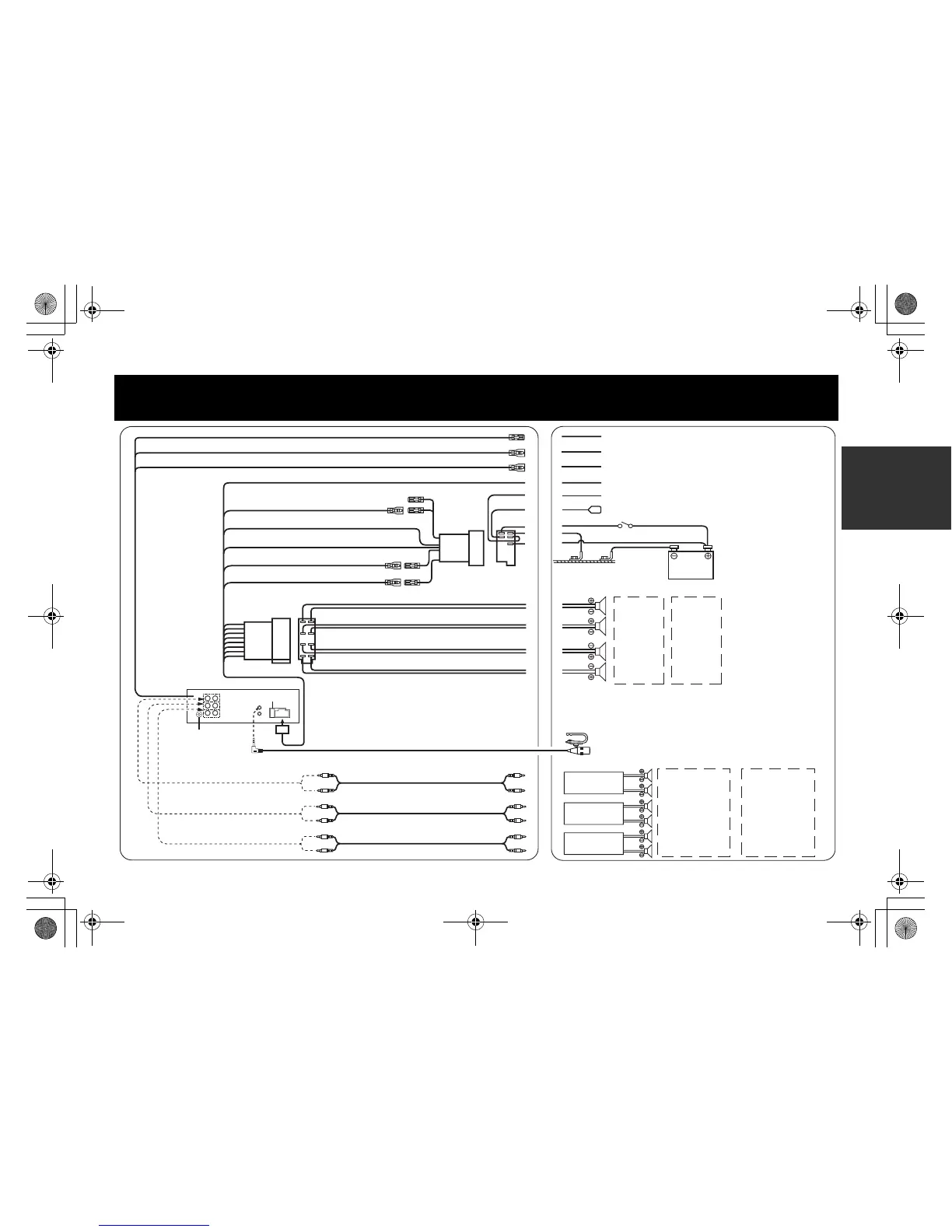

Connections / Anschlüsse / Raccordements
To adaptive steering remote control interface box /
An Schnittstellenbox für die adaptive Lenkradfernbedienung /
Au boîtier d’interface de la télécommande au volant adaptative
Ignition Key
Front high
range (R)
Amplifier
Front high
range (L)
Rear high
range (L)
Rear high
range (R)
(Blue/White) / (Blau/Weiß) / (Bleu/Blanc)
(Red) / (Rot) / (Rouge)
(Black) / (Schwarz) / (Noir)
(Blue) / (Blau) / (Bleu)
(Yellow) / (Gelb) / (Jaune)
(Green/Black) / (Grün/Schwarz) / (Vert/Noir)
(White/Black) / (Weiß/Schwarz) / (Blanc/Noir)
(Violet) / (Violett) / (Violet)
Speakers
Amplifier
RCA Extension Cable (Sold Separately)
FUSE 10A
(Green) / (Grün) / (Vert)
Amplifier
(Orange) / (Orange) / (Orange)
GND
Microphone / Mikrofon / Microphone
Antenna Receptacle
REMOTE TURN-ON
IGNITION
POWER ANT
DIMMER
BATTERY
(White) / (Weiß) / (Blanc)
(Grey/Black) / (Grau/Schwarz) / (Gris/Noir)
(Grey) / (Grau) / (Gris)
(Violet/Black) / (Violett/Schwarz) / (Violet/Noir)
To amplifier / An den Verstärker / Vers l’amplificateur
To the instrument cluster illumination lead / An das Beleuchtungskabel
des Instrumentes / Vers le fil d’éclairage du combiné d’instrument
To power antenna / An die Motorantenne / Vers l’antenne électrique
RCA Extension Cable (Sold Separately)
RCA Extension Cable (Sold Separately)
(Black) / (Schwarz) / (Noir)
ADAPTIVE STEERING REMOTE G.GND
(Brown/Yellow) / (Braun/Gelb) / (Brun/Jaune) ADAPTIVE STEERING REMOTE CONTROL IN1
(Brown/Orange) / (Braun/Orange) / (Brun/Orange)
ADAPTIVE STEERING REMOTE CONTROL IN2
2WAY system
3WAY system
High
range (R)
High
range (L)
Mid
range (L)
Mid
range (R)
Speakers
Battery
Mid
range (R)
Rear high range (L)
Front high range (R)
Front high range (L)
Rear high range (R)
2WAY system
3WAY system
Mid range (L)
High range (R)
High range (L)
Mid range (R)
Subwoofers
Subwoofers
01.00CDE195BT-QRG.book Page 41 Thursday, September 11, 2014 3:15 PM

Alpine CDE-W296BT Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WMA
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
DIN size	2 DIN
Output power	200 W
RDS features	AF, CT, EON, PTY, TA, TP
Product color	Black
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	9
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, OPP, PBAP, SPP
Key illumination color	Multi
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Weight	1850 g
Dimensions (WxDxH)	178 x 161.7 x 100 mm
