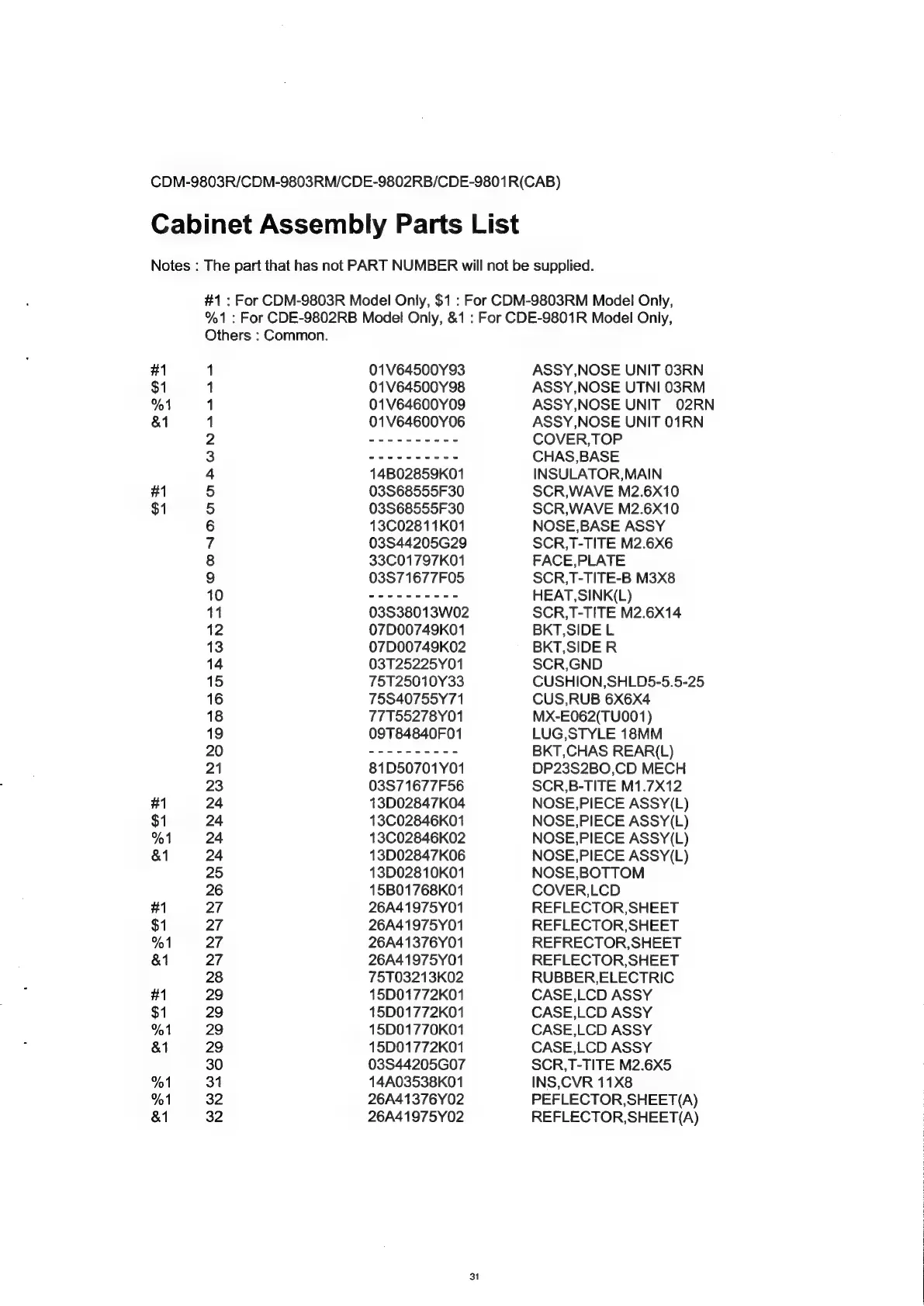

Alpine CDM-9803R - Page 31

CDM-9803R/CDM-9803RM/CDE-9802RB/CDE-9801R(CAB)
Cabinet Assembly Parts List
Notes : The part that has not PART NUMBER will not be supplied.
#1
%1
&1
#1
$1
#1
% 1
&1
#1
%'
&1
#1
% 1
&1
%1
%1
&1
#1 : For CDM-9803R Model Only, $1 : For CDM-9803RM Model Only,
%1 : For CDE-9802RB Model Only, &1 : For CDE-9801R Model Only,
Others : Common.
OONODAAARWHNH A A A=
01V64500Y93
01V64500Y98
01V64600Y09
01V64600Y06
14B02859K01
03S68555F30
03S68555F30
13C002811K01
03844205629
33C01797K01
03S71677F05
03S38013W02
07D00749K01
07D00749K02
03T25225Y01
75T25010Y33
75S40755Y71
77T55278Y01
09T84840F01
81D50701Y01
03S71677F56
13D02847K04
13C02846K01
13C02846K02
13D02847K06
13D02810K01
15B01768K01
26A41975Y01
26A41975Y01
26A41376Y01
26A41975Y01
75T03213K02
15D01772K01
15D01772K01
15D01770K01
15D01772K01
03844205G07
14A03538K01
26A41376Y02
26A41975Y02
31
ASSY,NOSE UNIT 03RN
ASSY,NOSE UTNI 03RM
ASSY,NOSE UNIT 02RN
ASSY,NOSE UNIT 01RN
COVER,TOP
CHAS,BASE
INSULATOR,MAIN
SCR,WAVE M2.6X10
SCR,WAVE M2.6X10
NOSE,BASE ASSY
SCR,T-TITE M2.6X6
FACE,PLATE
SCR,T-TITE-B M3X8
HEAT,SINK(L)
SCR,T-TITE M2.6X14
BKT,SIDE L
BKT,SIDER
SCR,GND
CUSHION, SHLD5-5.5-25
CUS,RUB 6X6X4
MX-E062(TU001)
LUG,STYLE 18MM
BKT,CHAS REAR(L)
DP23S2B0,CD MECH
SCR,B-TITE M1.7X12
NOSE,PIECE ASSY(L)
NOSE, PIECE ASSY(L)
NOSE, PIECE ASSY(L)
NOSE, PIECE ASSY(L)
NOSE,BOTTOM
COVER,LCD
REFLECTOR,SHEET
REFLECTOR,SHEET
REFRECTOR,SHEET
REFLECTOR,SHEET
RUBBER,ELECTRIC
CASE,LCD ASSY
CASE,LCD ASSY
CASE,LCD ASSY
CASE,LCD ASSY
SCR,T-TITE M2.6X5
INS,CVR 11X8
PEFLECTOR,SHEET(A)
REFLECTOR,SHEET(A)
