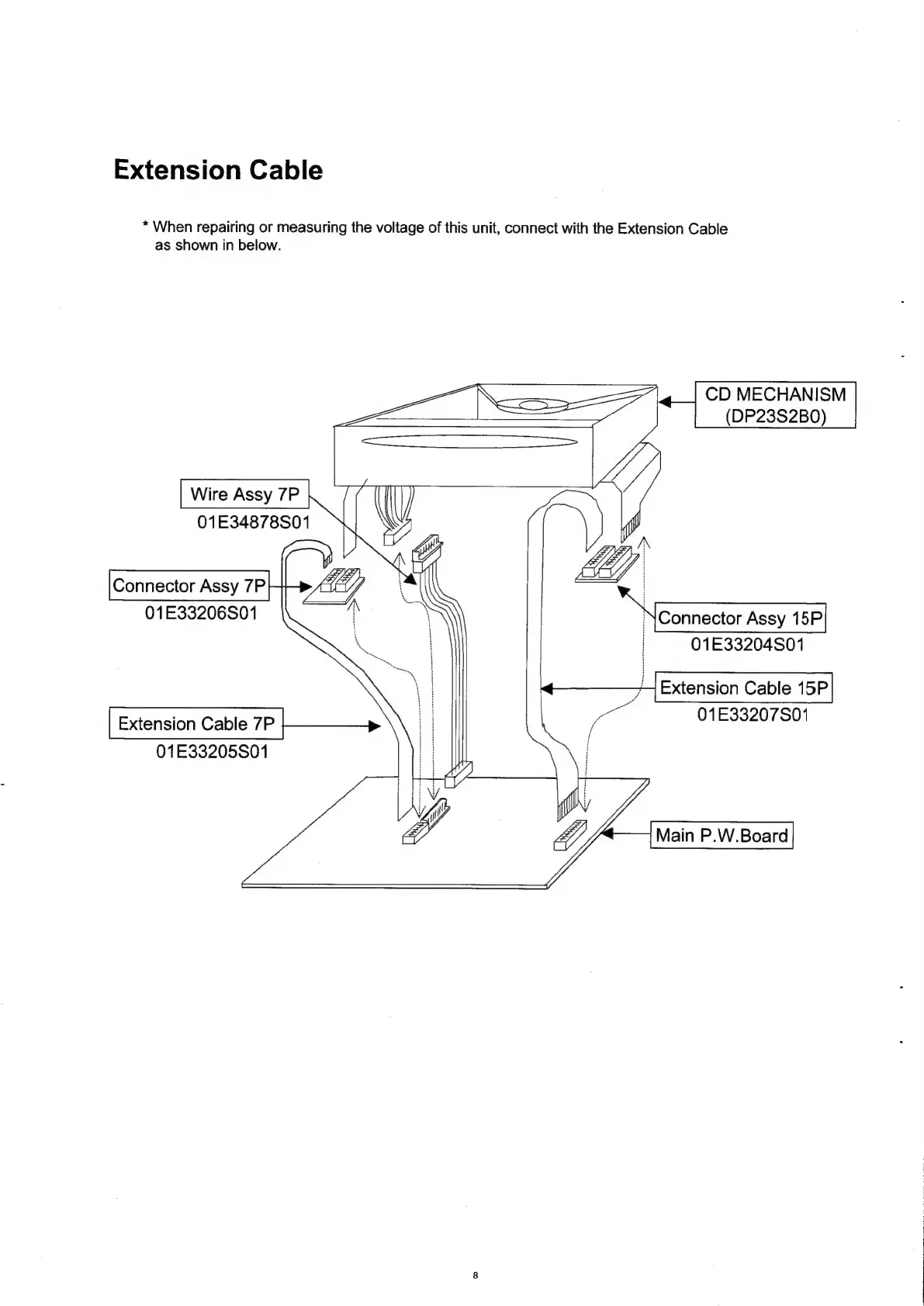

Extension
Cable
*
When
repairing
or
measuring
the
voltage
of
this
unit,
connect
with
the
Extension
Cable
as
shown
in
below.
CD
MECHANISM
(DP23S2B0)
|
Connector
Assy
15P
01E33204S01
|Extension
Cable
15P
01E33207S01
Extension
Cable
7P
01E33205S01
Main
P.W.Board
