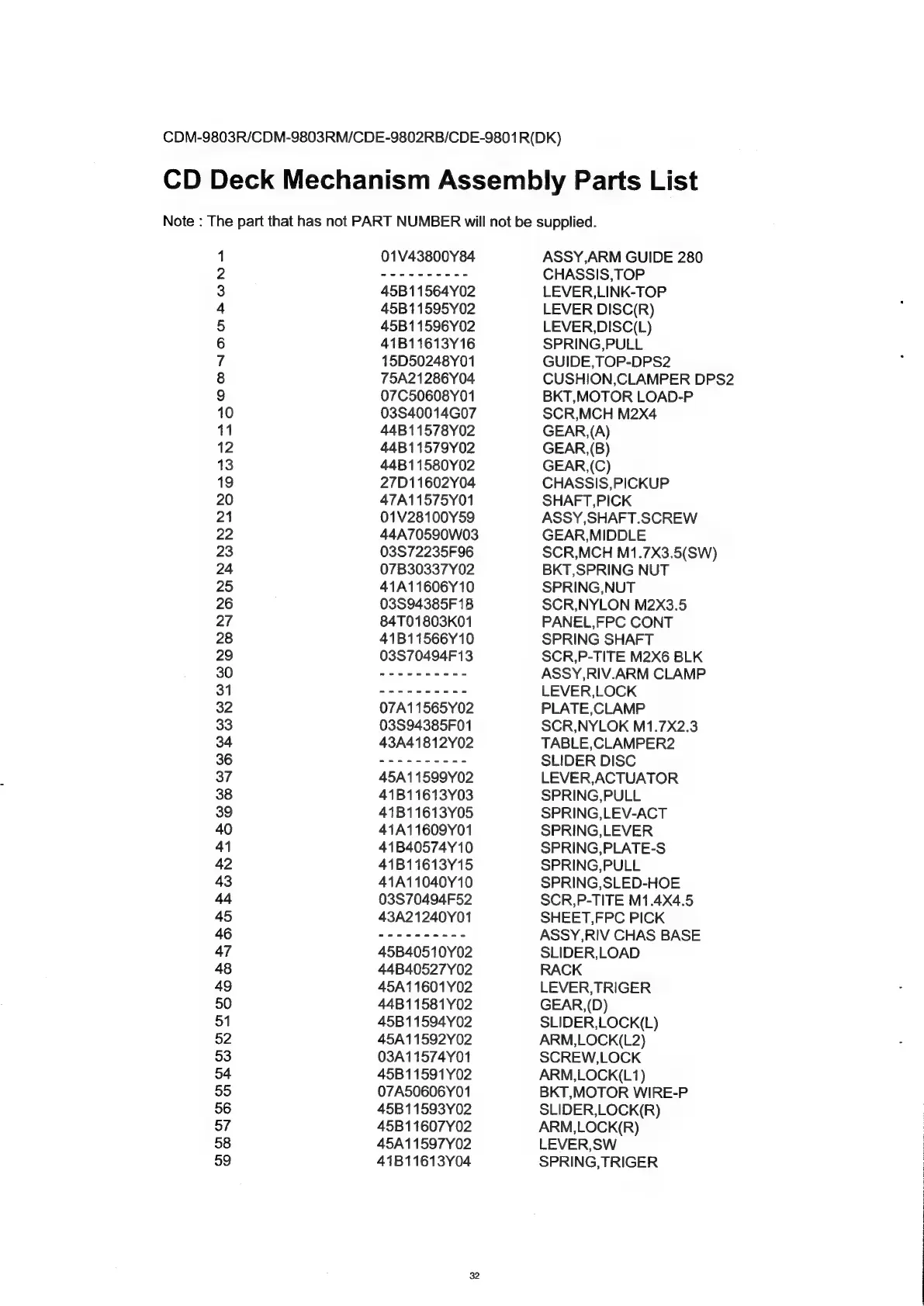

CDM-9803R/CDM-9803RM/CDE-9802RB/CDE-9801R(Dk)
CD Deck Mechanism Assembly Parts List
Note : The part that has not PART NUMBER will not be supplied.
OONODAARWHNDH =
01V43800Y84
45B11564Y02
45B11595Y02
45B11596Y02
41B11613Y16
15D50248Y01
75A21286Y04
07C50608Y01
03S40014G07
44B11578Y02
44B11579Y02
44B11580Y02
27D11602Y04
47A11575Y01
01V28100Y59
44A70590W03
03S872235F96
07B30337Y02
41A11606Y10
03S94385F 18
84T01803K01
41B11566Y10
03S870494F13
07A11565Y02
03S$94385F01
43A41812Y02
45A11599Y02
41B11613Y03
41B11613Y05
41A11609Y01
41B40574Y10
41B11613Y15
41A11040Y10
03S70494F52
43A21240Y01
45B40510Y02
44B40527Y02
45A11601Y02
44B11581Y02
45B11594Y02
45A11592Y02
03A11574Y01
45B11591Y02
07A50606Y01
45B11593Y02
45B11607Y02
45A11597Y02
41B11613Y04
32
ASSY,ARM GUIDE 280
CHASSIS, TOP
LEVER,LINK-TOP
LEVER DISC(R)
LEVER,DISC(L)
SPRING,PULL
GUIDE, TOP-DPS2
CUSHION,CLAMPER DPS2
BKT,MOTOR LOAD-P
SCR,MCH M2X4
GEAR, (A)
GEAR, (B)
GEAR, (C)
CHASSIS, PICKUP
SHAFT,PICK
ASSY,SHAFT.SCREW
GEAR,MIDDLE
SCR,MCH M1.7X3.5(SW)
BKT,SPRING NUT
SPRING,NUT
SCR,NYLON M2X3.5
PANEL,FPC CONT
SPRING SHAFT
SCR,P-TITE M2X6 BLK
ASSY,RIV.ARM CLAMP
LEVER,LOCK
PLATE,CLAMP
SCR,NYLOK M1.7X2.3
TABLE,CLAMPER2
SLIDER DISC
LEVER,ACTUATOR
SPRING,PULL
SPRING,LEV-ACT
SPRING,LEVER
SPRING,PLATE-S
SPRING,PULL
SPRING,SLED-HOE
SCR,P-TITE M1.4X4.5
SHEET,FPC PICK
ASSY,RIV CHAS BASE
SLIDER,LOAD
RACK
LEVER,TRIGER
GEAR,(D)
SLIDER,LOCK(L)
ARM,LOCK(L2)
SCREW,LOCK
ARM,LOCK(L1)
BKT,MOTOR WIRE-P
SLIDER,LOCK(R)
ARM,LOCK(R)
LEVER,SW
SPRING, TRIGER
