Alpine D-AUDIO Quick Reference Guide

ALPINE iLX-W650 M3514671010_QRG (EN)
13-EN
EN
FR
ES
)
fu
se (sold
battery,
i
tion, and
Owner’s manual Connections

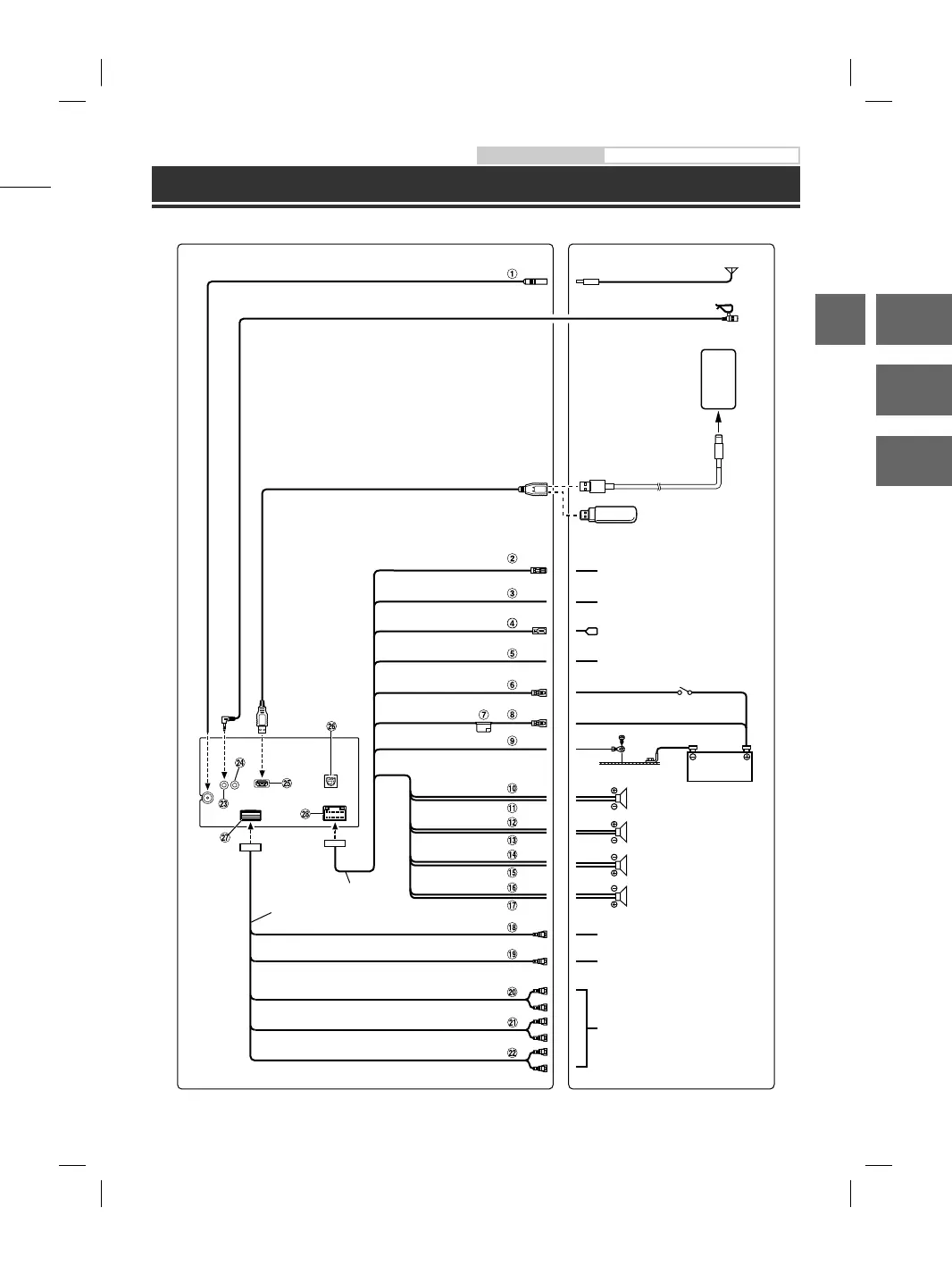

Connections
Vehicle Antenna
Microphone (included)
iPhone with a Lightning
connector (sold separately)
Lightning to USB Cable
KCU-471i (sold separately)
USB Flash Drive
(sold separately)
To amplifier or equalizer
To plus side of the back lamp signal lead
of the car
To power antenna
To the parking brake signal lead
Ignition key
Battery
Power cable
PRE OUT cable
Speakers
Rear Left
Front Left
Front Right
Rear Right
To Rear camera
To Front camera
To input terminal of amplifier when
adding an external amplifier
REAR OUT
USB extension cable (included)
REMO
(Blue/White)
REVERSE
(Orange/White)
P. ANT
(Blue)
PARKING BRAKE
(Yellow/Blue)
ACC
(Red)
BATT
(Yellow)
GND
(Black)
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
REAR VIEW CAMERA
FRONT VIEW CAMERA
SUBW
FRONT OUT

Alpine D-AUDIO Specifications

General

Brand	Alpine
Model	D-AUDIO
Category	Car Receiver
Language	English
