Alpine i207-WRA - Connection Of KAC-001 (Optional Accessory)

Jeep Wrangler
i207-WRA 20201016v1
 17/19

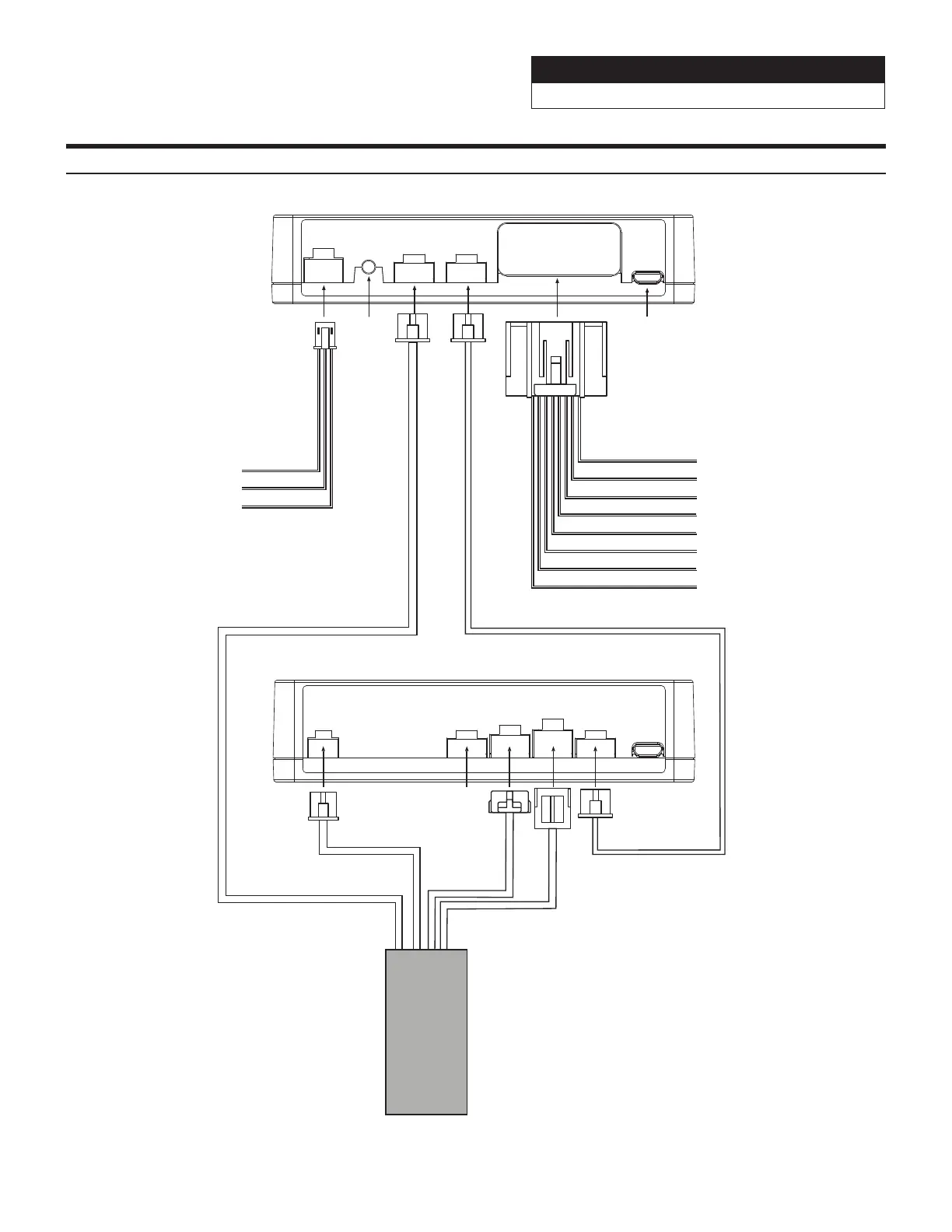

Connection Of KAC-001 (Optional Accessory)
4 Pin
Black Data
POWER RESET HEADUNIT CAN OUTPUT UPDATE
BATT* (Yellow)
Output 1 (Purple)
Output 2 (White/Red)
Output 3 (Brown)
Output 4 (Blue)
Output 5 (Green)
Output 6 (Pink)
Output 7 (White)
Output 8 (Gray)
Connect to Relay/output to
accessories (Sold separately)
Reset
Button
Interface Harness (4-pin White)
Power Harness (3-pin White)
8ch Output Harness (24-pin White)
Interface Cable (4-pin) (included with ADS module)
USB port
(Firmware
updates only)
ACC (Red)
GND (Black)
*Fuse Rating: 7A
To 4 Pin Black Data
Connect to IDATALINK I/F
cable from head unit. This is
the 4 pin data connector
shown on page 12 in the
installation diagram that
comes directly off of the
main harness
Main Harness
3 Pin
Black
4 Pin
Blue
10 Pin
Green
3 Pin
Black
Not
Used
To Head Unit
Maestro Module Side View
KAC-001 Side View
