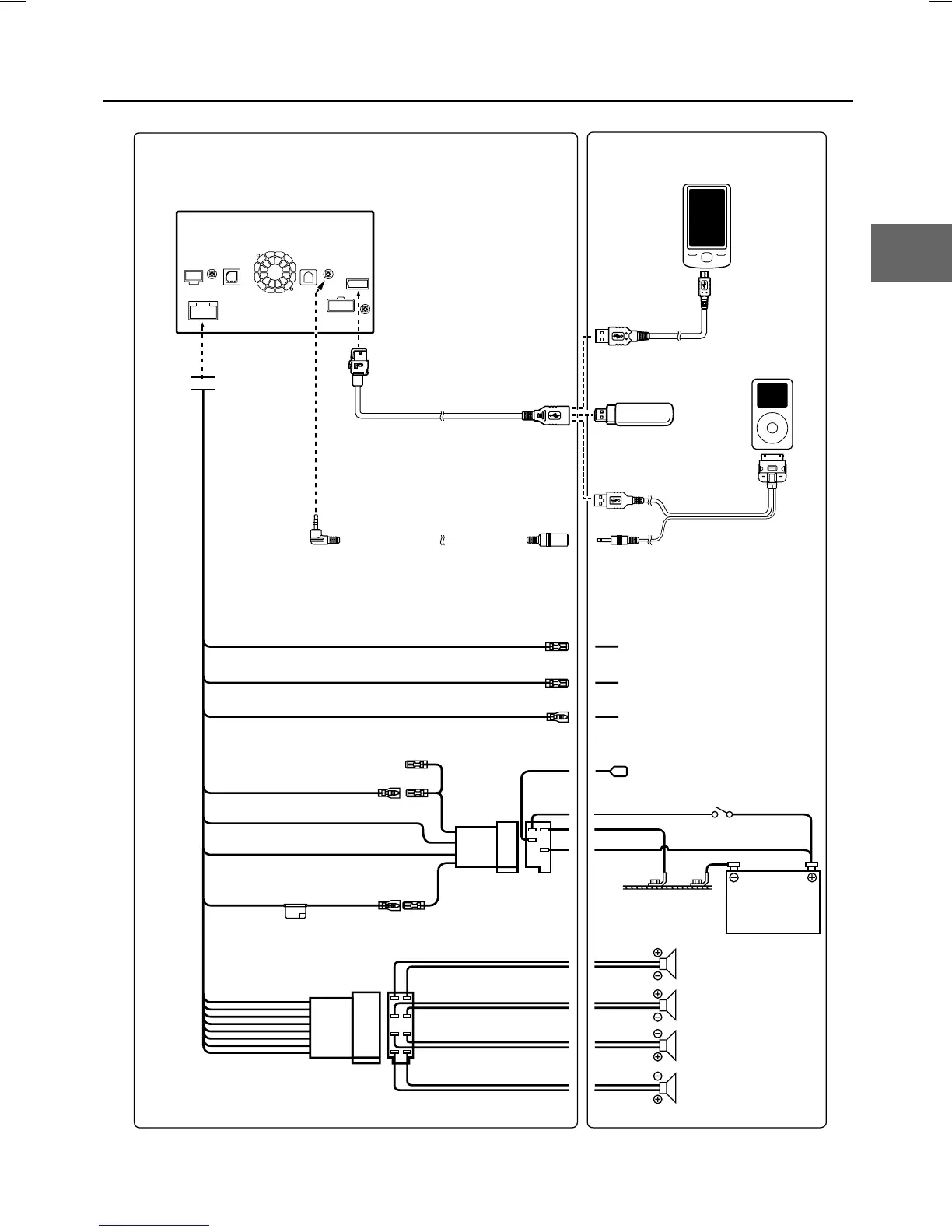

Connections 2/2
(Blue/White)
REMOTE TURN-ON
Mobile Phone
(Sold separately)
Mobile Phone cable
(Sold separately)
USB extension cable (Included)
iPod/iPhone
(Sold separately)
Connection kit KCU-461iV
(Sold separately)
iPod VIDEO AV extension cable (Included with KCU-461iV)
10A
(Pink/Black)
AUDIO INTERRUPT IN
(Yellow/Blue)
PARKING BRAKE
(Red)
IGNITION
(Black)
GND
(Blue)
POWER ANT
(Yellow)
BATTERY
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
To amplifier or equalizer
Not used
To the parking brake
signal lead
To power antenna
Ignition key
Battery
Rear left
Front left
Front right
Rear right
Speakers
USB Memory
