ALPINE ICS-X7 68-21057Z37-A (EN)
14-EN
Owners manual Connections

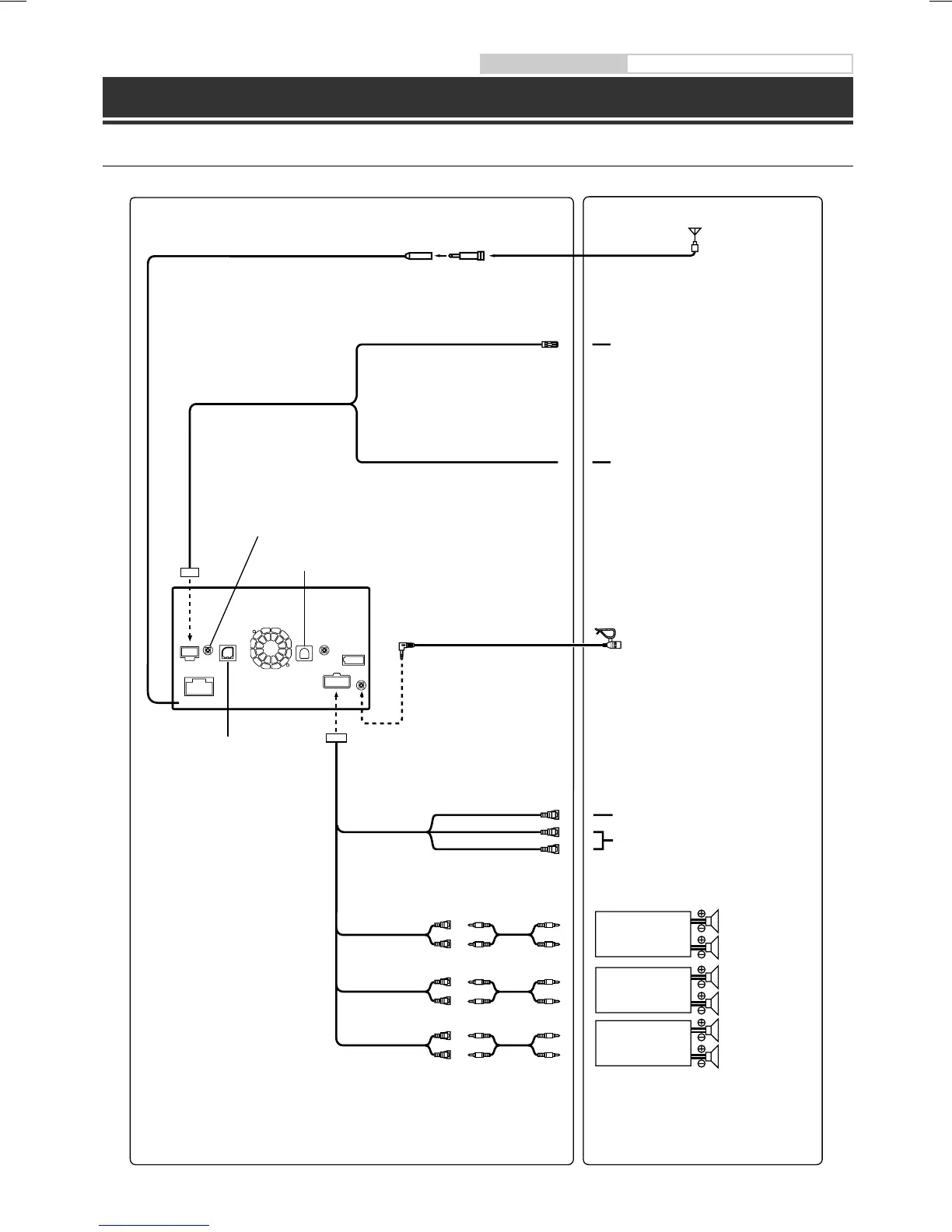

Connections
Connections 1/2
REMOTE OUT
To steering remote control
interface box.
Antenna
Connect this to the optional Vehicle
Display Interface box.
(Brown)
REVERSE
(Orange/White)
(Yellow)
(Red)
(White)
ISO Antenna Plug
To remote input lead
To plus side of the back lamp
signal lead of the car
Microphone (Included)
To Video Output terminal
To Audio Output terminals (R, L)
Amplifier
Rear Left
Rear Right
Amplifier
Front Left
Front Right
Amplifier Subwoofers
Conne
Not used
