Alpine iDE-178BT User Manual

9-EN
Accessory List
• Head unit ..................................................................................1
• Power cable...............................................................................1
• USB extension cable.................................................................1
•Microphone
*
.............................................................................1
• Mounting sleeve.......................................................................1
• Carrying case ............................................................................1
• Rubber Cap ...............................................................................1
• Hex Bolt.....................................................................................1
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
* Only for CDE-178BT/iDE-178BT.
Turning Power On and Off
Press r to turn on the unit.
Notes
• The unit can be turned on by pressing any other button except y.
• VSOURCE key blinks each time the unit is powered on.
Press and hold r for at least 2 seconds to turn off the
unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press VSOURCE to change the source.
Tuner  Disc
*1
 USB/iPod
*2
 BLUETOOTH Audio
*3

vTuner
*4
 Auxiliary
*5
 Tuner
*1 Only for CDE-178BT/CDE-175R.
*2 Displayed only when the iPod/iPhone is connected.
*3 Displayed only when Bluetooth IN is set to ON, refer to “Setting
the BLUETOOTH Connection (Bluetooth IN)” on page 32.
*4 Displayed only when Alpine APP is set to USB, refer to “Setting
the communication mode with a Smartphone (Alpine APP)” on
page 30.
*5 Displayed only when the AUX IN is set to ON, refer to “Setting
the AUX SETUP mode” on page 28.

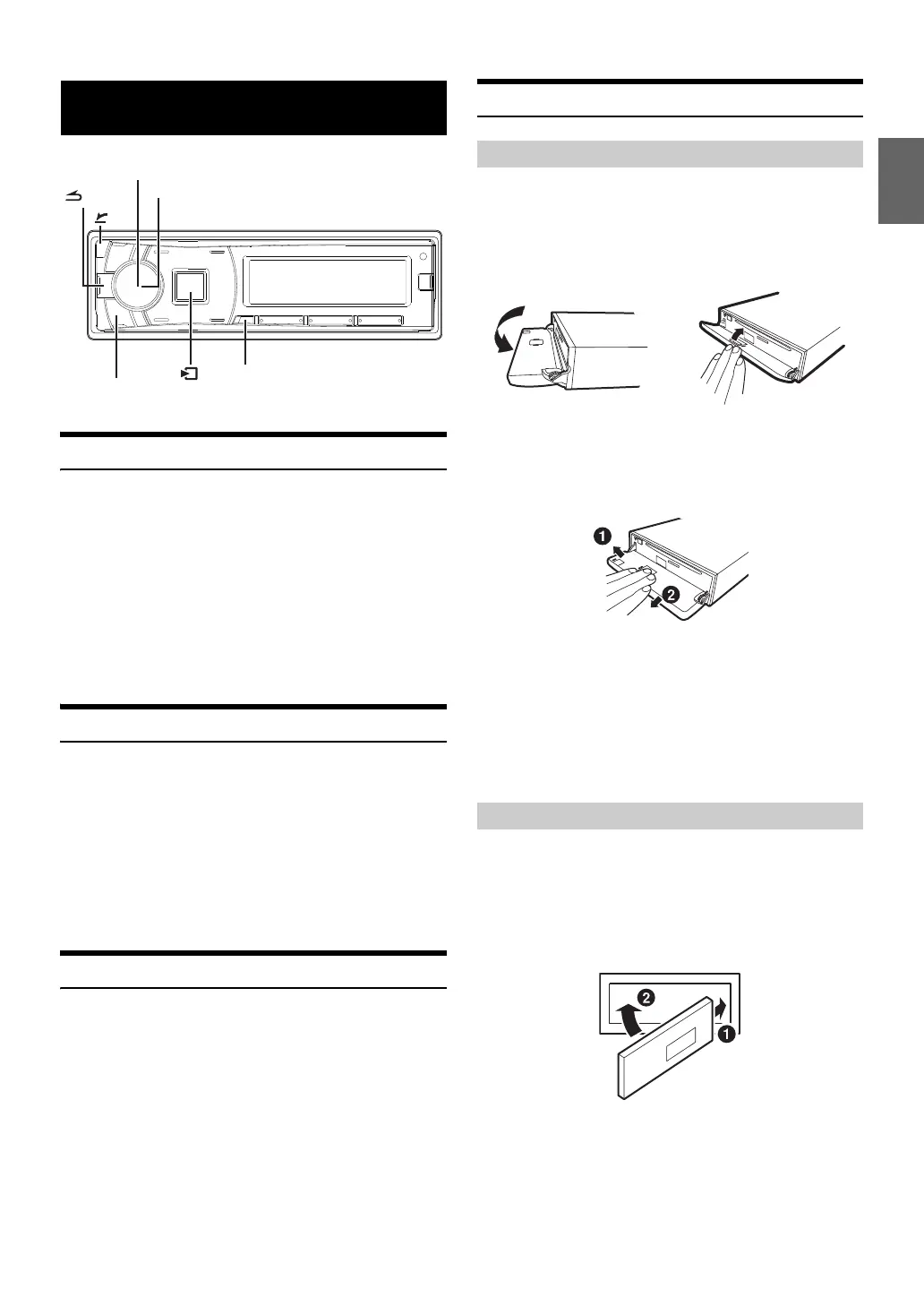

Detaching and Attaching the Front Panel
1 Turn off the unit power.
2 Press y (OPEN) to open the front panel (figure 1).
To close the front panel, press the left side until it locks as shown
in the figure 2.
3 Grasp the front panel firmly, slide to the left , and then
pull  to remove.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
• Do not leave the front panel open, or drive the car with the panel open
as it may result in an accident or malfunction.
1 Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2 Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Getting Started
MUTE
/

/ENTER

AUDIO/SETUP
SOURCE
Rotary encoder
Detaching
Attaching
figure 1 figure 2

Alpine iDE-178BT Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WMA
Video formats supported	M-JPEG
FM band range	87.5 - 108 MHz
LW band range	531 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Output power	200 W
Product color	Black
Disc types supported	CD-R, CD-RW
Display type	LCD
On Screen Display (OSD) languages	DEU, DUT, ESP, FRE, ITA, RUS
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, SSP
Headphone connectivity	3.5mm
Compatible products	iPod touch 4th/3rd/2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
Key illumination color	Multi
Battery capacity	1000 mAh

Weight and Dimensions

Weight	1100 g
Dimensions (WxDxH)	178 x 50 x 162 mm
