37-EN

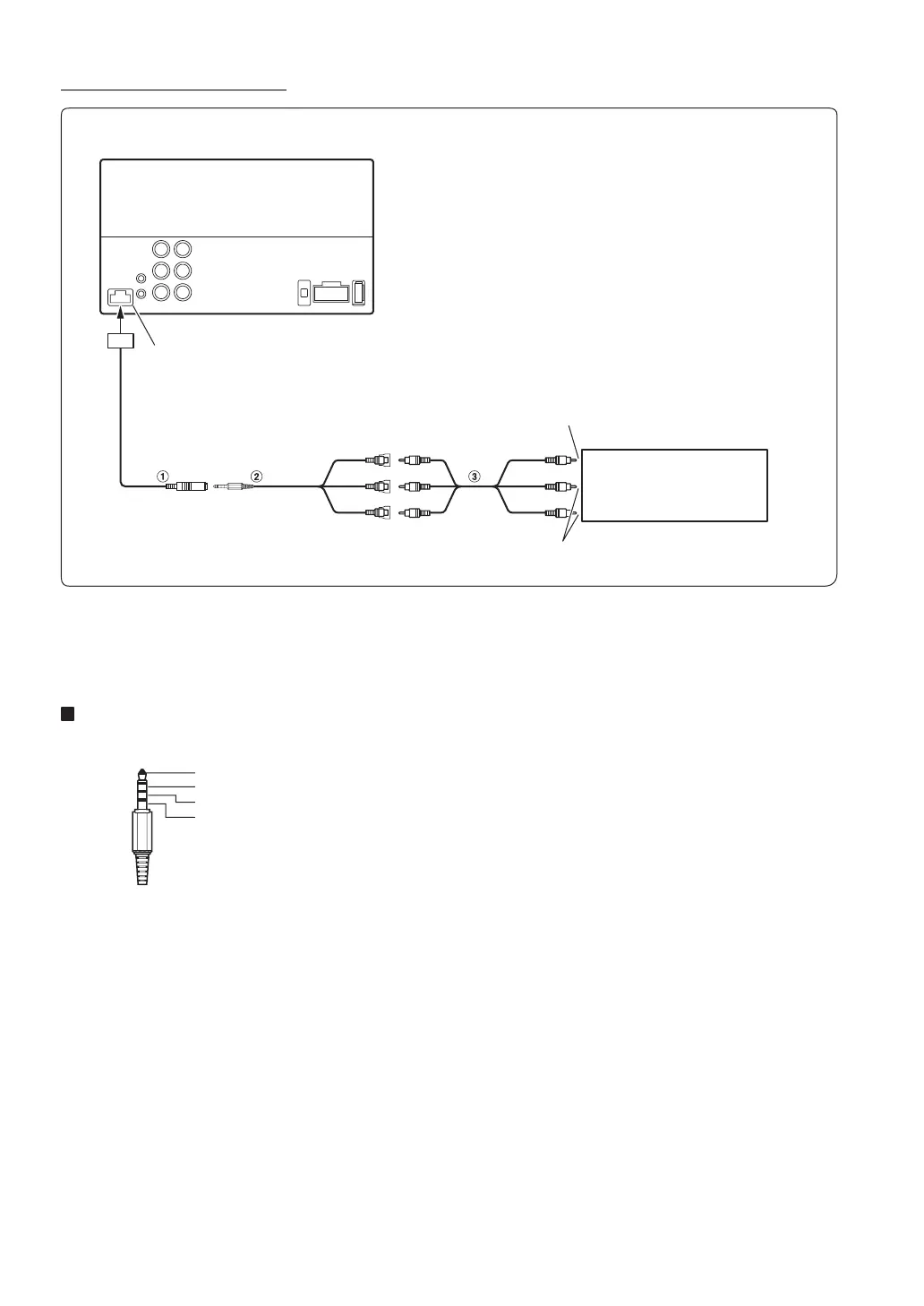

Connection of an External device
1 Video/Audio Input Connector (AUX INPUT)
• When you use this connector, an optional AV/RCA interface cable
should be used. For details, refer to 2.
2 AV/RCA interface cable (4-pole mini AV plug to
3-RCA) (Sold Separately)
Usable 4-pole mini AV plug
Wiring convention of this system is as follows:
• Configuration commercially available 4-pole mini AV plugs is not
unified.
3 RCA Extension Cable (Sold Separately)
(Yellow)
(Red)
(White)
To Video Output Terminal
DVD Player, DVB-T, etc.
(sold separately)
To Audio Output Terminal
AUX/CAMERA/CAN Connector
Audio L (White)
Audio R (Red)
Ground
Video (Yellow)
To Next Page
