Alpine iLX-F509 Installation Manual

81-EN
-60 mm
Sheet Rear
(2×50 mm)

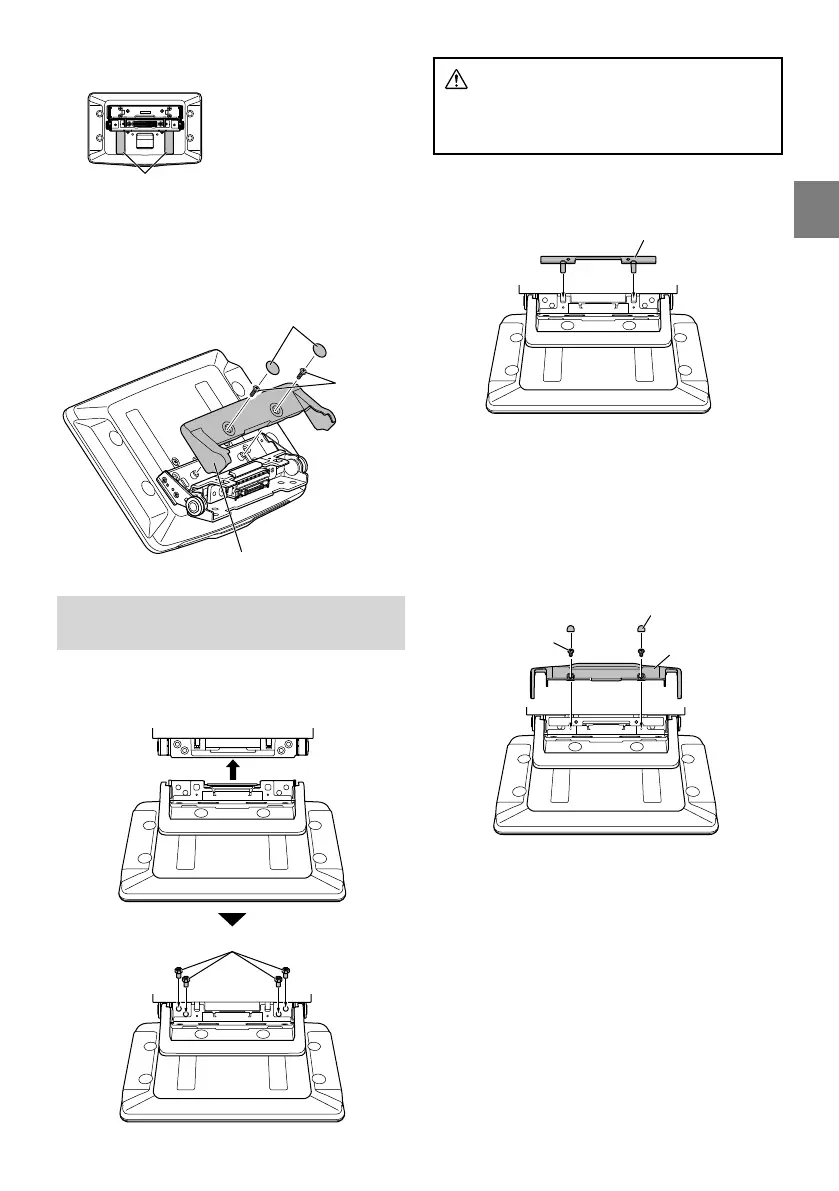

3 Attach the Cover Rear to the rear of the
display unit using 2 screws (M2.6×6).
Secure the screws, then attach the Sheet caps.
Screws
(M2.6× 6)
(Included)
Cover Rear (Included)
Sheet caps
(Included)
Install the display unit (iLX-F509/
iLX-F511)
1 Fix the Display unit to the slider of the main
unit using 4 screws (M5×8).
Screws (M5×8) (Included)
CAUTION
Do not adjust the display angle when the display
unit is not fixed to the slider of the main unit using
4 screws (M5×8). Doing so may not turn power on.
2 Mount the Power Plate.
Power Plate (Included)
• If the Power Plate is not mounted, the display unit
may not be turned power on. Make sure to mount
it.
3 Mount the Cover Hinge using 2 screws
(M3×4).
Secure the screws, then attach the Sheet
Hinge.
Sheet Hinges
(Included)
Screws (M3×4)
(Included)
Cover Hinge
(Included)

Alpine iLX-F509 Specifications

General

Display Size	9-inch
Resolution	1280 x 720
Touchscreen	Yes
Apple CarPlay	Yes
Android Auto	Yes
Bluetooth	Yes
USB Input	Yes
HDMI Input	Yes
Built-in Amplifier	Yes
Power Output	50W x 4
HD Radio	Yes
SiriusXM Ready	Yes
Backup Camera Input	Yes
EQ	13-band parametric EQ
Time Correction	Yes
Steering Wheel Control Compatible	Yes
