77-EN

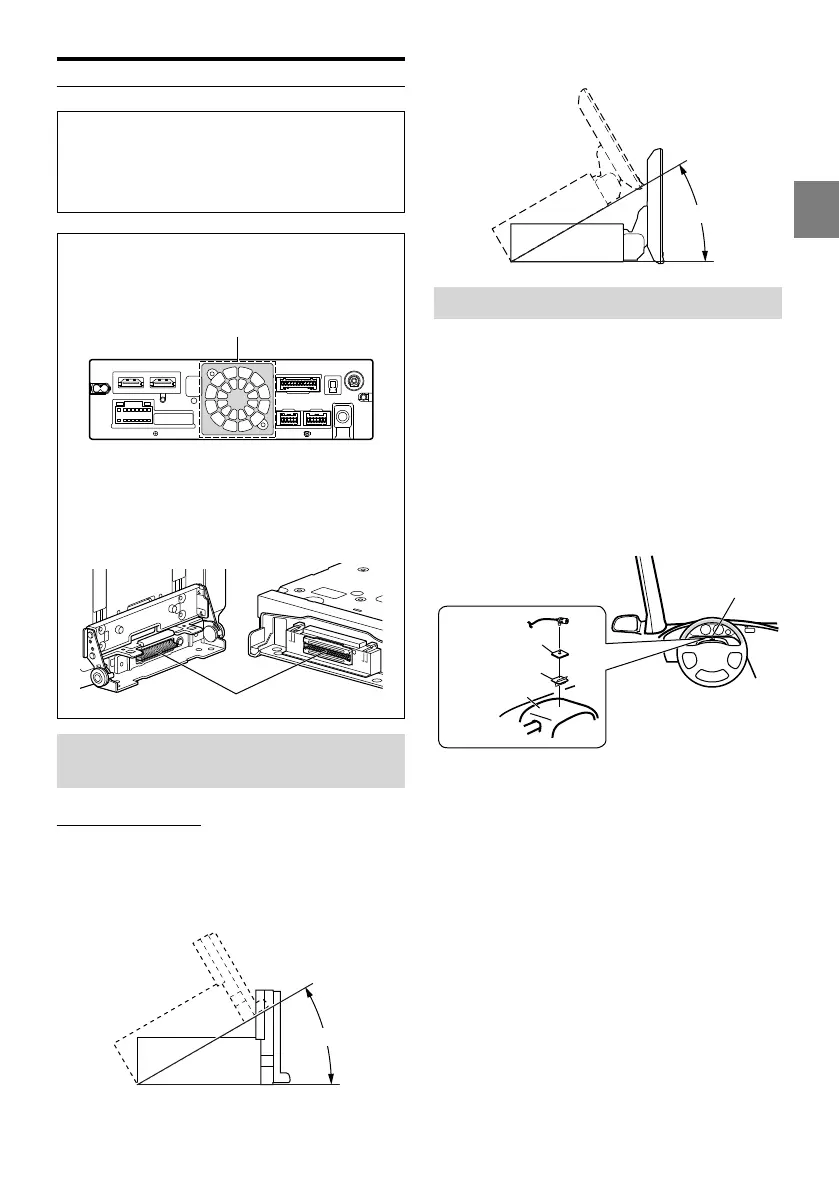

Installation
Mounting (iLX-F509/iLX-F511 only)
Consult “Position Adjustment and Mounting
Dimensions of the Display” (page 78) in advance so
that this unit does not obstruct your field of vision or
impair driving when mounted.
Caution
• Do not block the unit’s fan, thus preventing air
circulation. If blocked, heat will accumulate inside the
unit and may cause a fire.
Air ventilation hole
Rear of the Unit
• When installing the display unit and main unit, do not
touch the connectors with your hands. (iLX-F509/
iLX-F511 only)
<Display unit> <Main unit>
Connectors
Caution concerning the installation
location
Angle of installation
Install at an angle between horizontal and 30°. Note that
installing at an angle outside of this range will result in a
loss of performance and possibly damage.
■
iLX-507
0 - 30°
■
iLX-F509/iLX-F511
0 - 30°
Mounting the Microphone
For safe use, make sure of the following:
• Location is stable and firm.
• Does not interfere with safety equipment.
• Driver’s view and operations are not obstructed.
• Microphone is located where the driver’s voice can be
easily picked up.
When you speak into the microphone, you should not have
to change your driving posture. This may cause a
distraction, taking your attention away from safely driving
your vehicle. Carefully consider direction and distance while
mounting the microphone. Confirm that the driver’s voice
can be easily picked up at the selected location.
Microphone
Steering column
Microphone base
Adhesive tape
To Next Page
