Alpine iLX-F509 Installation Manual

Jeep Wrangler
i509-WRA-JK 20220404v1
 11/22

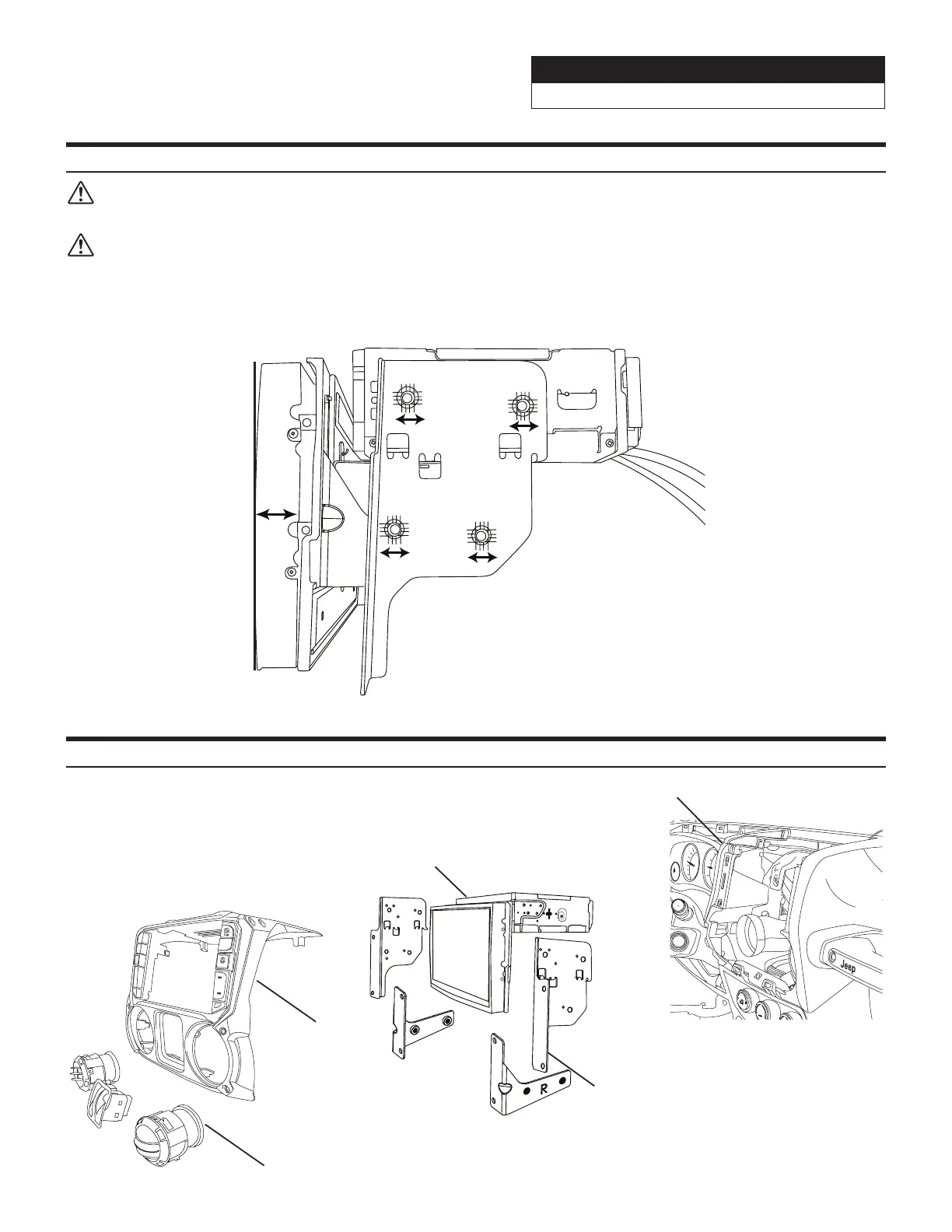

Mounting Brackets
DISCONNECT THE BATTERY BEFORE CONTINUING. FAILURE TO DO SO WILL DISABLE MANY
FEATURES.
IMPORTANT: During the research and development of this product it was discovered that mounting
tolerance may vary from the vehicle’s trim level to year built. We have added a 1mm tolerance to the
mounting brackets to compensate for such variance in mounting tolerance. Use the guides below as
reference if there are any required adjustments.
Adjust the rear bracket as needed when the top or bottom is protruding or not flushed.
Adjust the side brackets as needed when either side is protruding or not flushed.
Exploded-View Diagram
Dash Board
A
/C
i509-WRA
Radio Dash
Bezel
Factory Vents and Window
Switch Pod (not included)
i509 Source Unit
Side Mounting
Brackets
MENU

Alpine iLX-F509 Specifications

General

Display Size	9-inch
Resolution	1280 x 720
Touchscreen	Yes
Apple CarPlay	Yes
Android Auto	Yes
Bluetooth	Yes
USB Input	Yes
HDMI Input	Yes
Built-in Amplifier	Yes
Power Output	50W x 4
HD Radio	Yes
SiriusXM Ready	Yes
Backup Camera Input	Yes
EQ	13-band parametric EQ
Time Correction	Yes
Steering Wheel Control Compatible	Yes
