Jeep Wrangler
i509-WRA-JK 20220404v1
13/22

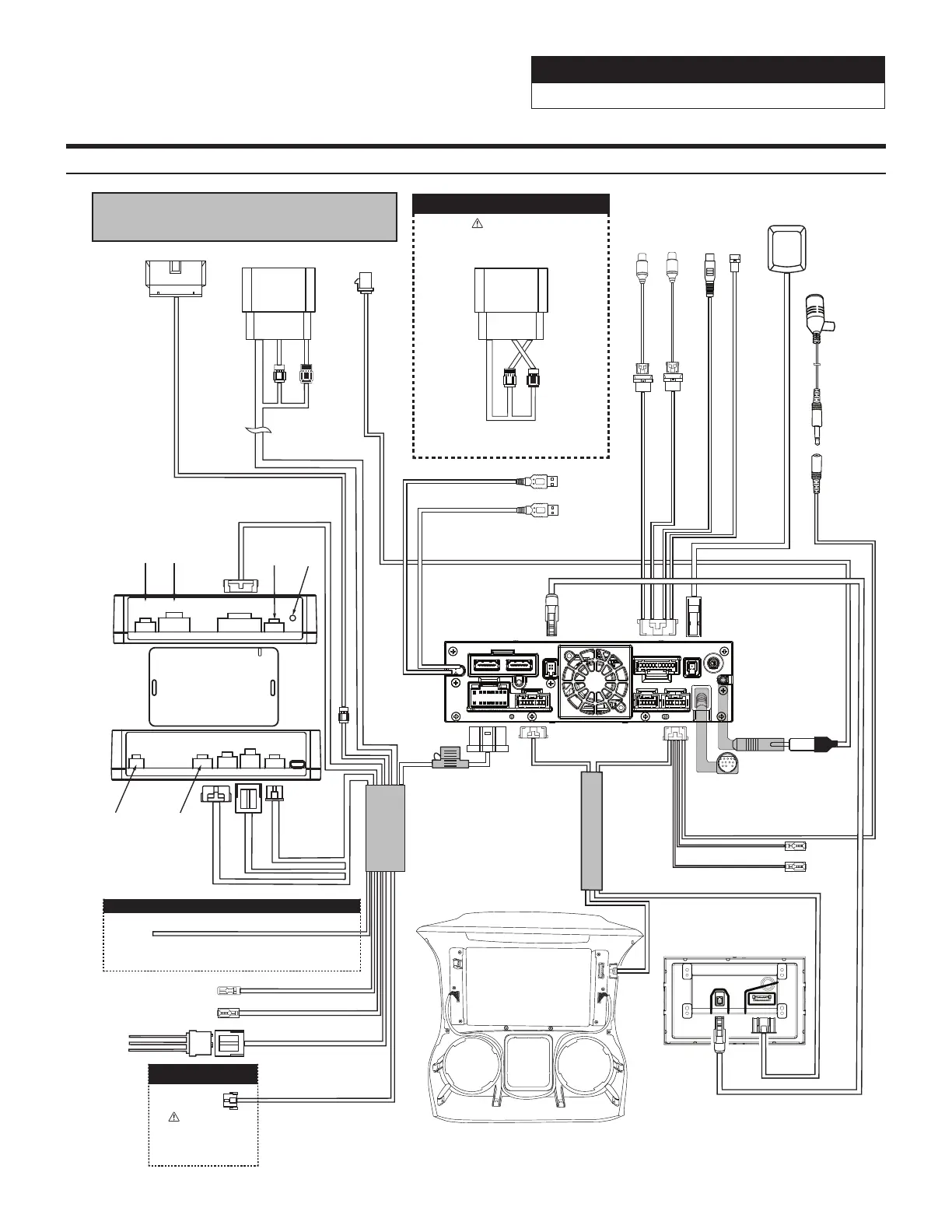

i509-WRA-JK Wiring Diagram
PREOUT
USB
CAMERA
ANTENNA
MAIN
REMOTE
SXM
DISPLAY
EX KEY
GPS
OUT
IN
To Vehicle Connectors
Rear Camera Input
To SXM Tuner
See Page 10
Direct Camera Adapter
i509 Source Unit
Power Harness
i509 - Display
Front
Rear
Rear
Front
For factory amplified vehicles switch the
speaker connectors, front to rear and
rear to front.
AMPLIFIED VEHICLES
Failure to follow this procedure will
result in no audio from Navigation and
Bluetooth sources.
Microphone
WARNING!
iDatalink MAESTRO Module
18-pin Black
Connector
10-pin Green
Connector
(Vehicle signals)
3-pin Black
Connector
(Power)
4-pin Black
Connector
(Data)
Blue Power Antenna
Blue/White Amp Turn-on
AUX Power
3-pin Black Connector
Black - Ground
Yellow -12V+
Red - Acc 12V+
To OBDII Connector
Power/Speaker
16-pin Green Connector
Front
Rear
Rear
Front
Rear View Camera
6-pin Black Connector
White/Gray Manual Transmission Reverse Input
For manual transmission vehicles ONLY. Connect the
White/Gray wire to the White/Gray wire located
on the passenger side kick panel.
Rear View Camera
WARNING!
The use of this connection
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
MANUAL TRANSMISSION VEHICLES
18-PinChime10-Pin
Red
Not
Used
Reset
Button
3-Pin 4-Pin 3-Pin 4-Pin10-Pin
Blue
Not
Used
Not
Used
If using
HCE-TCAM1-WRA
see page 17
Main Harness
Rear
Not
Used
Not
Used
Front Camera Input
Direct Camera Adapter
GPS
Antenna
Antenna
Connection
AUX Remote Out
HDMI Remote Out
Dash Cam Video In
Dash Cam Data
Black (Data) USB
Gray (Charging Only) USB
USB’s get ran to where you want to plug in
at in the vehicle. OEM and flush mount adapters
may cause issues. Plug directly into the extension.
To Dash Cam
See Page 10
To Optional
Cameras
Display Power/Key Harness
To Next Page
