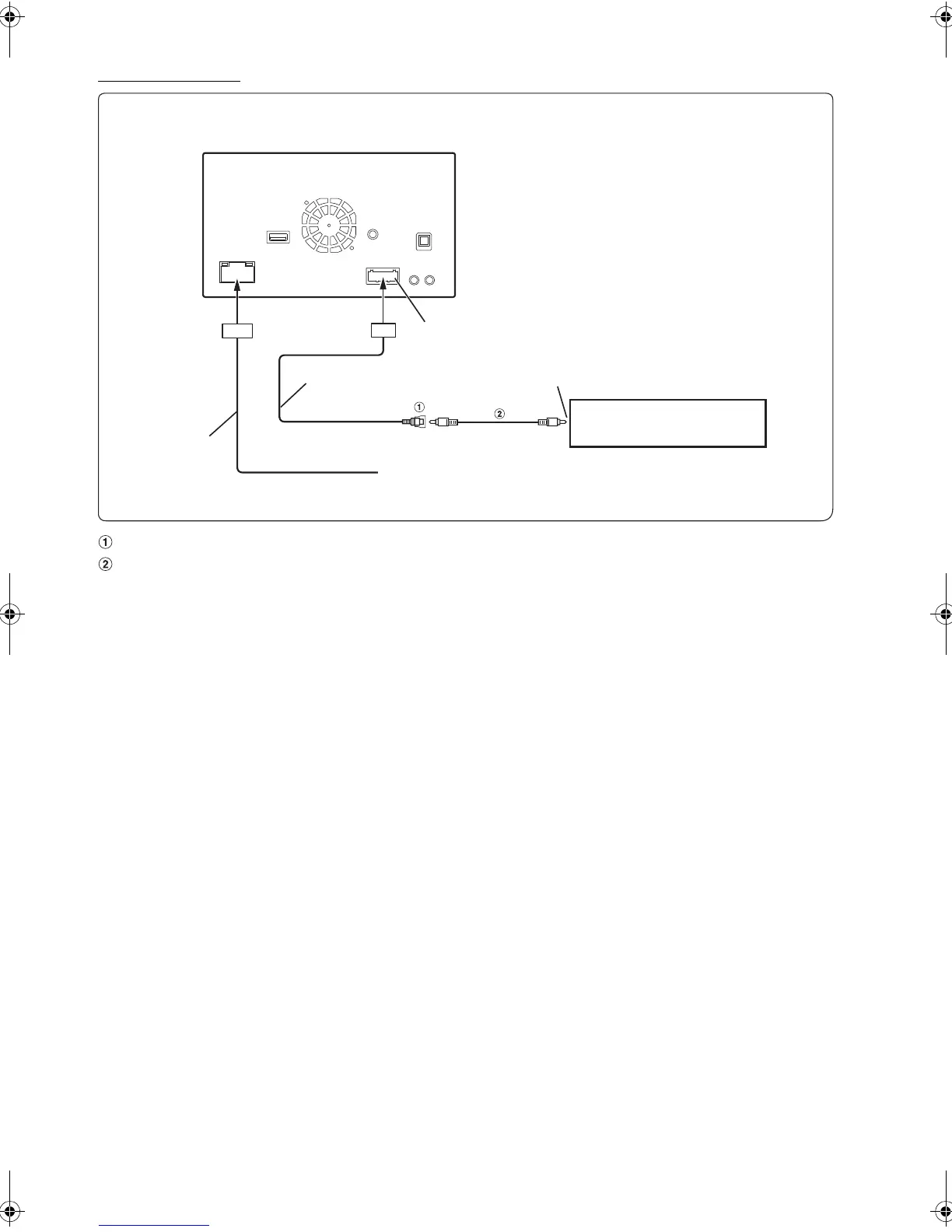

Connection of camera
CAMERA Input RCA Connector (CAMERA)
RCA Extension Cable (sold separately)
(Yellow)
Camera with RCA video output (sold
separately)
HCE-C105, etc.
CAMERA/AUX/PRE OUT Connector
CAMERA/AUX/PRE OUT cable
Power Supply Connector
(Orange/White)
Reverse Lead
Connect to the plus side of the
car’s reverse lamp.
