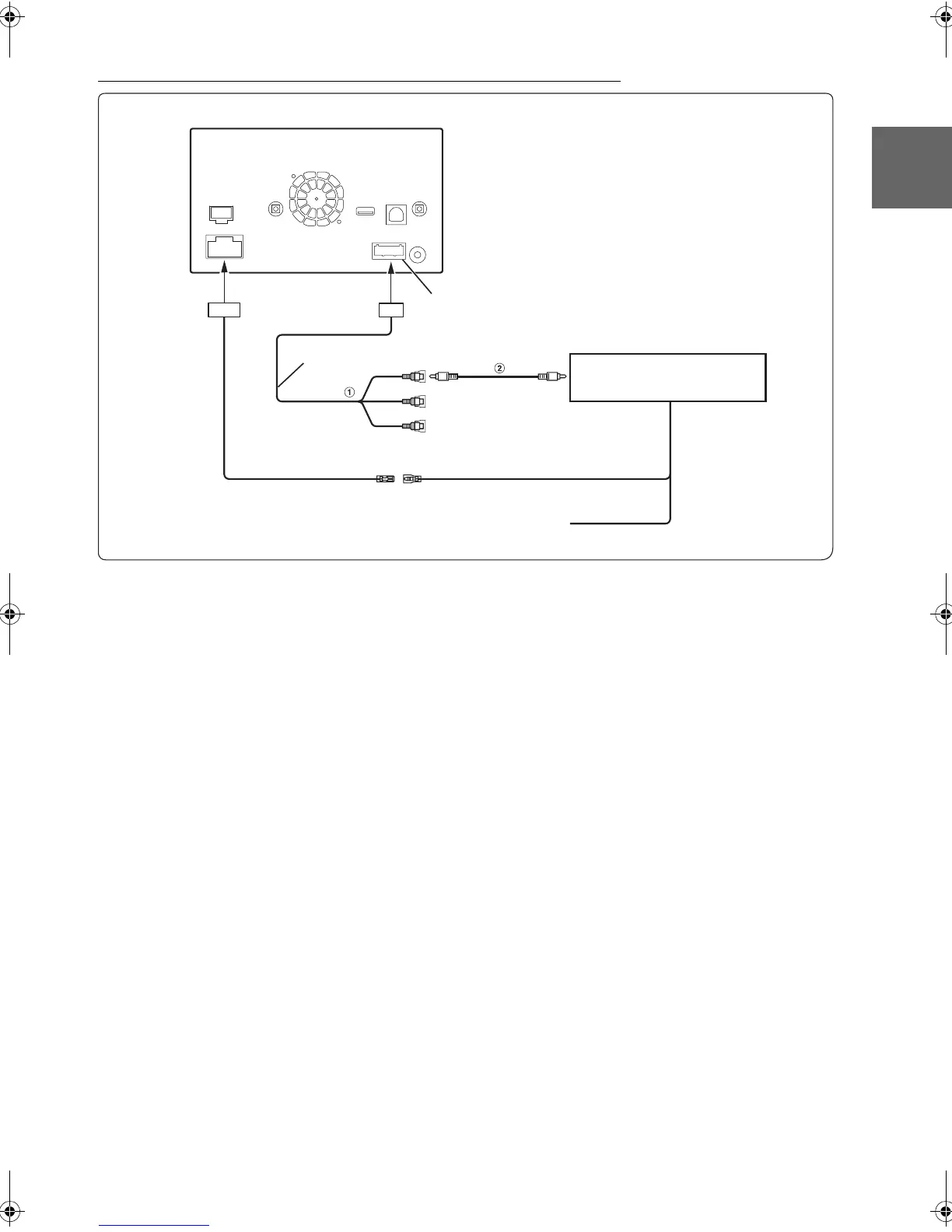

Connection of cameras (HCE-C212F + HCE-C210RD or HCE-C200F + HCE-C200R)
1 Video/Audio Input Connectors (AUX INPUT)
2 RCA Extension Cable (sold separately)
• When the screen switches from the front view camera image to the Navigation screen, the location of your vehicle may not be displayed correctly.
AUX/PRE OUT Connector
REVERSE
To plus side of the back lamp
signal lead of the car.
(Yellow)
(Red)
Control Unit
To Video Output Terminal
AUX/PRE OUT Cable
(White)
(Orange/White)
Camera Control Lead
(Orange/Black)
