Tear Down: Dash Panel

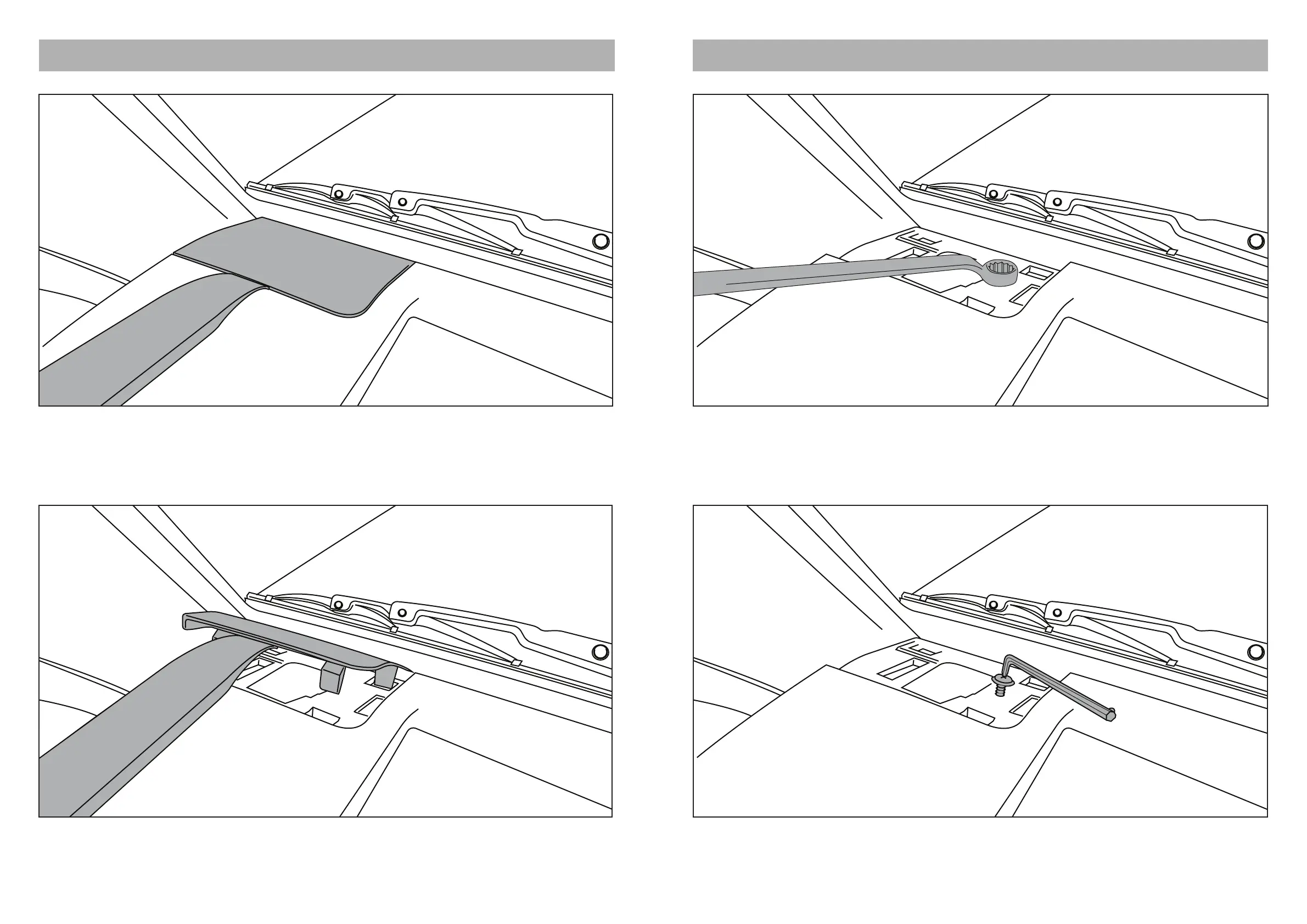

Take a trim removal tool and carefully pry it underneath the dash panel.
There are several clipping points so rm pressure will need to be applied to release
the panel. It is recommended to lever from the front.
21
22
Tear Down: Dash Panel
There is a Hex Bolt below the panel. Remove using 8mm ring spanner as shown.
Replace using supplied hex screw.
