Alpine LC70-69P - Front Exocasing Assembly; Secure Speaker and Insert Plugs; Secure Exocasing to Door Card; Mount Front USBs in Exocasing

45 46
Assembly: Front Exocasing

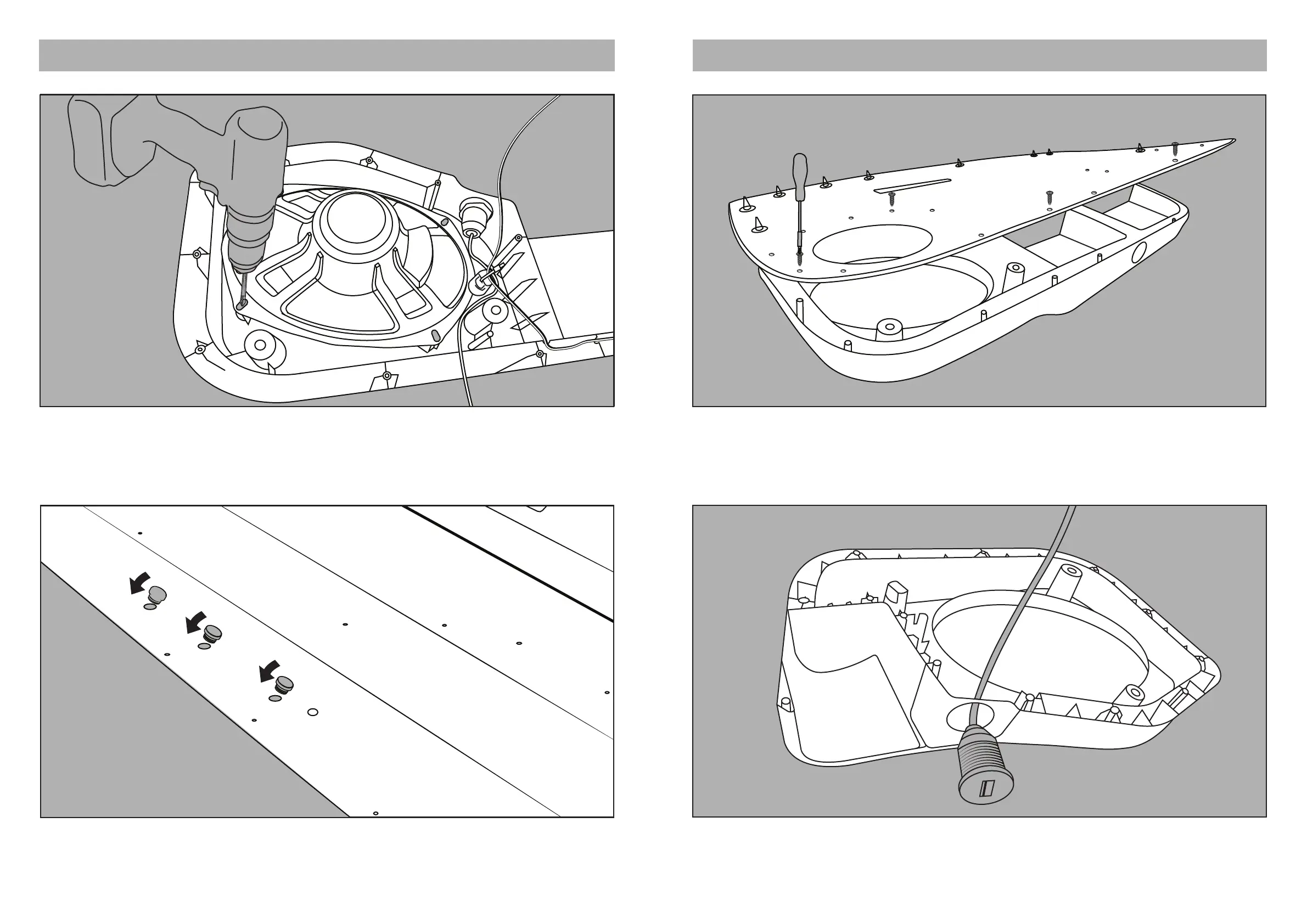

With the speaker seated use your drill and PZ2 bit to carefully drive the supplied
Exocasing screws in.
69
Take the provided rubber plugs and place them into the 9mm holes you drill earlier.
70
Assembly: Front Exocasing
Mount the USB’s in the exocasing, run the cable outside in leaving the usb loosely
near the mounting area.
With your door cards and Front exocasing complete. Secure exocasing to card using
supplied mounting screws.
71
72
