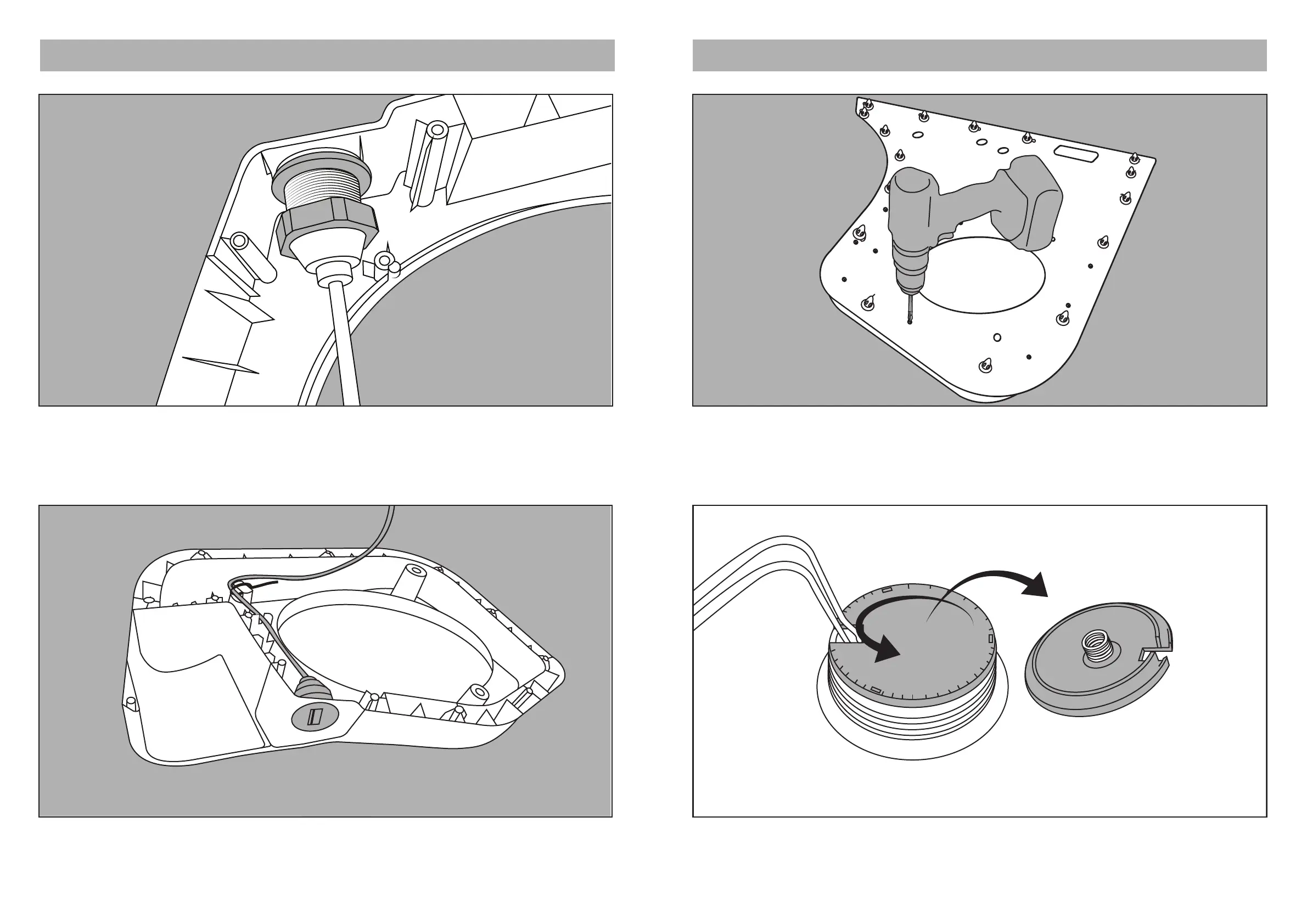

Assembly: Rear Exocasing
Before remounting the rear exocasing. Secure the USB wires on the indicated boss
with a zip tie. Feed the excess wiring out the speaker hole of the card.
Then take the plastic washer and plastic nut and run them up to the mounting surface.
Try to keep the usb hole perpendicular to the pod.
73
74
Assembly: Rear Exocasing
With your rear door cards and rear exocasing complete. Place the card over the door
pod and secure it to the card using the supplied mounting screws.
75
To assemble the tweeter panels. Start by taking your choice of Alpine Tweeter and
breaking down the assembly. This is done by twisting the back panel as indicated.
76
To Next Page
