Alpine PDX-M6 - Extension Cable; Extension Cable Connection Diagram

CH6551
CB8001
CH6501
(1)
(2)
MAIN-P.W.Board
SUB-P.W.Board
LED-P.W.Board
(1) 01E39992S01
(2) No Extension Cord needed.

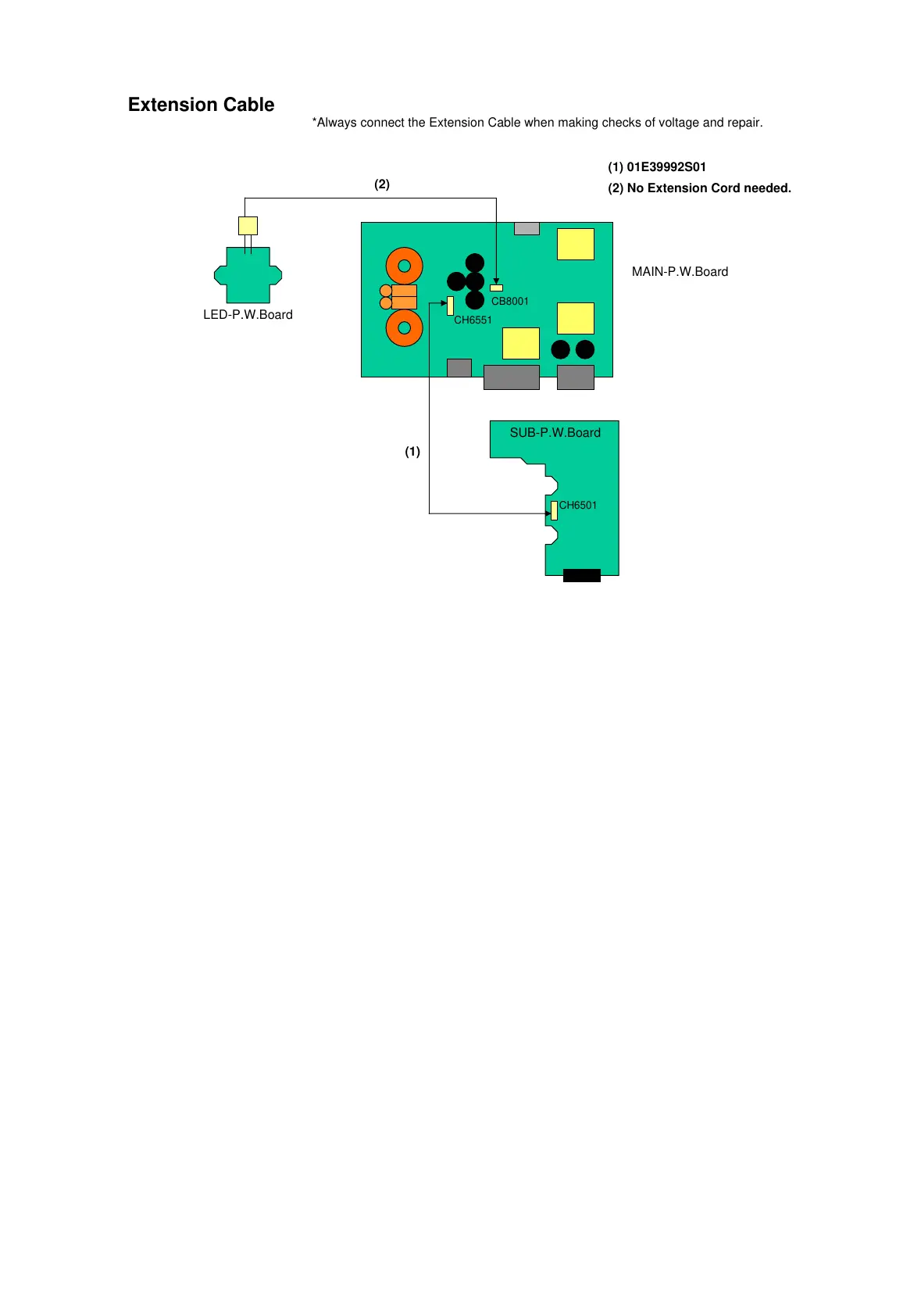

Extension Cable
*Always connect the Extension Cable when making checks of voltage and repair.
