Alpine PDX-M6 Service Manual

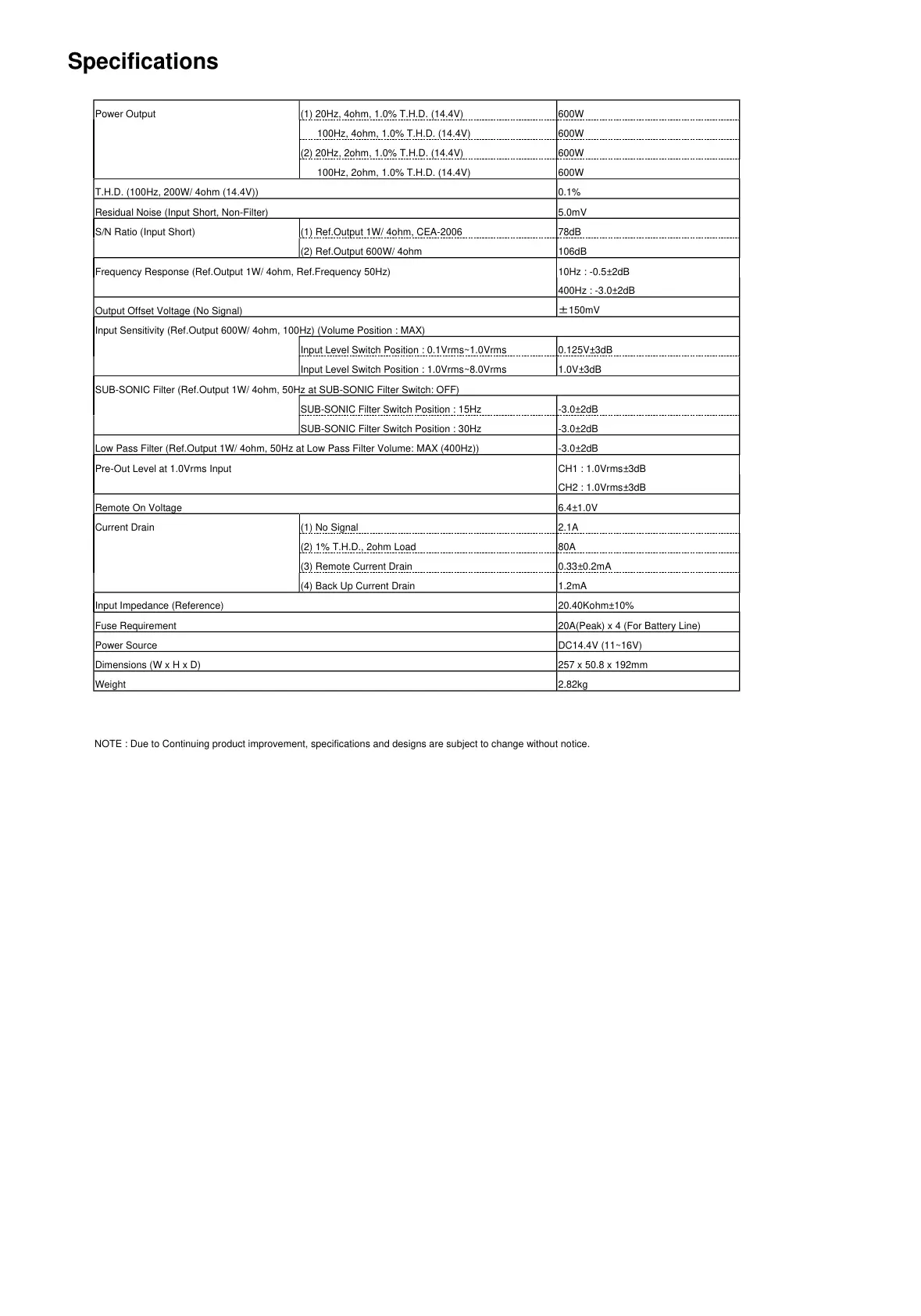

Specifications
Power Output
(
1
)
20Hz, 4ohm, 1.0% T.H.D.
(
14.4V
)
600W
100Hz, 4ohm, 1.0% T.H.D.
(
14.4V
)
600W
(
2
)
20Hz, 2ohm, 1.0% T.H.D.
(
14.4V
)
600W
100Hz, 2ohm, 1.0% T.H.D.
(
14.4V
)
600W
T.H.D.
(
100Hz, 200W/ 4ohm
(
14.4V
))
0.1%
Residual Noise
(
Input Short, Non-Filter
)
5.0mV
S/N Ratio
(
Input Short
)
(
1
)
Ref.Output 1W/ 4ohm, CEA-2006 78dB
(
2
)
Ref.Output 600W/ 4ohm 106dB
Frequenc
y
Response
(
Ref.Output 1W/ 4ohm, Ref.Frequenc
y
50Hz
)
10Hz : -0.5±2dB
400Hz : -3.0±2dB
Output Offset Volta
g
e
(
No Si
g
nal
)
±150mV
Input Sensitivit
y
(
Ref.Output 600W/ 4ohm, 100Hz
)
(
Volume Position : MAX
)
Input Level Switch Position : 0.1Vrms~1.0Vrms 0.125V±3dB
Input Level Switch Position : 1.0Vrms~8.0Vrms 1.0V±3dB
SUB-SONIC Filter
(
Ref.Output 1W/ 4ohm, 50Hz at SUB-SONIC Filter Switch: OFF
)
SUB-SONIC Filter Switch Position : 15Hz -3.0±2dB
SUB-SONIC Filter Switch Position : 30Hz -3.0±2dB
Low Pass Filter
(
Ref.Output 1W/ 4ohm, 50Hz at Low Pass Filter Volume: MAX
(
400Hz
))
-3.0±2dB
Pre-Out Level at 1.0Vrms Input
CH1 : 1.0Vrms±3dB
CH2 : 1.0Vrms±3dB
Remote On Volta
g
e 6.4±1.0V
Current Drain
(
1
)
No Si
g
nal 2.1A
(
2
)
1% T.H.D., 2ohm Load 80A
(
3
)
Remote Current Drain 0.33±0.2mA
(
4
)
Back Up Current Drain 1.2mA
Input Impedance
(
Reference
)
20.40Kohm±10%
Fuse Requirement
20A
(
Peak
)
x 4
(
For Batter
y
Line
)
Power Source DC14.4V
(
11~16V
)
Dimensions
(
W x H x D
)
257 x 50.8 x 192mm
Wei
g
ht 2.82k
g
NOTE : Due to Continuin
g
product improvement, specifications and desi
g
ns are sub
j
ect to chan
g
e without notice.
All manuals and user guides at all-guides.com

Alpine PDX-M6 Specifications

General

Amplifier class	D
Input sensitivity	1000 mV
Signal-to-Noise Ratio (SNR)	95 dB
Number of amplifier channels	1 channels
RMS power output per channel (2 Ohm)	600 W
Frequency response	5 Hz
Product color	Black
