11
ALPINE PMX-F640 68-10872Z46-A (EN/FR/ES)
EspañolFrançaisEnglish
LR
LR
FL FR RR RL

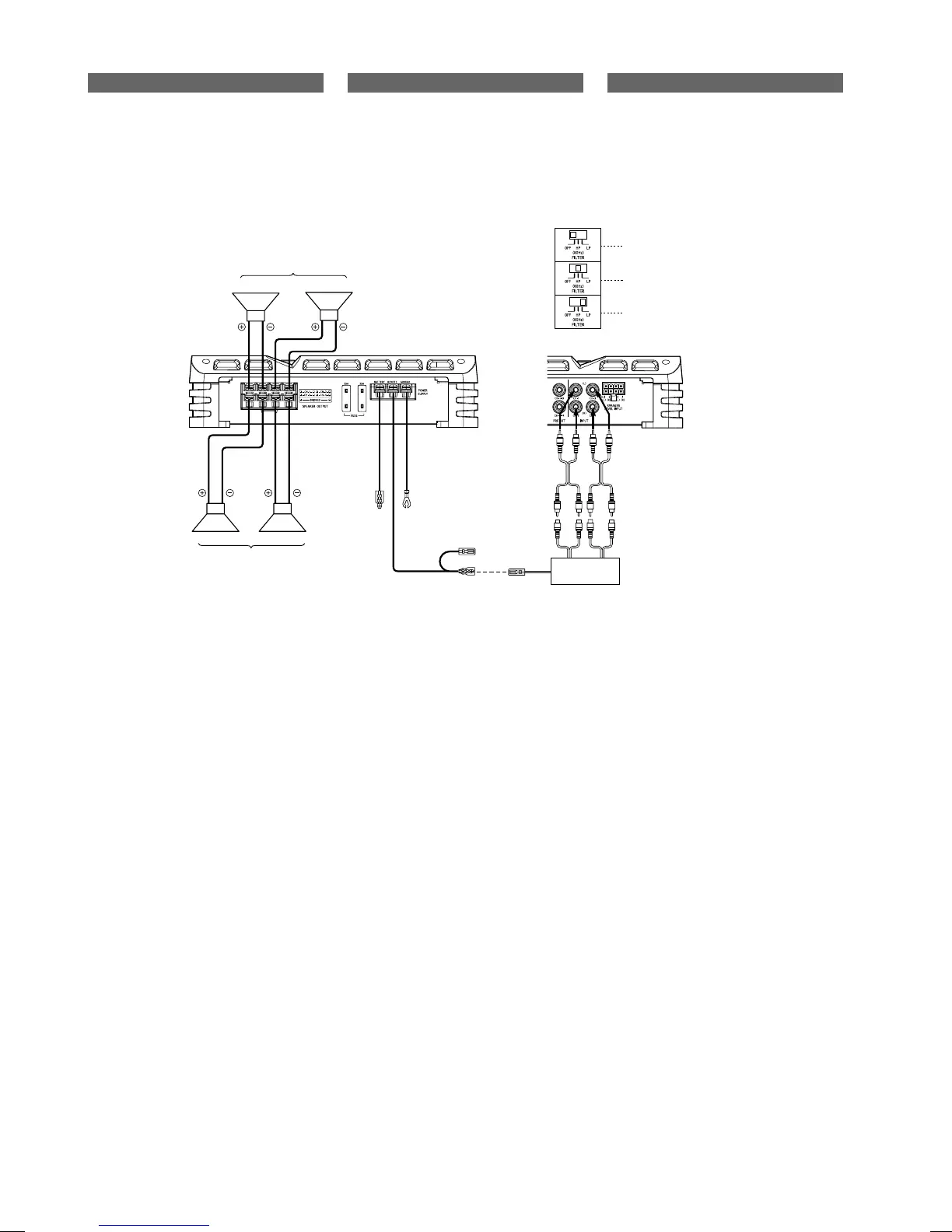

SYSTEM DIAGRAMS
TYPICAL SYSTEM CONNECTIONS
Full Range/Pleine bande/Pleno alcance
High Pass/Passe-haut/Paso alto
Low Pass/Passe-bas/Paso bajo
(Right side/
Côté droit/
Lado derecho)
(Left side/
Côté gauche/
Lado izquierdo)
3 Ground Lead (Sold Separately)
4 Remote Turn-On Lead (Sold Separately)
5 Battery Lead (Sold Separately)
- Y-Adaptor (Sold Separately)
. RCA Extension Cable
(Sold Separately)
/ Front
: Rear
; Rear Speakers
< Front Speakers
= Speakers
> Head Unit, etc.
? Other AMP
3 Conducteur de mise à la terre (vendu
séparément)
4 Conducteur de mise sous tension télécom-
mandée (vendu séparément)
5 Conducteur de la batterie (vendu
séparément)
- Adaptateur en forme de « Y »
(vendu séparément)
. Câble de rallonge RCA
(vendu séparément)
/ Avant
: Arrière
; Haut-parleurs arrière
< Haut-parleurs avant
= Haut-parleurs
> Unité principale, etc.
? Autre amplificateur
3 Cable de tierra (vendido separadamente)
4 Cable para encendido remoto (vendido
separadamente)
5 Cable de la batería (vendido
separadamente)
- Adaptador en forma de “Y”
(vendido separadamente)
. Cable de extensión RCA
(vendido separadamente)
/ Delantero
: Trasero
; Altavoces traseros
< Altavoces delanteros
= Altavoces
> Unidad principal, etc.
? Otro amplificador
Fig. 6
>
<
53
4
:
.
;
/
DIAGRAMMES DU
SYSTÈME
CONNEXIONS TYPIQUES DU
SYSTÈME
DIAGRAMAS DEL
SISTEMA
CONEXIONES TÍPICAS DEL
SISTEMA
