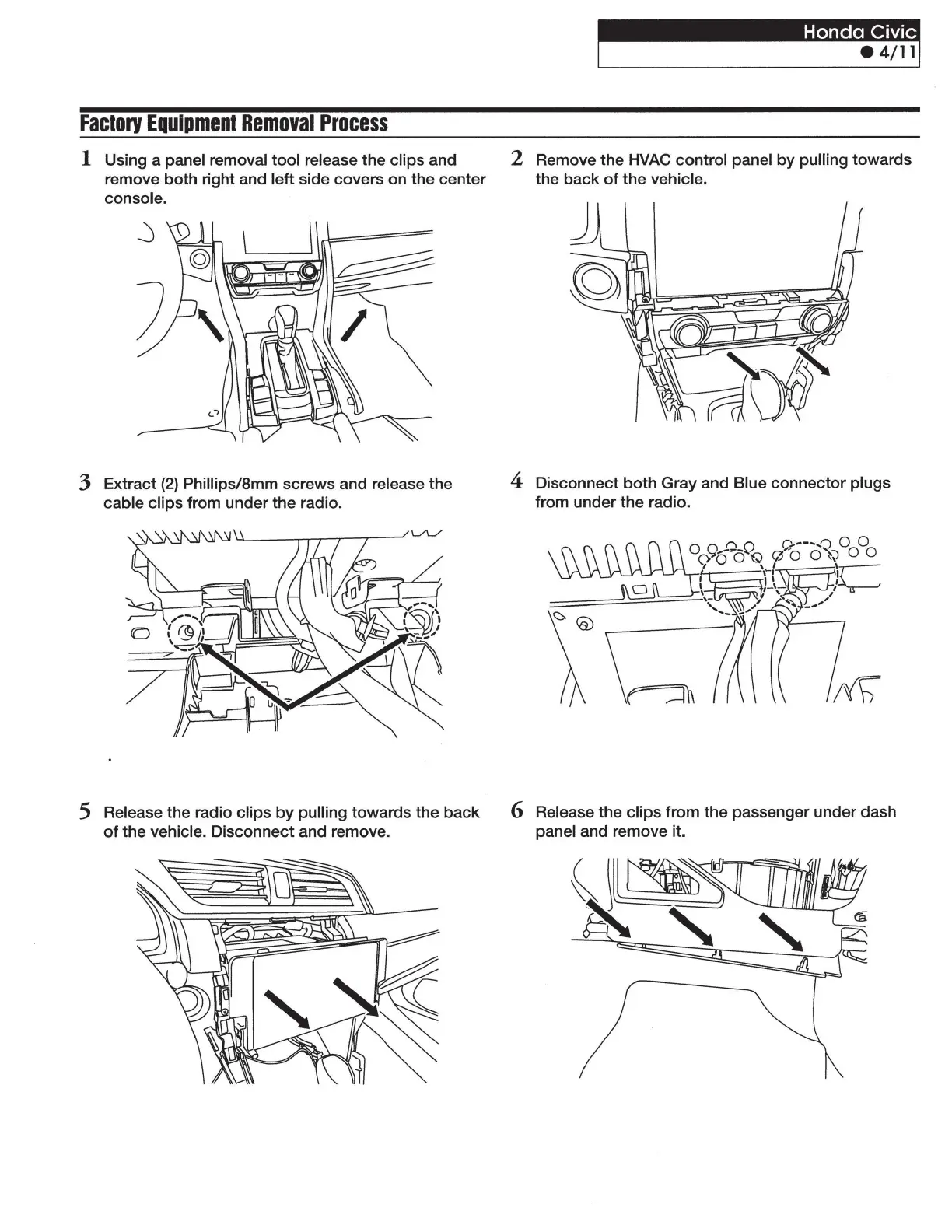

Factory Equipment Removal Process
1 Using a panel removal tool release the clips and
remove both right and left side covers on the center
console.
7
3 Extract (2) Phillips/8mm screws and release the
cable clips from under the radio.
5 Release the radio clips by pulling towards the back
of the vehicle. Disconnect and remove.
2 Remove the HVAC control panel by pulling towards
the back of the vehicle.
4 Disconnect both Gray and Blue connector plugs
from under the radio.
6 Release the clips from the passenger under dash
panel and remove it.
