4
Speaker+

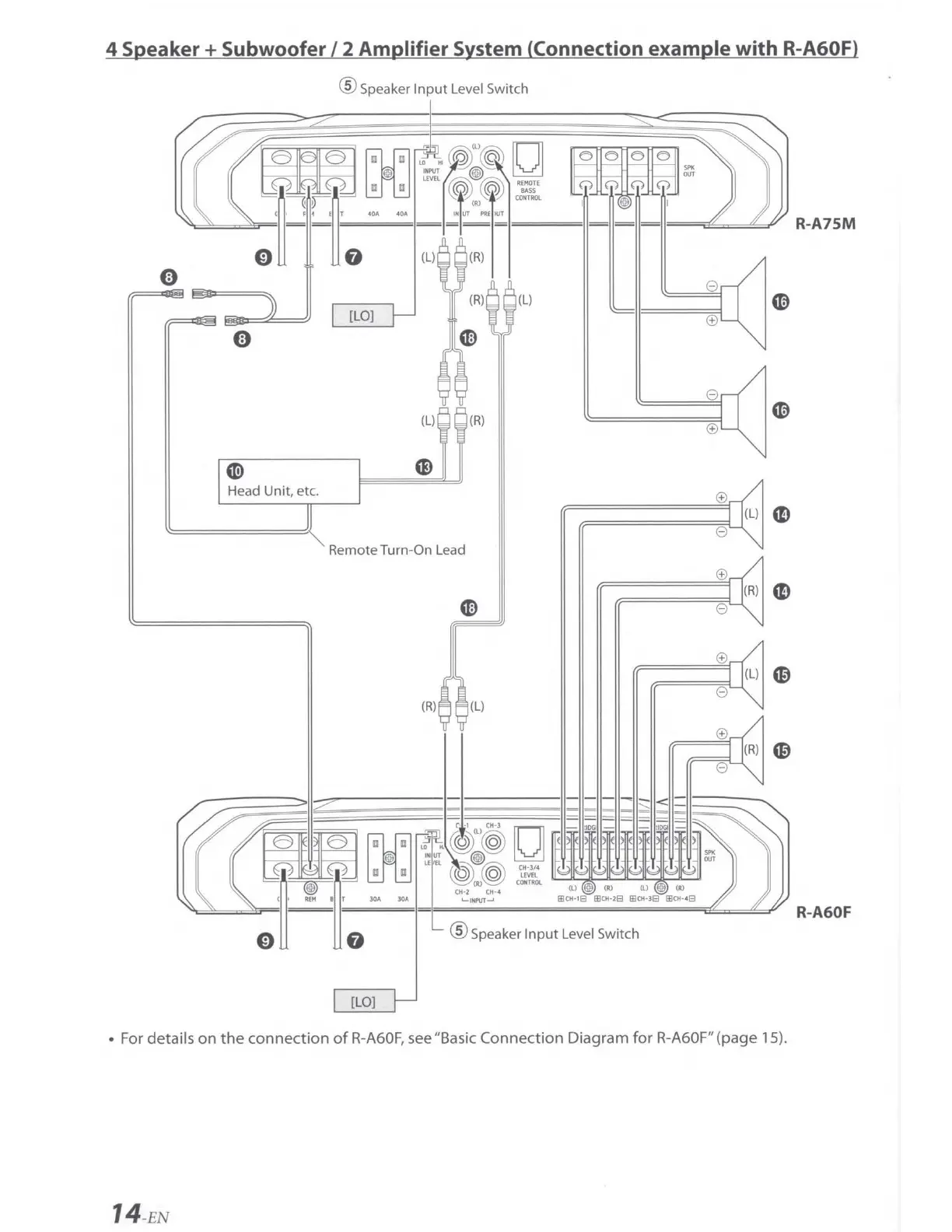

Subwoofer / 2 Amplifier System (Connection example
with
R-A60F}
® Speaker
Input
Level Switch
R-
A75M
~
Head
Unit
, etc.
Remote Turn-On Lead
(R)
(L)
R-A60F
[LO]
• For details
on
the
connection
of
R-
A60F,
see "Basic
Connection
Diagram
for
R-A60F" (page 15).
