38-EN

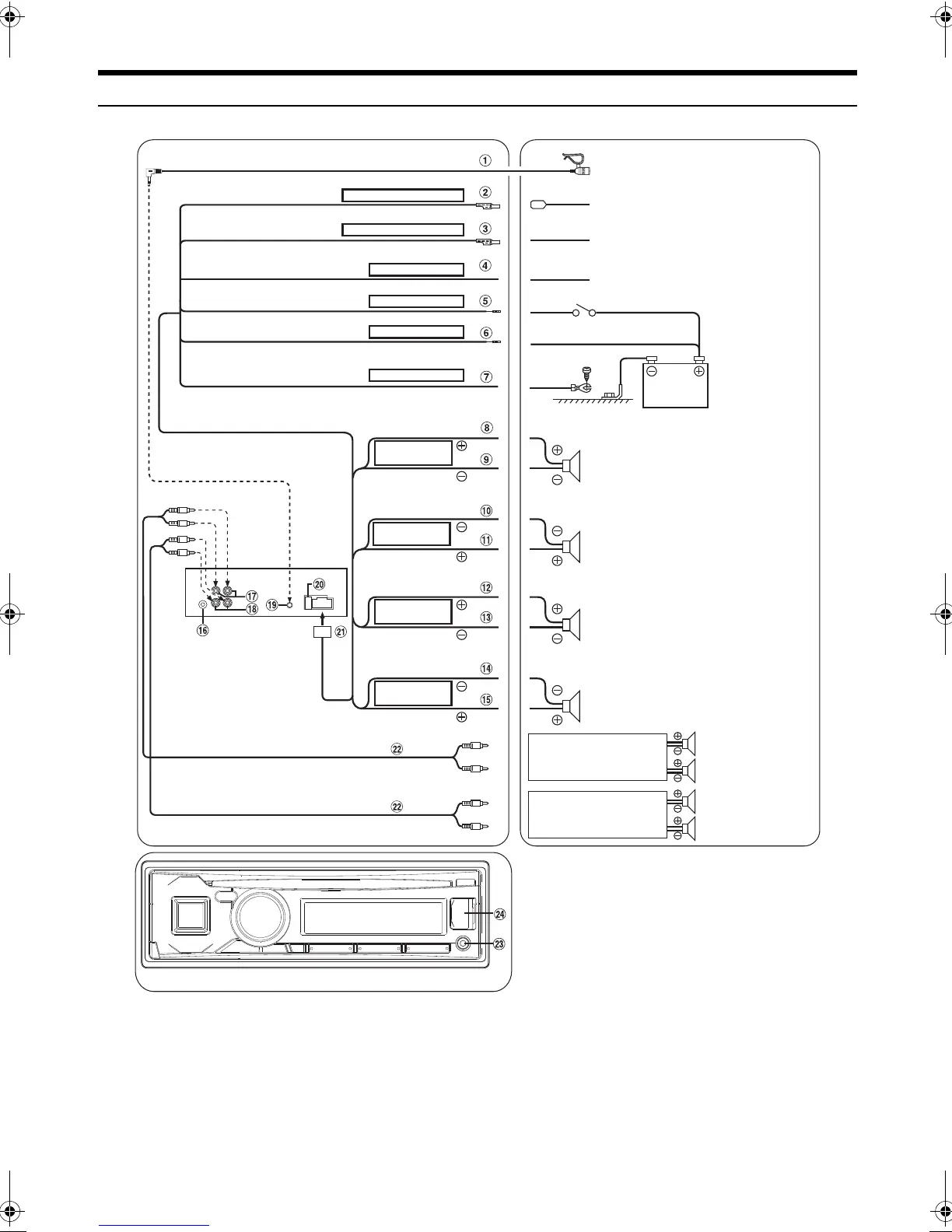

Connections
* When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 15.
POWER ANT
REMOTE TURN-ON
ILLUMINATION
IGNITION
BATTERY
GND
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
Microphone
To amplier
To power antenna
Not used
Ignition Key
(Blue/White)
(Red)
(Black)
(Blue)
Amplier
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Front
Rear or Subwoofers*
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
(Orange)
(Yellow)
The illustration is for CDE-143EBT/CDE-143EBTTH.
