12-EN

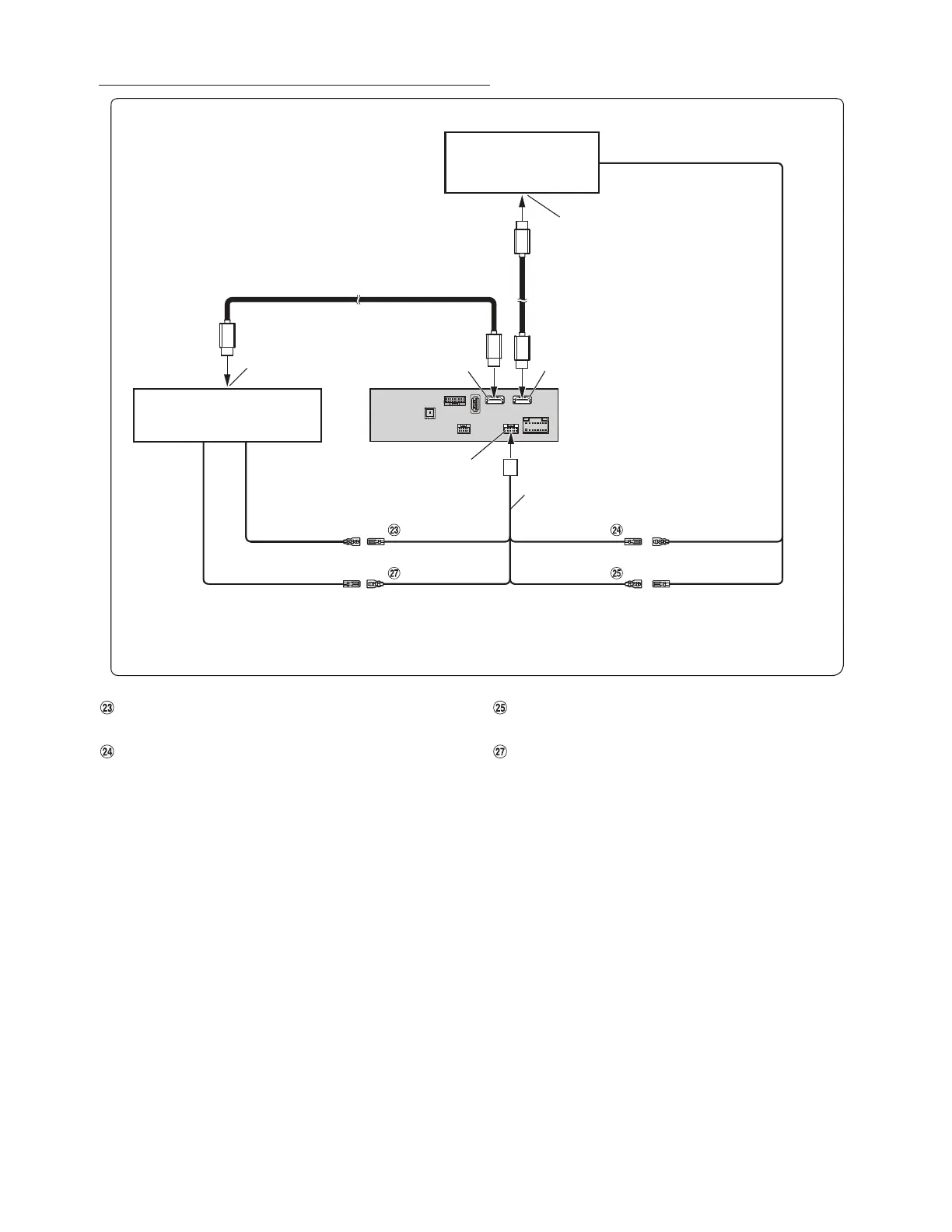

Connection of a DVE-5300 and a Rear Monitor with HDMI support
Remote Control Output Lead (Brown) (For DVD Plyer
DVE-5300)
Remote Control Output Lead (Brown) (For Rear Monitor)
Remote Control Input Lead (Brown/White) (For Rear
Monitor)
DVD Control Input Lead (Red/White) (For DVD Player
DVE-5300)
• Set the HDMI Setup to “DVD.” For details, refer to “HDMI Setup” in the OWNER’S MANUAL.
• If you connect an optional HDMI selector module, you can connect two HDMI devices. When you use the HDMI selector module, set the HDMI Selector
to “On.” For details, refer to “Setting the HDMI Selector On/Off” in the OWNER’S MANUAL. For details on how to connect, also refer to the OWNER’S
MANUAL of the HDMI selector module.
* When connecting an HDMI connection cable, be sure to secure it using the supplied HDMI Fixation Bracket. For details on how to secure it, see “Note on
using HDMI Connection Cables” (page 4).
HDMI output connector HDMI input connector*
DVE-5300 (sold separately)
HDMI input connector
Rear Monitor with HDMI
support
(sold separately)
HDMI connection cable
(sold separately)
W.REMOTE connector
HDMI connection cable (included with DVE-5300)
HDMI output connector*
REMOTE IN
(Brown)
DVD REMOTE
(Brown)
MON REMOTE
(Brown)
REMOTE IN
REMOTE OUTREMOTE IN
(Brown/White)
W.REMOTE cable
DVD STATUS IN
(Red/White)
REMOTE OUT
(Brown)
To Next Page
