pag. 27
MDE/C133 2561 001
MX3IPG2A

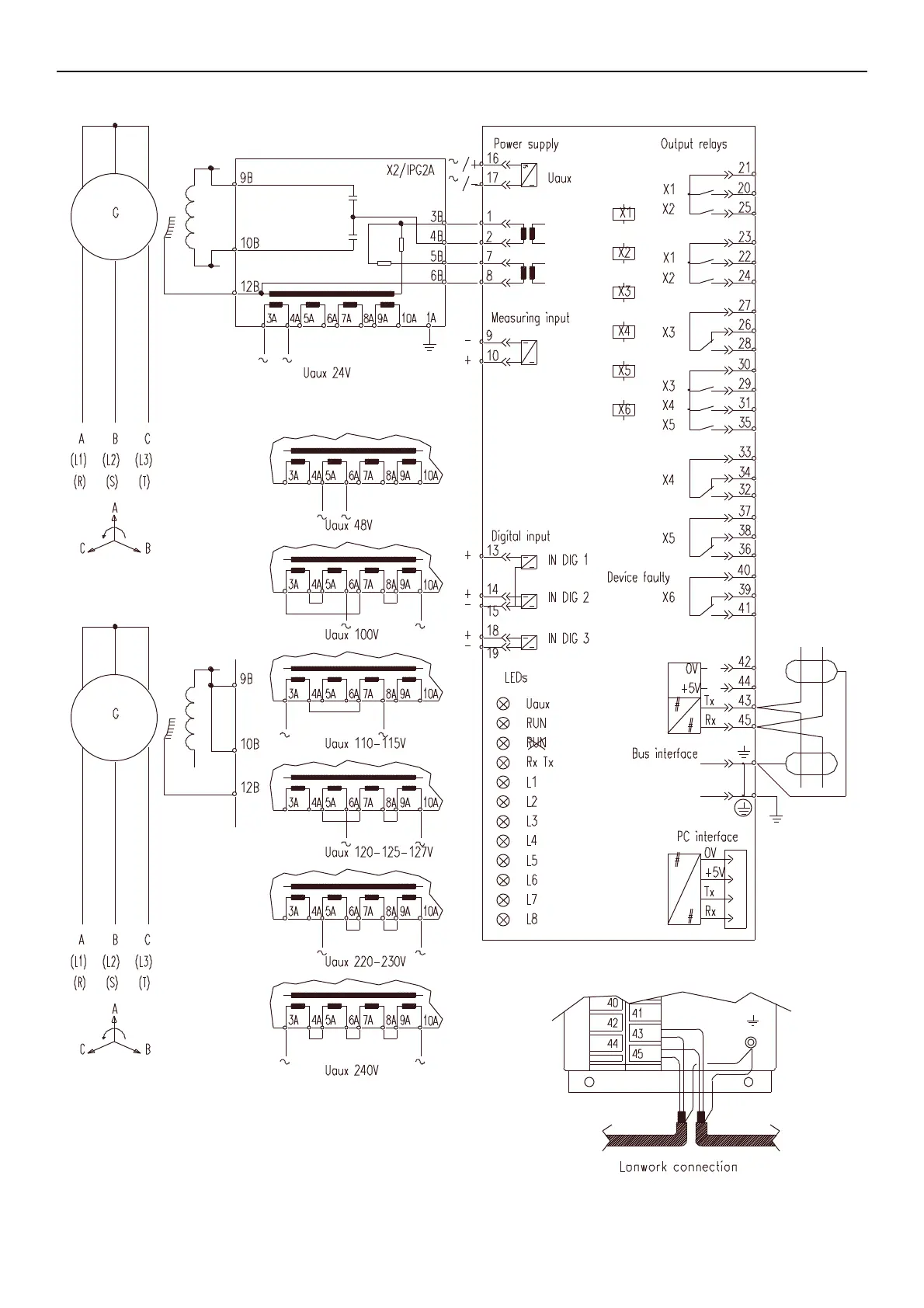

Warning:
In the event of one sole polarity of the rotor winding (BRUSHLESS
energizer) being available, the injectors (terminals 9B - 10B)
shall be connected to one another.
fig. 5
