Alto Professional TS310 - Example C: Two Loudspeakers + Two Extensions

7

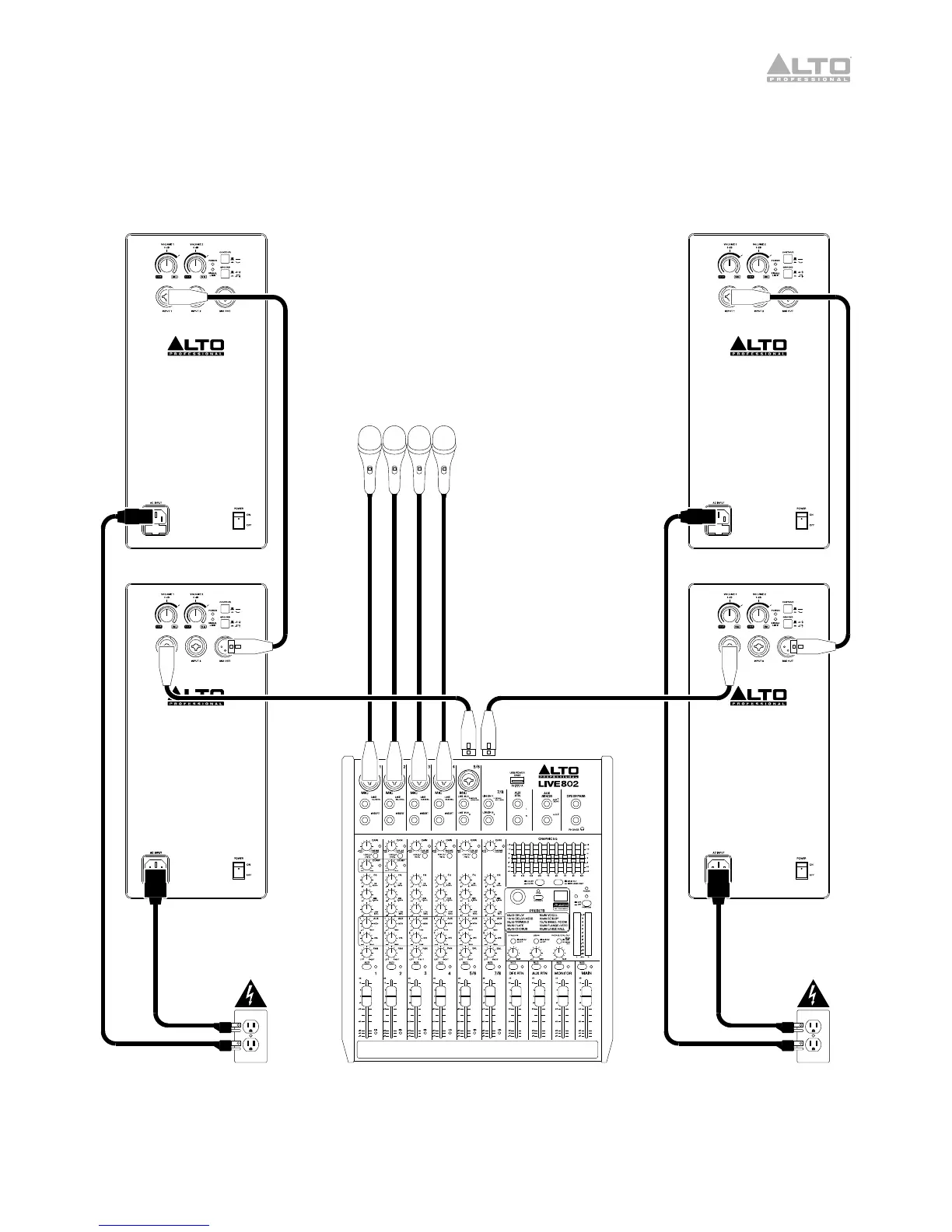

Example C: Two Loudspeakers + Two Extensions
Connect each of your mixer’s main outputs to Input 1 on each TS3 loudspeaker. Connect the Mix
Out of each TS3 loudspeaker to an input of each extension loudspeaker. Do not turn any of the
Volume knobs past the 0 dB position.
Microphones
Mixer Power OutletPower Outlet
Extension
Loudspeaker
Extension
Loudspeaker
