E L E C T R I C A L • 5 0 0 - S S E R I E S
V
OLTAGE PHASE CYCLE
/H
Z AMPS
kW C
ORD
& P
LUG INCLUDED
at 120 1 50/60 8.7 1.04 NEMA 5-15P,
15A-125V PLUG
at 208 1 50/60 3.77 0.78 NEMA 6-15P,
at 240 1 50/60 4.35 1.04 15A-250V
PLUG
(USA ONLY)
at 230 1 50/60 4.17 0.958 CEE 7/7,
220-230
V
PLUG

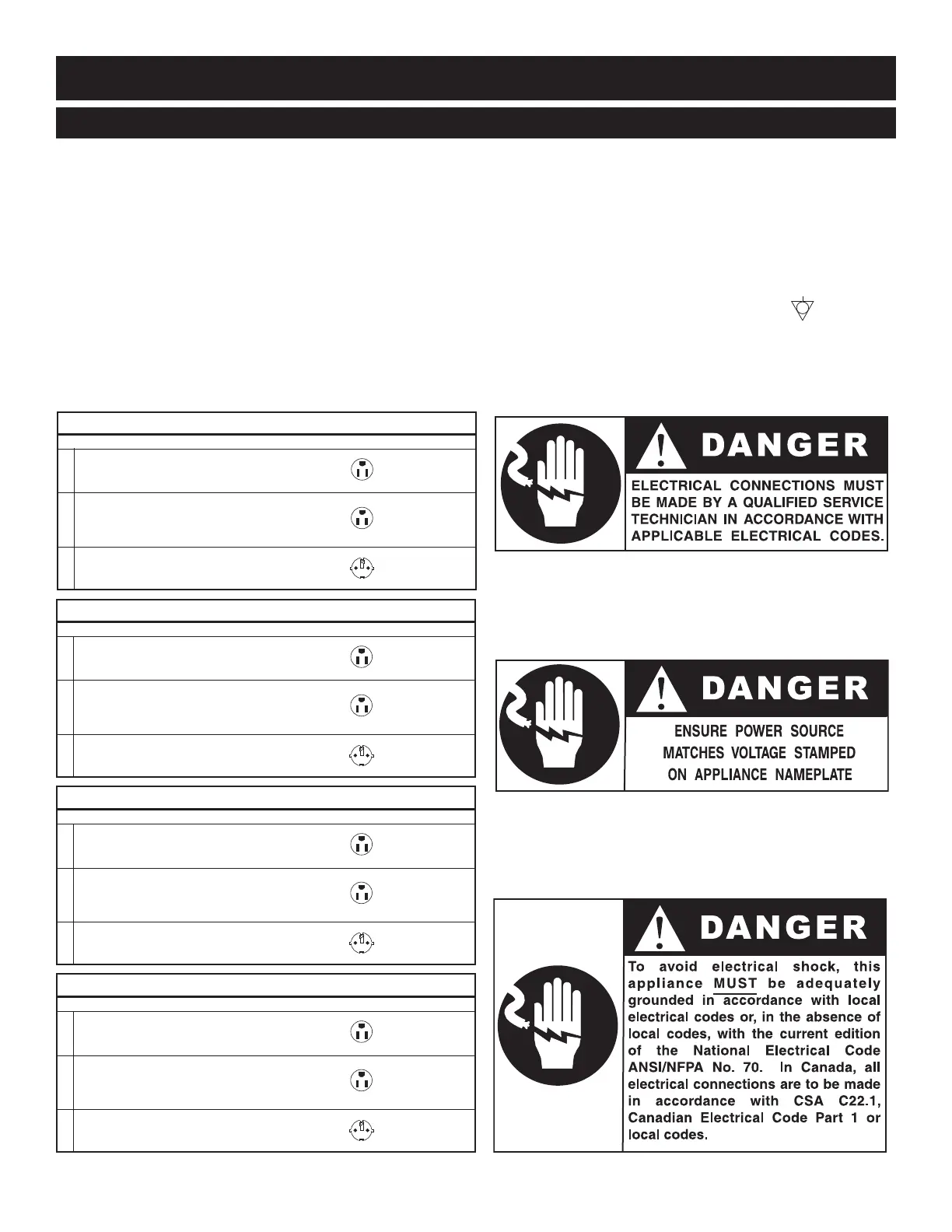

E L E C T R I C A L
I N S T A L L A T I O N
#823 • INSTALLATION/ OPERATION/ SERVICE MA NUAL • 10.
1. An identification tag is permanently mounted on
the cabinet.
2. Plug cabinet into a properly grounded receptacle
ONLY, positioning the unit so the power supply
cord is easily accessible in case of an emergency.
Arcing will occur when connecting or
disconnecting the unit unless all controls are in
the “OFF” position.
3. If necessary, a proper receptacle or outlet
configuration as required for this unit, must be
installed by a licensed electrician in accordance
with applicable, local electrical codes.
For 230V:
To prevent an electrical shock hazard between the
a
ppliance and other appliances or metal parts in
close vicinity, an equalization-bonding stud is
provided. An equalization bonding lead must be
connected to this stud and the other appliances /
metal parts to provide sufficient protection
against potential difference. The terminal is
marked with the following symbol.
NOTE:
The appliance must be connected to an electrical
circuit that is protected by an external GFCI outlet.
120
208-240
230
E L E C T R I C A L • 7 5 0 - S S E R I E S
V
OLTAGE PHASE CYCLE
/H
Z AMPS
kW C
ORD
& P
LUG INCLUDED
at 120 1 60 9.2 1.11 NEMA 5-15P,
15A-125V PLUG
at 208 1 50/60 3.99 0.83 NEMA 6-15P,
at 240 1 50/60 4.61 1.10 15A-250V PLUG
(USA ONLY)
at 230 1 50/60 4.41 1.02 CEE 7/7,
220-230
V PLUG
120
208-240
230
E L E C T R I C A L • 1 0 0 0 - S S E R I E S
VOLTAGE PHASE CYCLE/HZ AMPS kW CORD & PLUG INCLUDED
at 120 1 60 8.6 1.04 NEMA 5-15P,
15A-125V PLUG
at 208 1 50/60 3.9 0.82 NEMA 6-15P,
at 240 1 50/60 4.5 1.1 15A-250V PLUG
(USA ONLY)
at 230 1 50/60 4.1 0.95 CEE 7/7,
220-230
V PLUG
120
208-240
230
E L E C T R I C A L • 1 2 0 0 - S S E R I E S
VOLTAGE PHASE CYCLE/HZ AMPS kW CORD & PLUG INCLUDED
at 120 1 60 8.6 1.02 NEMA 5-15P,
15A-125V PLUG
at 208 1 50/60 3.7 0.77 NEMA 6-15P,
at 240 1 50/60 4.2 1.02 15A-250V PLUG
(USA ONLY)
at 230 1 50/60 4.1 0.94 CEE 7/7,
220-230
V PLUG
120
208-240
230
