#8405 — QUICKCHILLER INSTALLATION, OPERATION, AND MAINTENANCE
Pg. 5.
A 1/2" I.D. (12,7mm) PVC pipe is furnished with
each QC-50 and QC-100 model. Use PVC glue to
attach the pipe into the drain opening at the rear of
the unit. Insert the PVC pipe into the drain opening
with a 1/4" (6mm) clockwise turn. Connect the PVC
pipe to discharge through an indirect waste pipe into
an open-site drain by means of a 2" (51mm) air gap.
Connection must be within 10' (3m) of the unit.
NOTE: In the U.S.A., this equipment is to be
installed to comply with the Basic Plumbing
Code of the Building Officials and Code
Administrators International, Inc. [BOCA],
and the Food Service Sanitation Manual of
the Food & Drug Administration [FDA].
WAT E R D R A I N A G E
D R A I N A G E :
Q C - 3 Q C - 2 0 Q C - 4 0
EVAPORATOR PANS: NO INSTALLATION REQUIRED
Q C - 5 0 Q C - 1 0 0

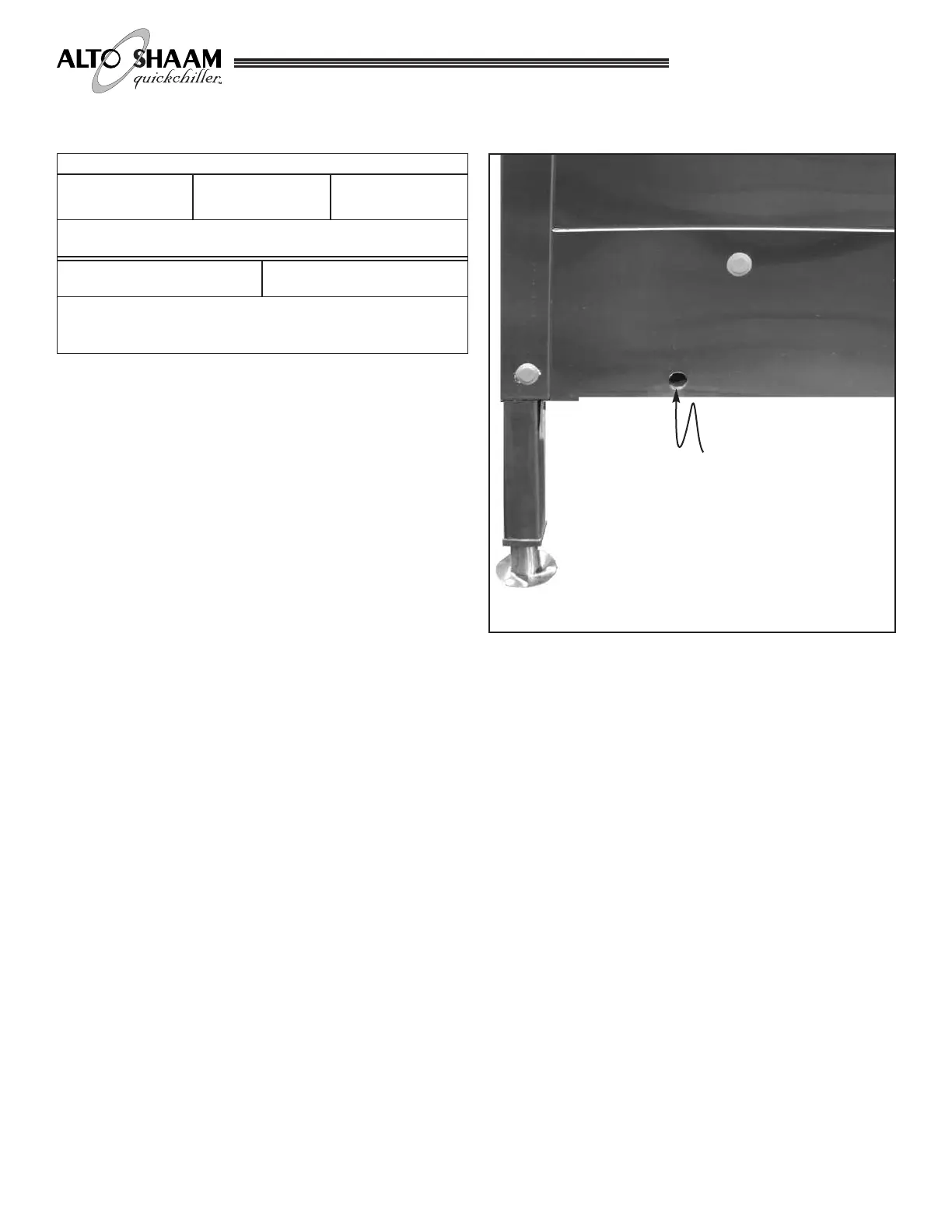

ONE (1) FLOOR DRAIN:
1/2" (12,7mm) DIAMETER
DRAIN OPENING
AT REAR
