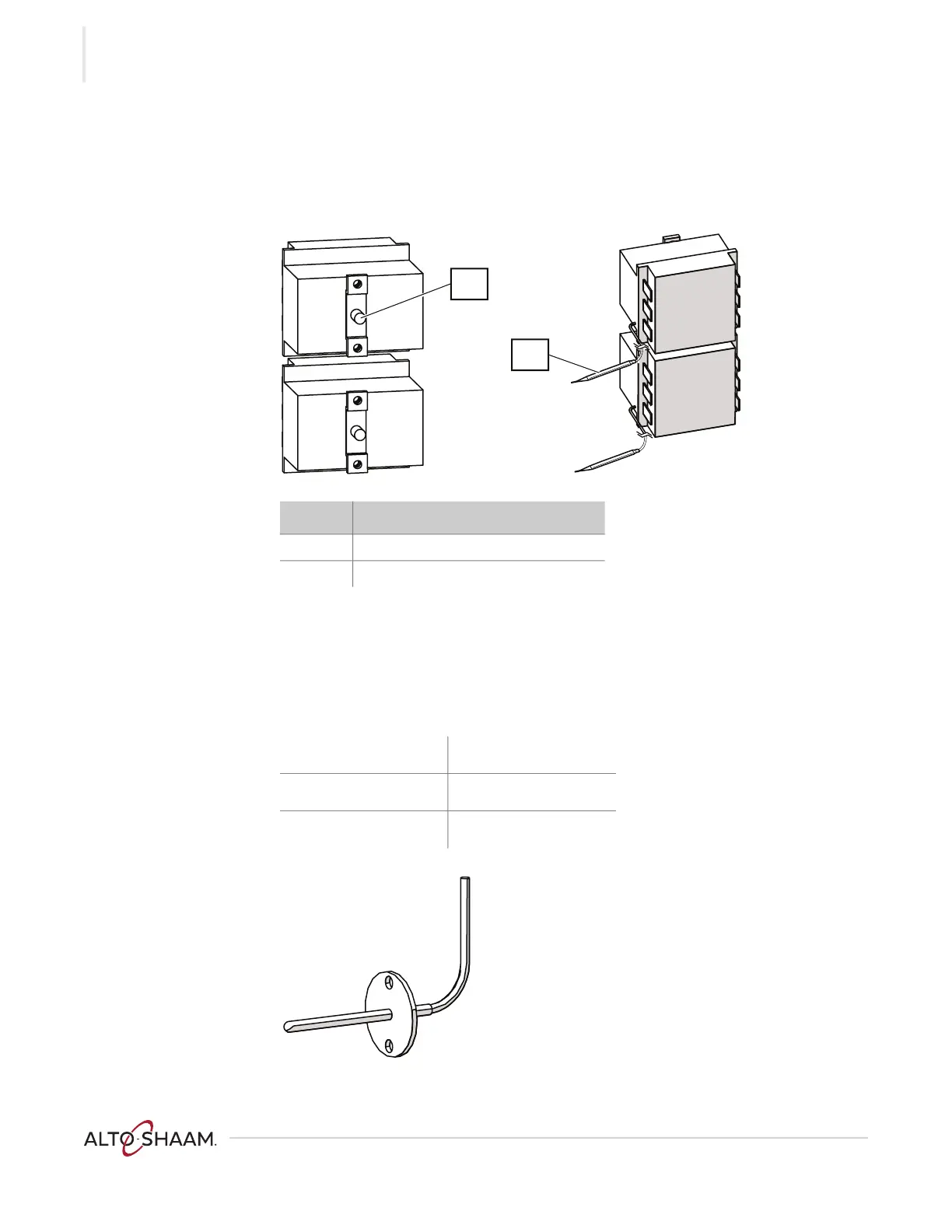

High Limit Switches
Resettable
Contacts open at 572°F (300°C)
Chamber Air Temperature Probe
K Type Thermocouple
Ref. Description
1 Reset button
2 Temperature bulb
11
11
21
21
31
31
12
12
22
22
32
32
VMC-PHD-001987
1
2
100°C 4.096 MV 100°F 1.521 MV
200°C 8.138 MV 200°F 3.820 MV
300°C 12.209 MV 300°F 6.094 MV
VMC-PHD-001991
