INSTALLATION
Vecto r H® S eries ▪ Operat or’s M anual ▪ M N-46 2 95 ▪ Rev 7 ▪ 6/22
49
Continued from previous page

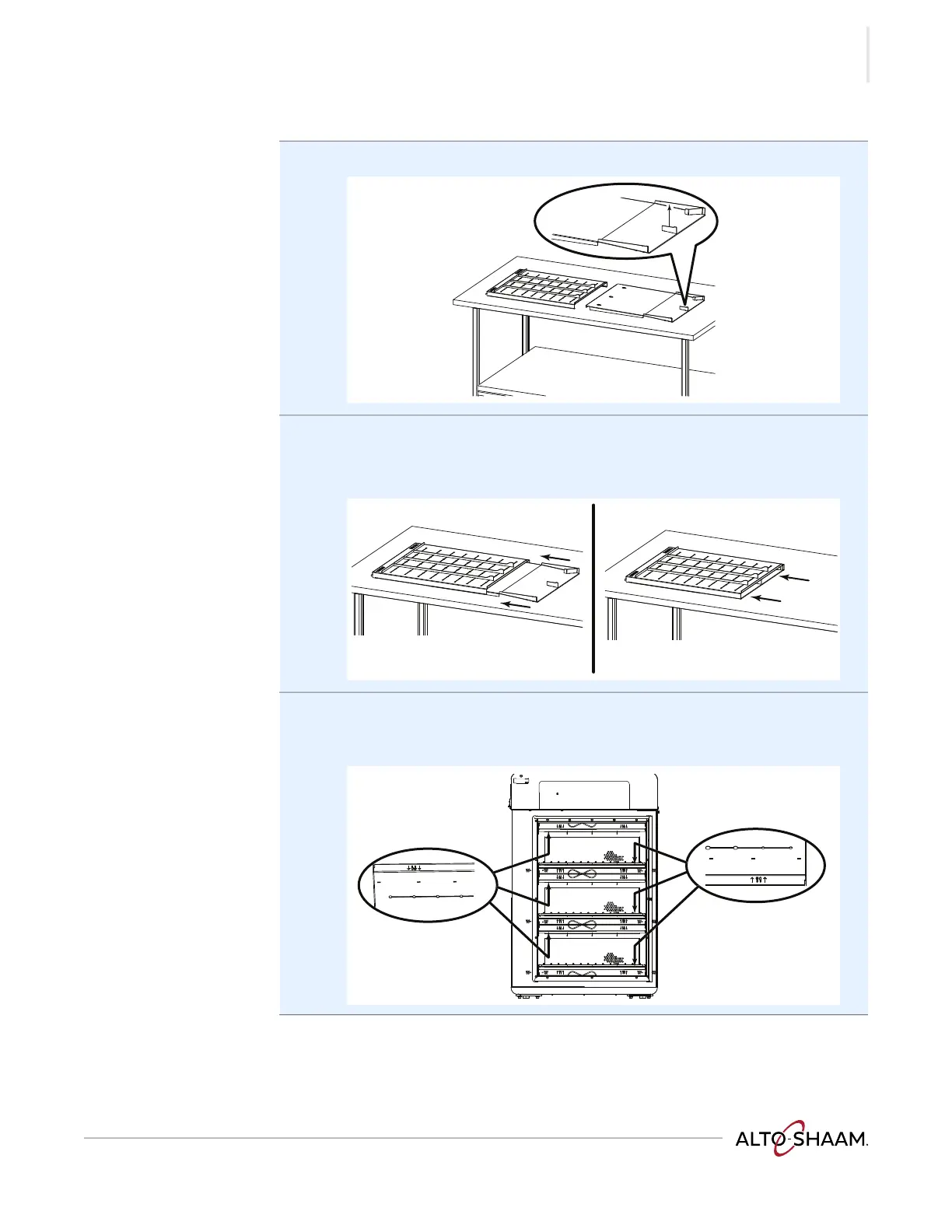

2. Place an inner panel on the table with the air deflector up.
3. Insert the inner panel into the outer panel. Push the inner panel into the
outer panel until it is fully inserted.
Assemble all jet plates in a similar fashion.
4. Install jet plates 5029095 in the lower section of each chamber with the part
number facing up. Install jet plates 5030451 in the upper section of each
chamber with the part number facing down.
Continued on next page
VMC-TS-014320
VMC-TS-014323
VMC-TS-014326
5029095
5030451
5029095
5030451
