Alto AS-H50Y User Manual

7
Ball
Valve
BACKWASH
FILTER
FILTER
Pool
Position for optional
Erosion Feeder
Non-Return Valve
Back-Up Heater if
required
Condensate
Water to waste
PUMP
Female/ Threaded
Socket Union

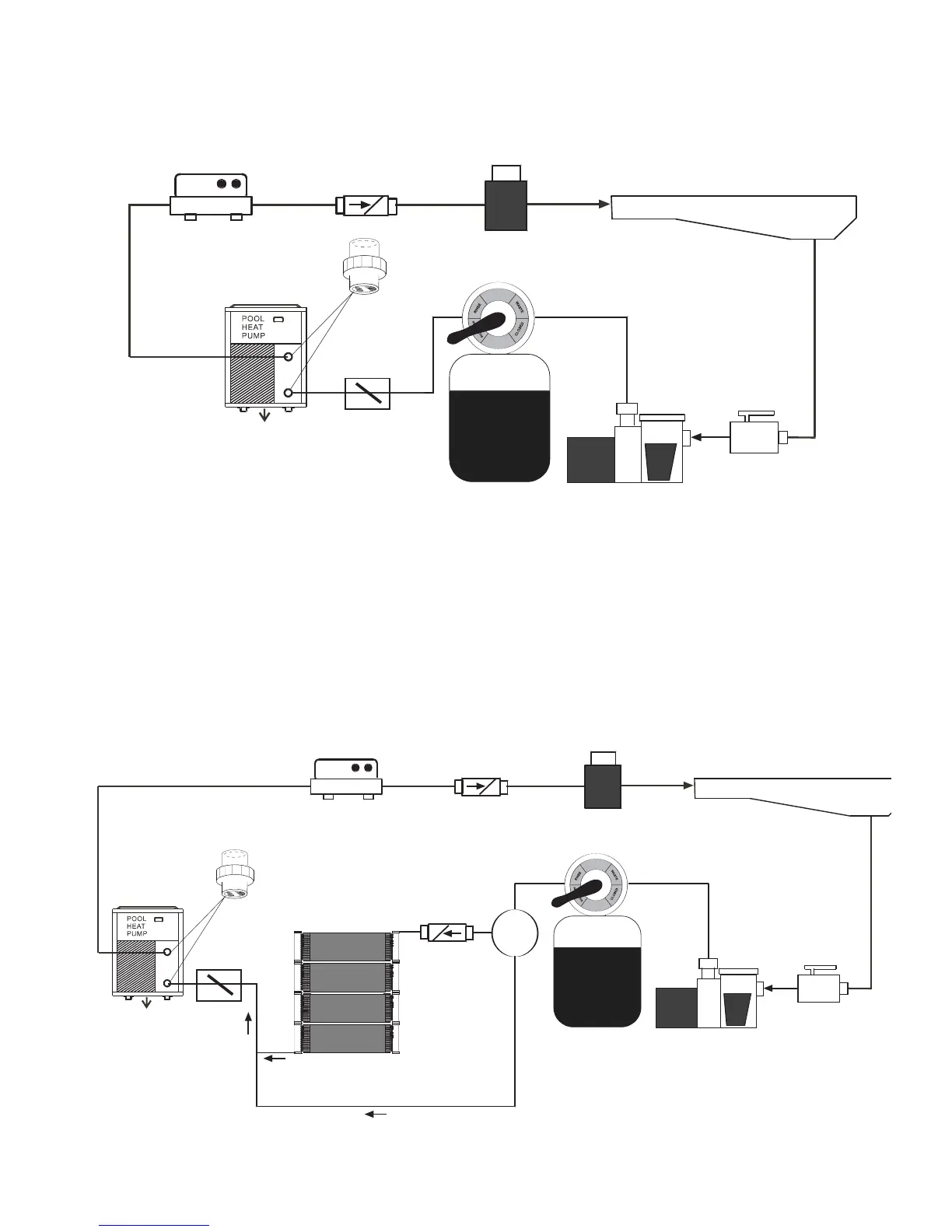

Drw.1 Recommended plumbing layout for a standard heat pump installation.
Drw.2 Recommended plumbing layout when incorporating Solar Heating. If an increased flow rate is
required instal a booster pump as per drw.4 below.
Ball
Valve
BACKWA SH
FILTER
FILTER
Pool
Non-Return Valve
Back-Up Heater if
required
PUMP
Solar Heating
3-Way
Valve
Install a plumbing bypass for running filtration
& heat pump at night.
Non-Return Valve
Position for optional
Erosion Feeder
Condensate
Water to waste
Female/ Threaded
Socket Union
PLUMBING LAYOUT
Flow Switch
(Optional)
Flow
Switch
(Optional)
