Alto SR400A - Page 7

1 2 3 4
A B C D
4321
D C B A

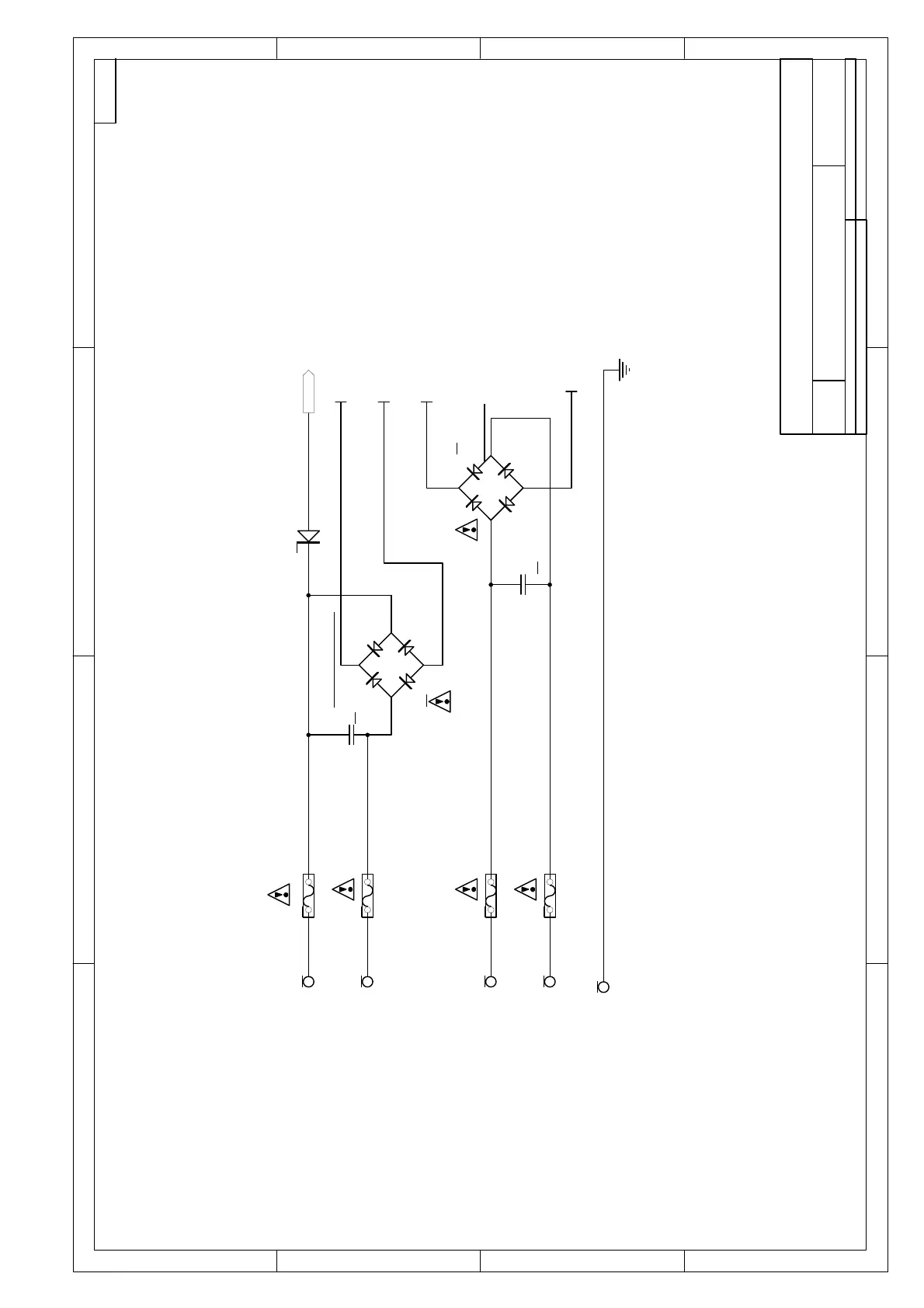

F1 T6.3A F3 T6.3A F4 T6.3A F2 T6.3A
D1
KBPC25
D4 GBU8D
D2 1N4002
C2
0.01uF400V
C1400V/10N
S1 S4
S3
S5 S2
+VCC1
-VCC1
+VCC2 -VCC2
Vac
KBU806
BP25-06PWS
Title Size:
A4
Number
Date: File:
Sheet of: Drawn By:
Revision
SR400A
P-313121-1
2004/08/27 SR300A
1/1
MO GUO ZHU
VER1.0
