9

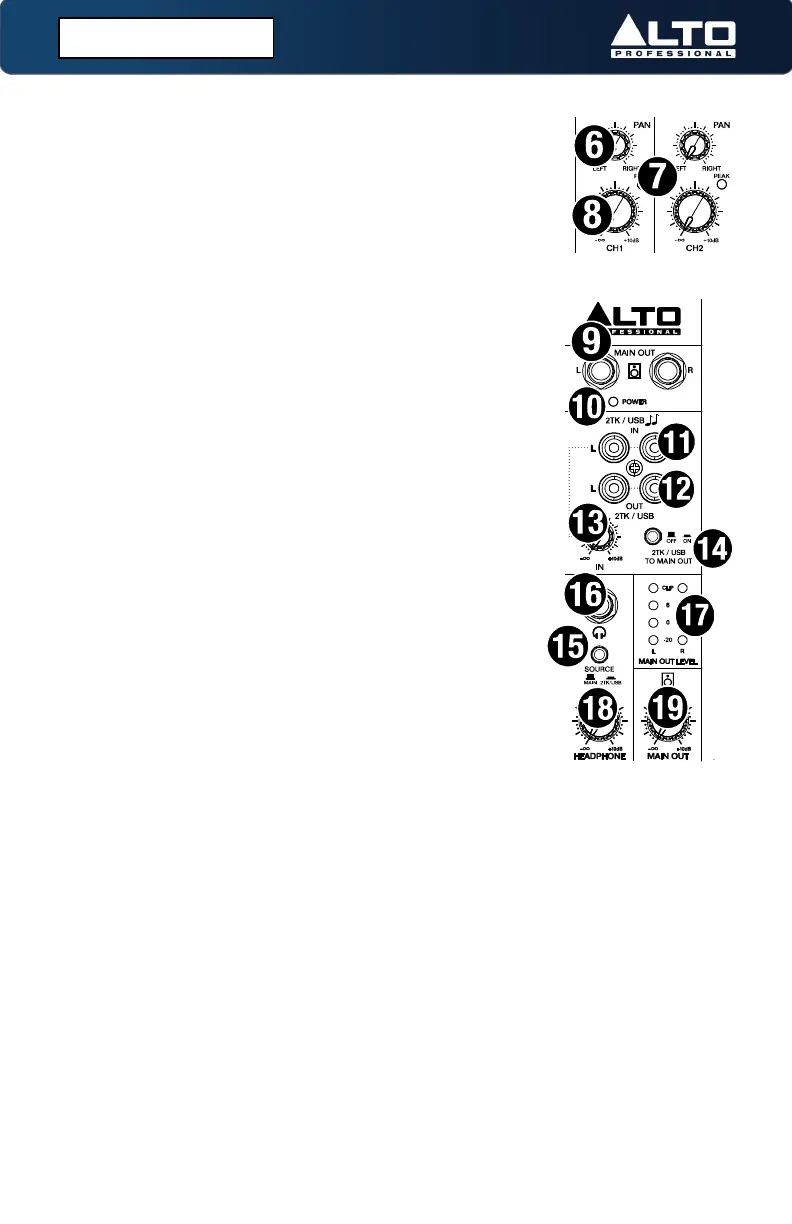

6. Channel Pan: Turn this knob to adjust the (mono)
channel's Left-Right position in the stereo field.
7. Peak LED: This LED will flash if the signal is clipping. If
this happens, decrease the level on the Gain knob or
Channel Volume knob.
8. Channel Volume: Turn this knob to adjust the level of
the channel’s output signal.
9. Main Outputs: Use standard 1/4" (6.35 mm) cables to
connect these outputs to the house speaker or
amplifier system. The level of these outputs is
controlled by the Main Out Volume knob.
10. Power LED: This LED illuminates green when the mixer
is powered on.
11. 2TK (2-Track)/USB Inputs: Connect these inputs to
the outputs of an external sound source using a
standard stereo RCA cable (sold separately). You can
also send this channel to the headphone mix (using the
Headphone Source button) and/or the main mix
(using the 2TK/USB To Main Out button).
12. 2TK/USB Outputs: Connect these outputs to the
inputs of an external recording device using a standard
stereo RCA cable (sold separately).
13. 2TK/USB In Volume: Turn this knob to adjust the
volume of your 2TK/USB Input signal.
14. 2TK/USB To Main Out: Press this button to send the
2TK/USB Input signal through the Main Outputs.
15. Headphone Source: Press this button to switch the
Headphone Output source between Main Out and
2TK/USB signals.
16. Headphone Output: Connect a pair of stereo
headphones to this 1/4” (6.35 mm) TRS output to
monitor your Main Output signal.
17. LED Meters: These LEDs display the audio level of the
Main Output. Turn the Main Out volume down if the
red "Clip” LED lights up excessively.
18. Headphone Volume: Turn this knob to adjust the
volume of the Headphone Output.
19. Main Out Volume: Turn this knob to adjust the volume
of the Main Output.
(3.0) FEATURES
