Altronix ACM4 User Manual

Sub-Assembly - 7 -
A
A
B B
A
C

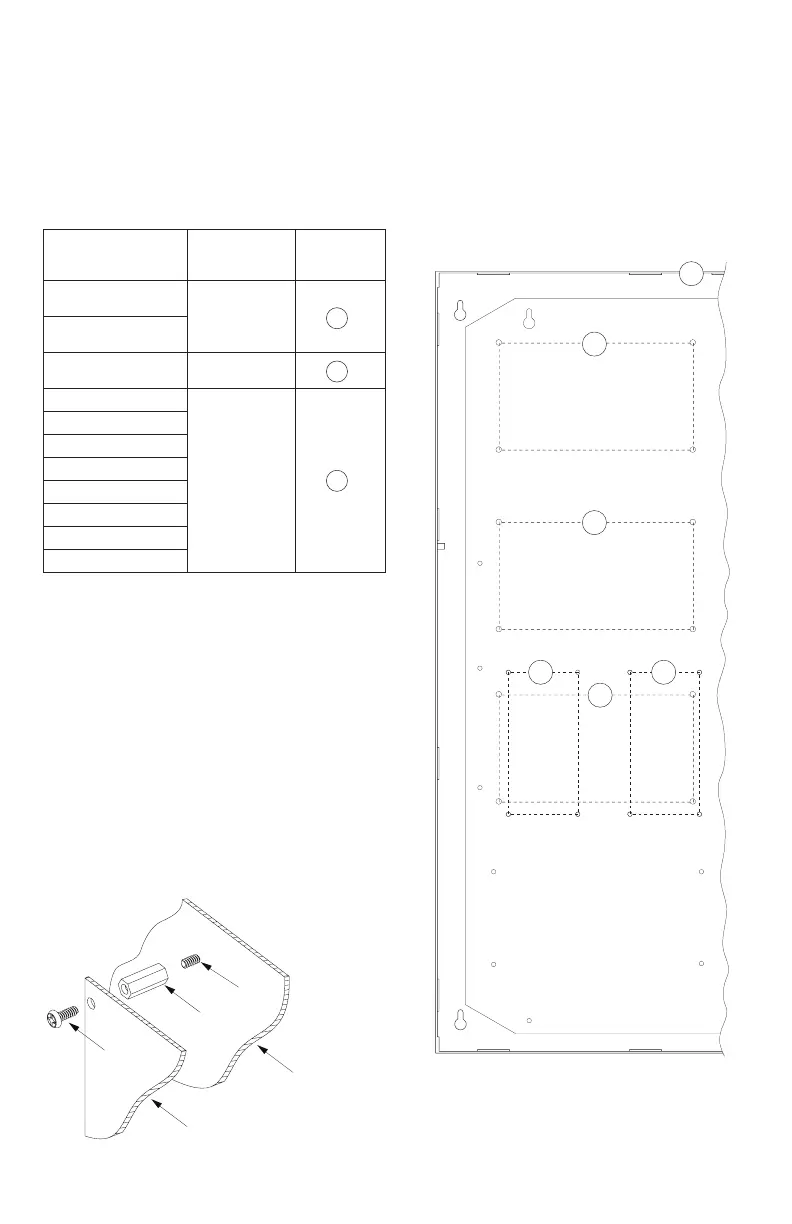

Installation Instructions for Trove2CV2 (TCV2):
1. Fasten standoffs onto metal pems configuration (A) or configuration (B) of enclosure depending on the
sub-assembly module (Fig. 6, pg. 7).
2. Position sub-assembly module over corresponding standoffs and secure module into enclosure with
four (4) pan head screws supplied (Fig. 6a, pg. 7).
3. Refer to the Trove2 Installation Guides and individual Sub-Assembly Installation Guides for the
following models: ACM4(CB), ACM8(CB), LINQ2, LINQ8PD(CB), MOM5, PD4UL(CB), PD8UL(CB),
PD16W(CB), PDS8(CB), ACMS8(CB), VR6 for further installation instructions.
Sub-Assembly Position Chart for the Following Models:
Sub-Assembly
Module
Mounting
Position
Mounting
ACM8(CB)
First, Second &
Third on Left
A *
ACMS8(CB)
LINQ2** Top Edge C
LINQ8PD(CB)
Two (2)
Vertical Slots
Third on Left
B
ACM4(CB)
MOM5
PD4UL(CB)
PD8UL(CB)
PD16W(CB)
PDS8(CB)
VR6
* Top left position (A) is usually reserved for Altronix power
supplies, but can also be used for sub-assemblies (Fig. 6).
** LINQ2 can be installed when utilizing
eFlow power supply/charger boards.
Pem
Standoff
Sub Assembly
Enclosure
Pan Head
Screw
Fig. 6a
Fig. 6
