- 8 - LINQ8ACM(CB)
Tango1B - PoE Driven Power Supply with Lithium Battery Backup
Overview:
Altronix Tango1B Voltage Regulator converts an IEEE802.3bt PoE input into a regulated 24VDC and/or 12VDC
output up to 65W. It eliminates the need for a high voltage power supply inside of an enclosure. The Tango 8-pin
connector allows for stacking with LINQ8ACM(CB), saving valuable enclosure space. Tango1B is designed to
support a single 12V LiFePO
4
(Lithium Iron Phosphate) battery for high storage and charge/discharge cycle
life reliability. Refer to Tango1B Installation Guide Rev. TANGO-071119.
Specifications:

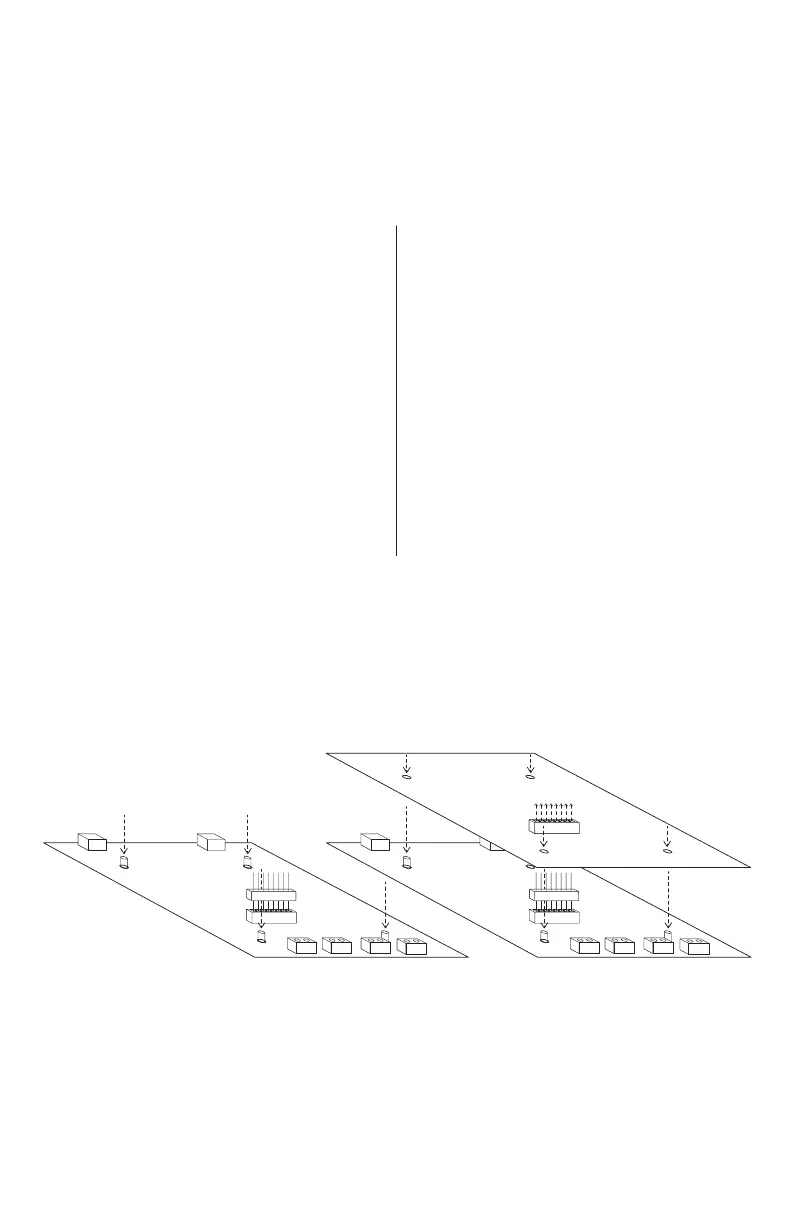

Connecting LINQ8ACM(CB) to Tango1B:
1. Mount Tango1B in the desired location/enclosure.
2. Plug-in male 8-pin connector to female 8-pin receptacle on Tango1B board.
3. Fasten standoffs. Use metal standoff over mounting hole with star pattern.
4. Align 8-pin male connector with female receptacle of LINQ8ACM(CB), then mount.
5. Connect 24VDC power supply to terminal marked [+ PWR1 –] of LINQ8ACM(CB).
Thus Input 1 of LINQ8ACM(CB) is 24VDC from power supply and Input 2 is determined by
Tango1B’s settings (12VDC or 12VDC).
6. Complete steps 4-10 (pgs. 3-4).
LINQ8ACM/
LINQ8ACMCB
Tango1BTango1B
Fig. 4
Ethernet Input:
• 802.3bt PoE up to 90W or 802.3at up to 30W
or 802.3af up to 15W.
Power Output (when using 802.3bt 90W):
• 12VDC up to 5.4A (65W)
and/or 24VDC up to 2.7A (65W).
Combined output not to exceed 65W.
• When charging batteries:
12VDC up to 4.6A (55W) and/or
24VDC up to 2.3A (55W)
Combined output not to exceed 55W.
Ethernet Output:
• Pass-through Ethernet Port (data only).
• 100/1G
Battery:
• 12VDC battery charger for Lithium Iron
Phosphate Battery (LiFeP0
4
only) .
• Unique technology allows for single battery
to backup 12VDC and/or 24VDC systems.
Battery (cont’d):
• Low power shutdown. Shuts down DC output
terminals if battery voltage drops below 80% of
nominal. Prevents deep battery discharge.
Supervision:
• Loss of PoE Input.
• Battery Supervision.
Visual Indicators:
• Input indicates input voltage is present.
• Battery status indicates battery trouble condition.
• PoE Class indicator.
• Supervision PoE Fail or BAT Fail.
Additional Features:
• Short circuit and overload protection.
Board Dimensions (approximate L x W x H):
7.625” x 4.125” x 1.25”
(193.7mm x 104.8mm x 32.0mm)
To Next Page
