LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating condition
ON OFF Loss of AC, Stand-by battery supplying power
OFF ON No DC output. Short circuit or thermal overload condition.
OFF OFF No DC output. Loss of AC. Discharged or no battery present.
Terminal Identification:
Terminal Function/Description
Legend
AC/AC Low voltage AC input (see voltage output/transformer selection table).
For 6VDC output use 16VAC or higher with 40VA power rating or higher.
For 12VDC output use 16V
AC or higher with 85VA po
wer rating or higher.
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltage abo
ve 28 VAC or 45VDC (maximum input rating).
+ DC
-- 6VDC,12VDC or 24VDC @ 4 amp continuous supply current.
+ BAT -- Stand-by battery connections. Maximum charge rate 300mA.

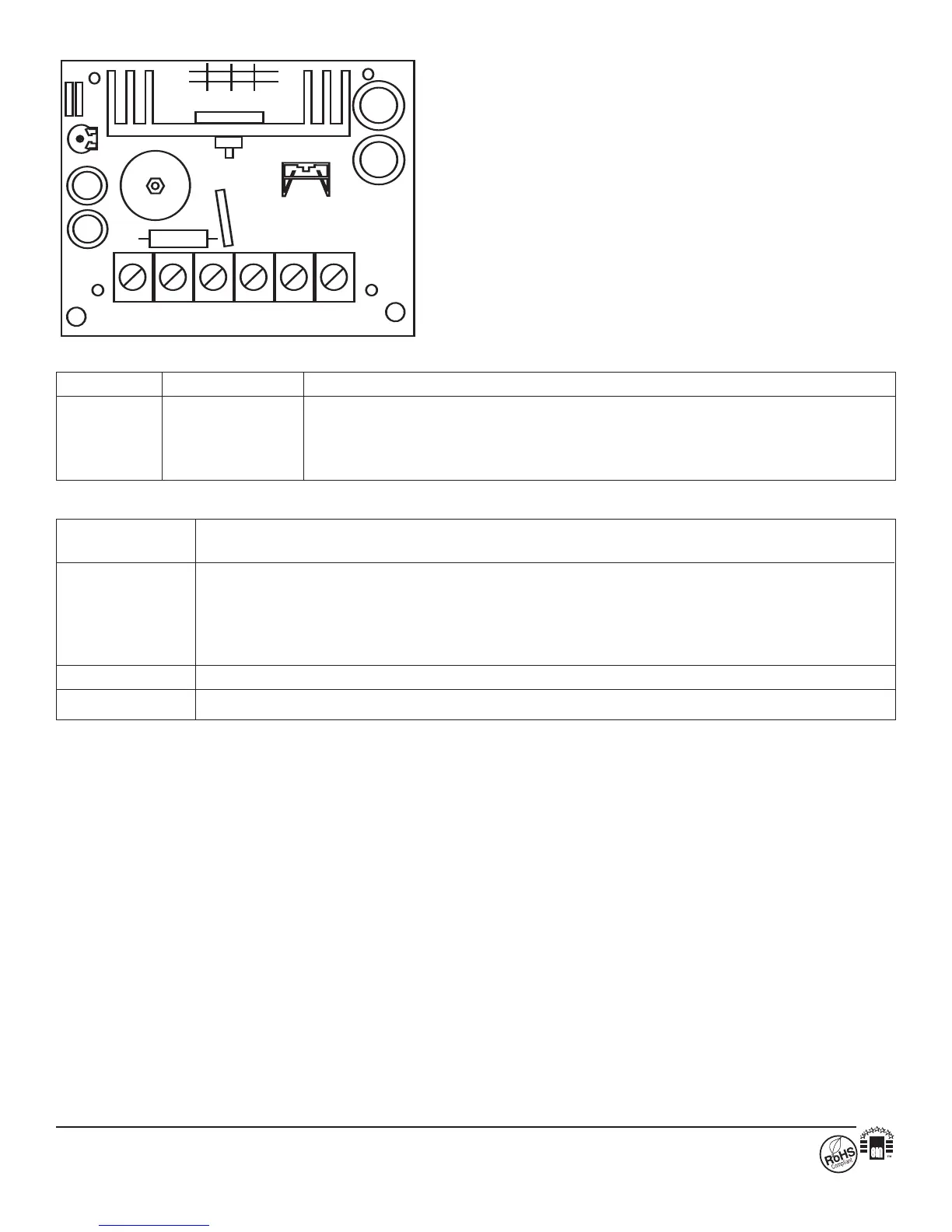

+ DC -- + BAT -- AC AC
AC
D
C
MADE IN U.S.A.
S
W1
6 V 12 V 24 V
S
W1 CLSD OPEN OPEN
SW2 OPEN OPEN CLSD
S
W2
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, Ne
w York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime
Warranty, Made in U.S.A.
IISMP5 - Rev. 110606 K06F
