ALW LIGHTPLANE 9 - Page 11

LP9 Suspended Installation Guide 11 of 11 102-000026 - IG090320-A.0

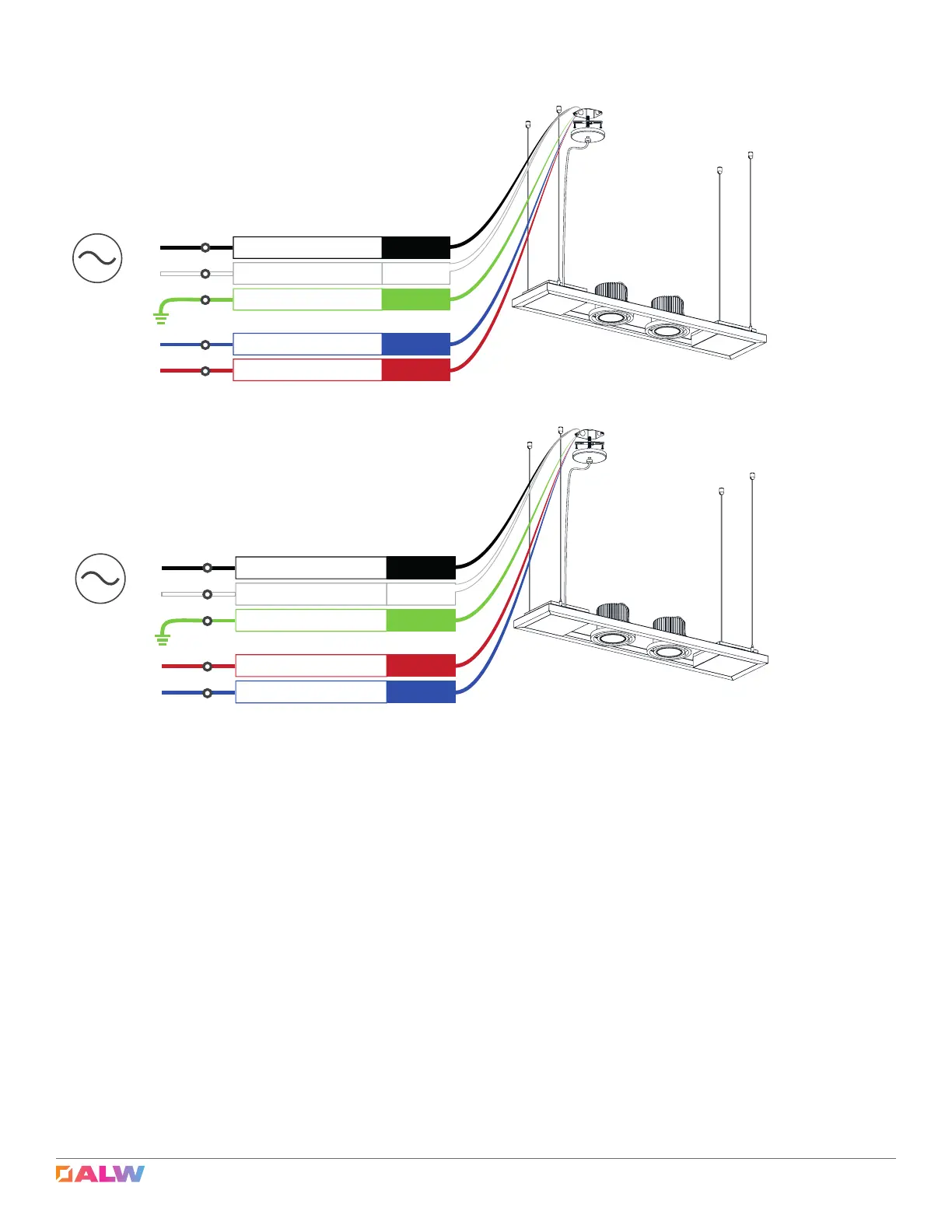

Wiring Diagrams (Cont.)
Black
White
Green
Blue
Red
Line Voltage (Hot)
Line Voltage (Neutral)
Ground
Dali -
Dali +
L
N
AC 50/60Hz
DALI -
DALI +
DALI
Canopy/Power Feed
Black
White
Green
Red
Blue
Line Voltage (Hot)
Line Voltage (Neutral)
Ground
E1
E2
L
N
AC 50/60Hz
E1
E2
Lutron LDE
Canopy/Power Feed
