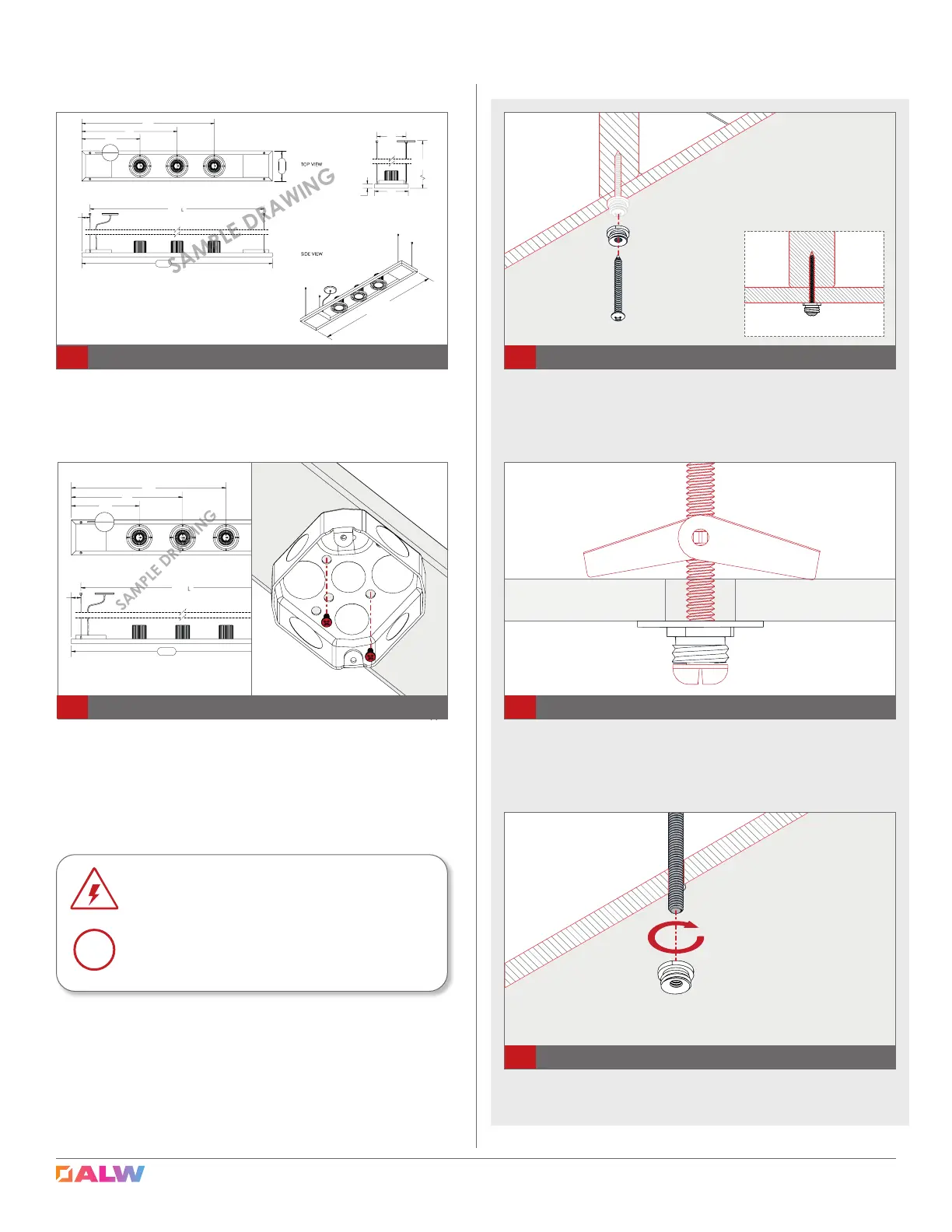

ALW LIGHTPLANE 9 - Installation; Prepare Ceiling; Standard Suspension

LP9 Suspended Installation Guide 5 of 11 102-000026 - IG090320-A.0LP9 Suspended Installation Guide
Ceiling Fittings may also be mounted using toggle bolts.
3B
Install Ceiling Fitting - Toggle Bolts
Ceiling Fittings may also be mounted on 1/4”-20
Threaded Rods.
3C
Install Ceiling Fitting - 1/4”-20 Threaded Rods
Installation: Prepare Ceiling Installation: Standard Suspension
Ceiling Fittings may be installed directly into framing with
appropriate hardware.
3A
Install Ceiling Fitting - Framing
C
See nal/record drawings for mounting locations. Install
framing or strut channels with consideration for alignment
of wiring and suspension mounting locations.
1
See Final/Record Drawings for Mounting Locations
SAMPLE DRAWING
C
Install Canopy J-Box at power feed location per nal/
record drawing. Otherwise run conduit/NM cable to
powerfeed location.
2
Install Canopy J-Box
SAMPLE DRAWING
SHOCK HAZARD! May result in serious injury or
death. Turn power OFF at circuit breaker prior to
installation or servicing.
!
DO NOT PINCH OR PUT EXCESSIVE TENSION ON
WIRES while joining sections or reattaching heatsink.
