ALW LIGHTPLANE 9 - Wiring Diagrams

LP9 Suspended Installation Guide 10 of 11 102-000026 - IG090320-A.0
LP9 Suspended Installation Guide

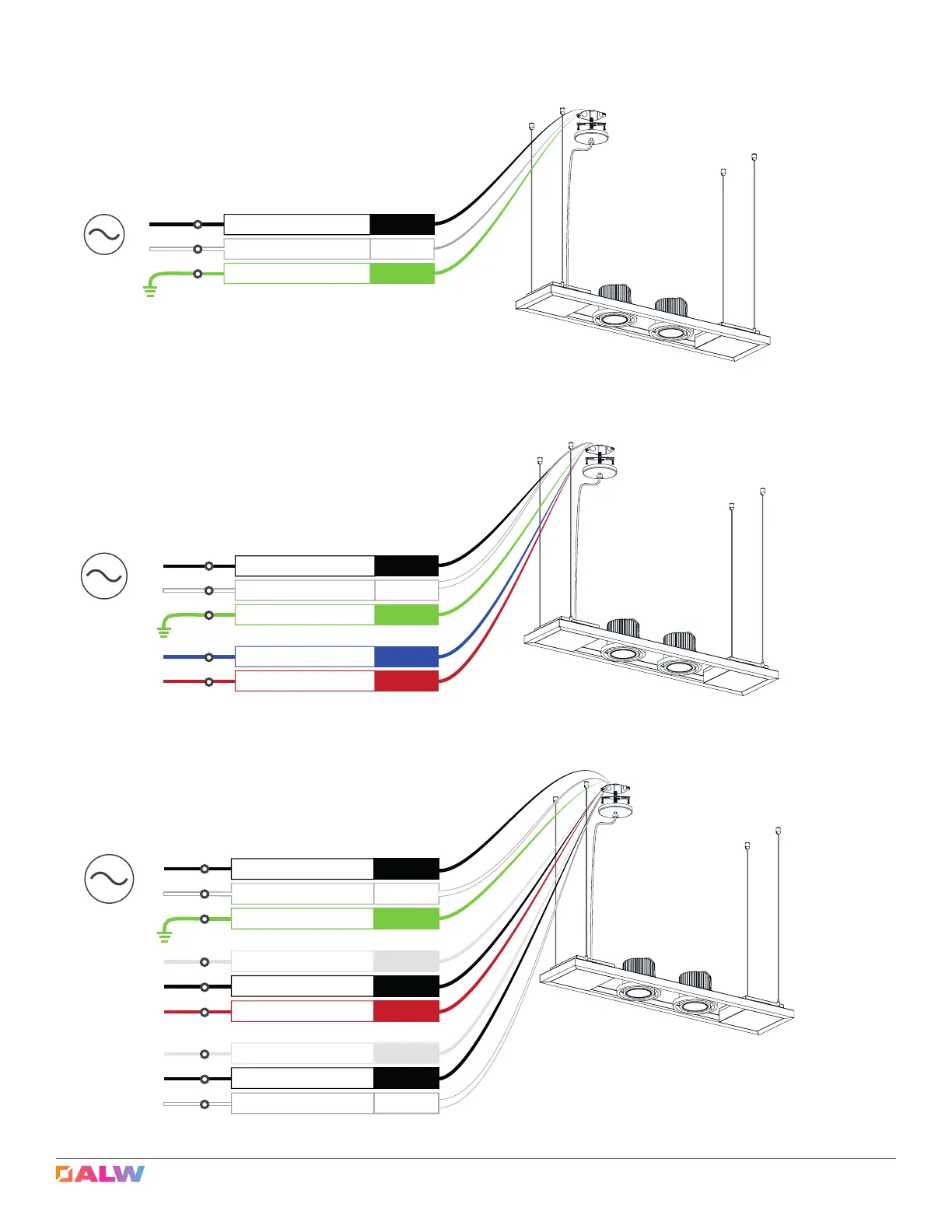

Wiring Diagrams
Black
White
Green
Ground
Line Voltage (Hot)
Line Voltage (Neutral)
L
N
AC 50/60Hz
Traditional On/Off
Black
White
Green
Blue
Red
Line Voltage (Hot)
Line Voltage (Neutral)
Ground
0-10VDC (Dim-)
0-10VDC (Dim+)
L
N
AC 50/60Hz
DIM-
DIM+
0-10V Dimming
Black
White
Green
Clear
Black
DMX in shield
DMX in -
Line Voltage (Hot)
Line Voltage (Neutral)
Ground
L
N
AC 50/60Hz
DMX In Shield
DMX in -
Red
DMX in +
DMX in +
Clear
Black
DMX out shield
DMX out -
White
DMX out +
DMX Out Shield
DMX out -
DMX out +
DMX
Canopy/Power Feed
Canopy/Power Feed
Canopy/Power Feed
