9

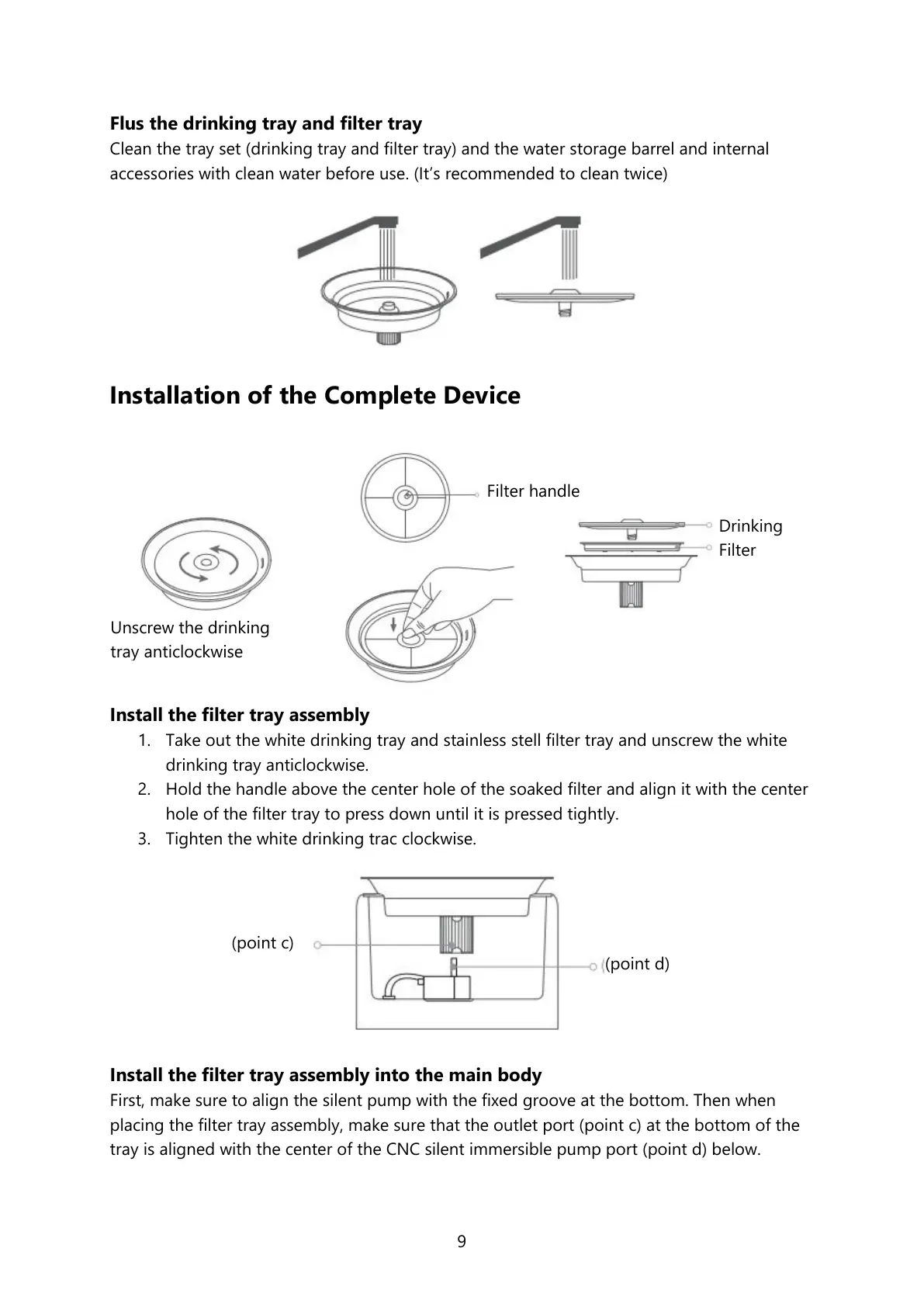

Flus the drinking tray and filter tray
Clean the tray set (drinking tray and filter tray) and the water storage barrel and internal
accessories with clean water before use. (It’s recommended to clean twice)
Installation of the Complete Device
Install the filter tray assembly
1. Take out the white drinking tray and stainless stell filter tray and unscrew the white
drinking tray anticlockwise.
2. Hold the handle above the center hole of the soaked filter and align it with the center
hole of the filter tray to press down until it is pressed tightly.
3. Tighten the white drinking trac clockwise.
Install the filter tray assembly into the main body
First, make sure to align the silent pump with the fixed groove at the bottom. Then when
placing the filter tray assembly, make sure that the outlet port (point c) at the bottom of the
tray is aligned with the center of the CNC silent immersible pump port (point d) below.
Unscrew the drinking
tray anticlockwise
