CHAPTER 3: USING PROGRAMMING FUNCTIONS
IS-300CA INVERTER POWER SUPPLY
990-418 3-7

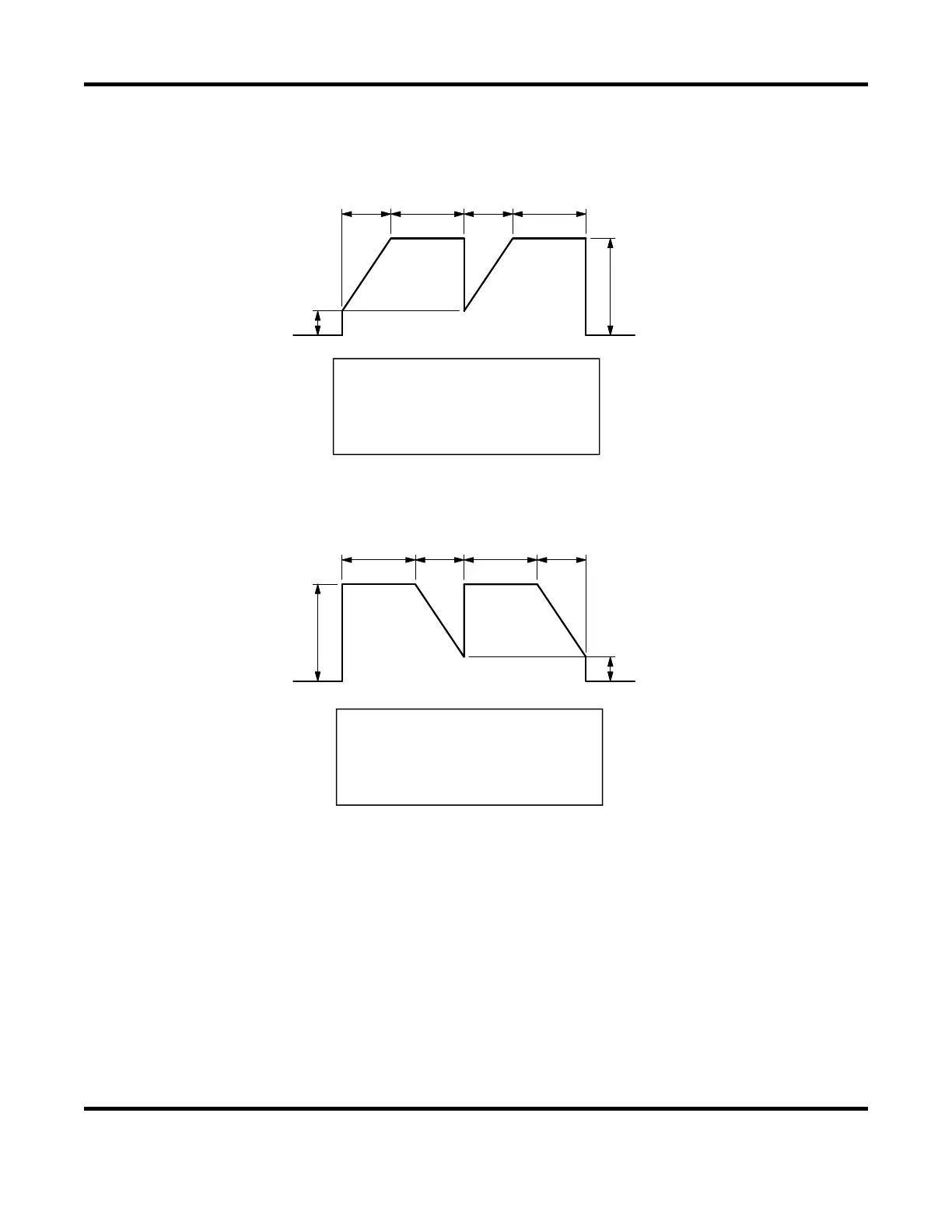

When the upslope time is set in the pulsation welding. The upslope time is set, and the UF HEAT
setting of C and the HEAT setting of D are different.
A B A B
C
D
When the downslope time is set in the pulsation welding. The downslope time is set, and the
HEAT setting of C and the DL HEAT setting of D are different.
A AB B
C
D
When the upslope time and the downslope times are set in the pulsation welding. The upslope
time and the downslope time are set, and the UF HEAT setting of D and the DL HEAT setting of
F are different.
A: UP1 to 3 time
B: WELD1 to 3 time
C: UF1 to 3 HEAT
D: HEAT1 to 3
A: WELD1 to 3 time
B: DOWN1 to 3 time
C: HEAT1 to 3
D: DL1 to 3 HEAT
