This manual is to be used by qualified appliance
technicians only. Amana does not assume any
responsibility for property damage or personal
injury for improper service procedures done by an
unqualified person.

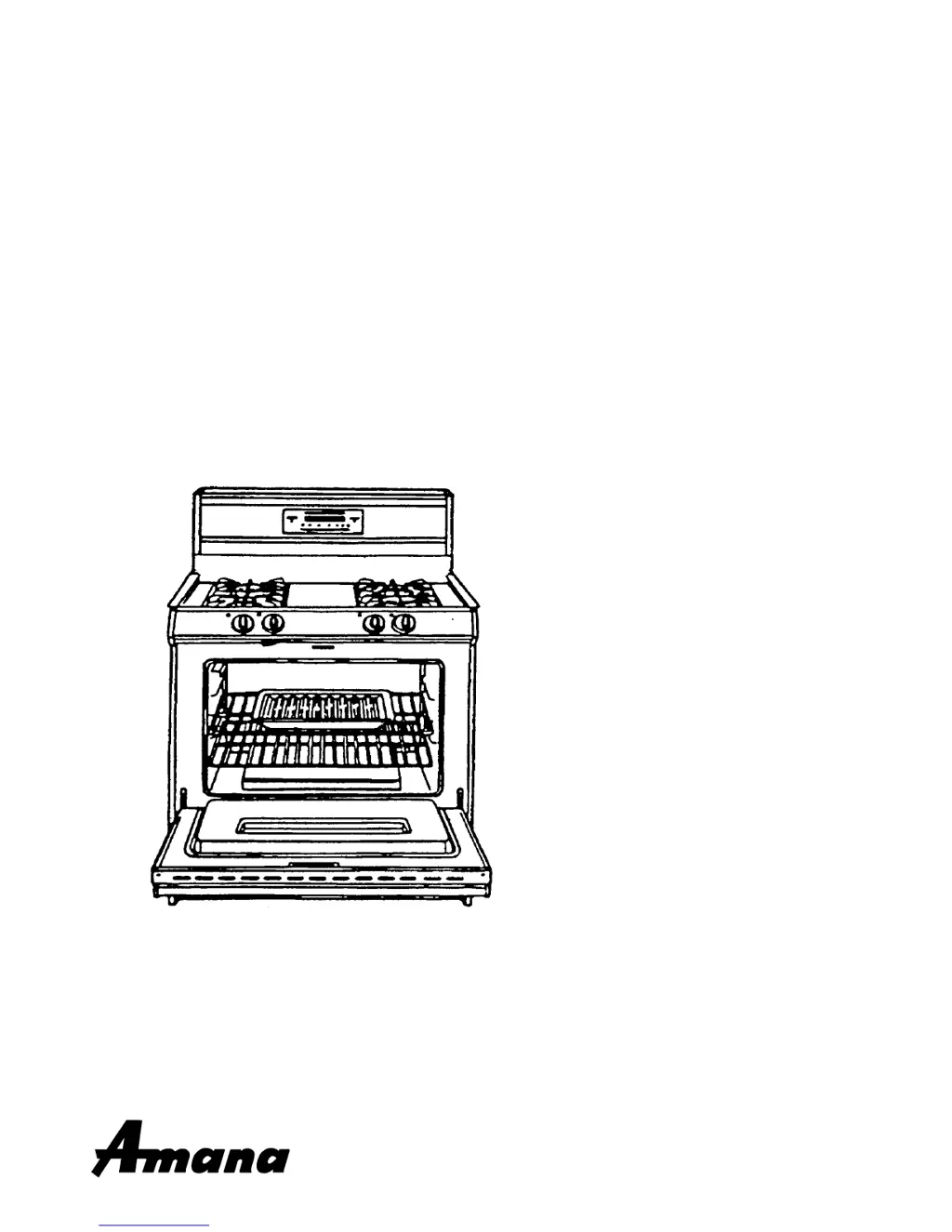

Service
Gas Ranges
Models and manufacturing
numbers in this manual
RB231001
Revision 4
December 1997
AGS730 P1141258N
AGS730 P1141263N
AGS730 P1141268N
AGS730 P1143301N
AGS750 P1141236N
AGS751 P1141273N
AGS751 P1141288N
AGS751 P1142634N
AGS751*1 P1143303N
AGS760 P1141237N
AGS760 P1141238N
AGS760 P1141251N
AGS761 P1141274N
AGS761 P1141289N
AGS761 P1142635N
AGS761 P1143304N
AGS761*1 P1143305N
AGS780 P1141240N
AGS780 P1141252N
AGS780 P1168601N
AGS780 P1168601S
AGS780 P1168602N
AGS780 P1168602S
AGS781 P1141275N
AGS781 P1142636N
AGS781 P1143306N
RSF3200U P1141255N
RSF3200U P1141264U
RSF3200U P1141271N
RSF3200U P1143307N
RSF3300U P1141256N
RSF3300U P1141265U
RSF3300U P1141272N
RSF3300U P1143308N
RSF3400U P1141222N
RSF3410U P1141257N
RSF3410U P1141269N
RSF3410U P1143309N
RSK3700U P1141223N
RSK3700U P1141247N
RSK3700U P1141253N
RSK3700U P1141270N
RSK3700U P1143310N
This manual replaces RB231001 Rev. 3.

Table of Contents

Other manuals for Amana AGS781

Preview: Use And Care Manual
Use And Care Manual22 pages

Questions and Answers

  • A
    Adam LoganAug 18, 2025
    How to fix Amana AGS781 Ranges burners that won't ignite?
    • C
      Christine YoungAug 18, 2025
      If the burners on your Amana range won't ignite and there's no spark at the top burner, it could be due to a few reasons: 1. There might be a poor ground on the burner cap. Try cleaning the burner cap. 2. The spark module could be weak or has failed. Consider replacing the spark module. 3. There might be low gas pressure. Check the pressure, ensuring it's at 6" WCP for natural gas or 11" WCP for LP.
  • X
    xbarnesAug 23, 2025
    Why does my Amana AGS781 Ranges keep sparking after being turned off?
    • K
      Kathleen GeorgeAug 23, 2025
      If your Amana range continues to spark after it's turned off, it could be due to: * A shorted valve switch. Replace the switch. If excessive spillovers caused the shorting, make sure to properly care for it in the future. * The switch may have been pulled up and off its fixed position on the valve. Carefully reposition the switch on the valve, and rotate the valve from off to high several times to ensure the switch isn't broken.
  • B
    Brian BranchAug 30, 2025
    What to do about intermittent sparking in Amana Ranges?
    • T
      Terry MckenzieAug 30, 2025
      If you're experiencing intermittent or occasional sparking after your Amana range is turned off, this is likely due to crossed polarity. To resolve this, with all spark switches in the "OFF" position, check for voltage at the "N" terminal of the spark module to ground. If voltage is present, the polarity is reversed. A qualified electrician should check the polarity at the wall socket.
  • T
    Timothy WhiteSep 4, 2025
    Why is there no spark at ignitor on my Amana AGS781 Ranges?
    • W
      walkerandrewSep 4, 2025
      If there's no spark or only a random spark at one ignitor on your Amana range, it could be caused by: * A cracked ignitor or pinched ignitor wire, which is permitting current leakage. Replace the ignitor lead or electrode. * A bad ground connection or lack of continuity to ground or the ignitor. Tighten the ground connection and correct any breaks in the ground path from the ignitor path to the unit ground. * A cracked or broken ignitor extension lead. Replace the ignitor lead.
  • J
    Jeremy GardnerNov 10, 2025
    What to do if my Amana Ranges burner won't ignite?
    • V
      victoriarussoNov 10, 2025
      If your Amana range burner won't ignite and there's no spark to the burner ignitors when you push down and hold the burner knob in the 'LIGHT' position, here are a few things to check: * First, ensure the range is receiving power by checking the wall outlet. * Second, the micro switch contacts may not be closing. Verify all terminals and connections are correct and tight, checking the wiring against the appropriate wiring diagram. Also, check the micro switch contacts themselves. * Third, there may be faulty wiring or a bad connection at the burner cap electrode and electrode socket. Again, check the wiring against the appropriate diagram and make sure all terminals and connections are correct and tight. * Fourth, the spark module could be inoperative. Check the module and replace...
