Français
(4)

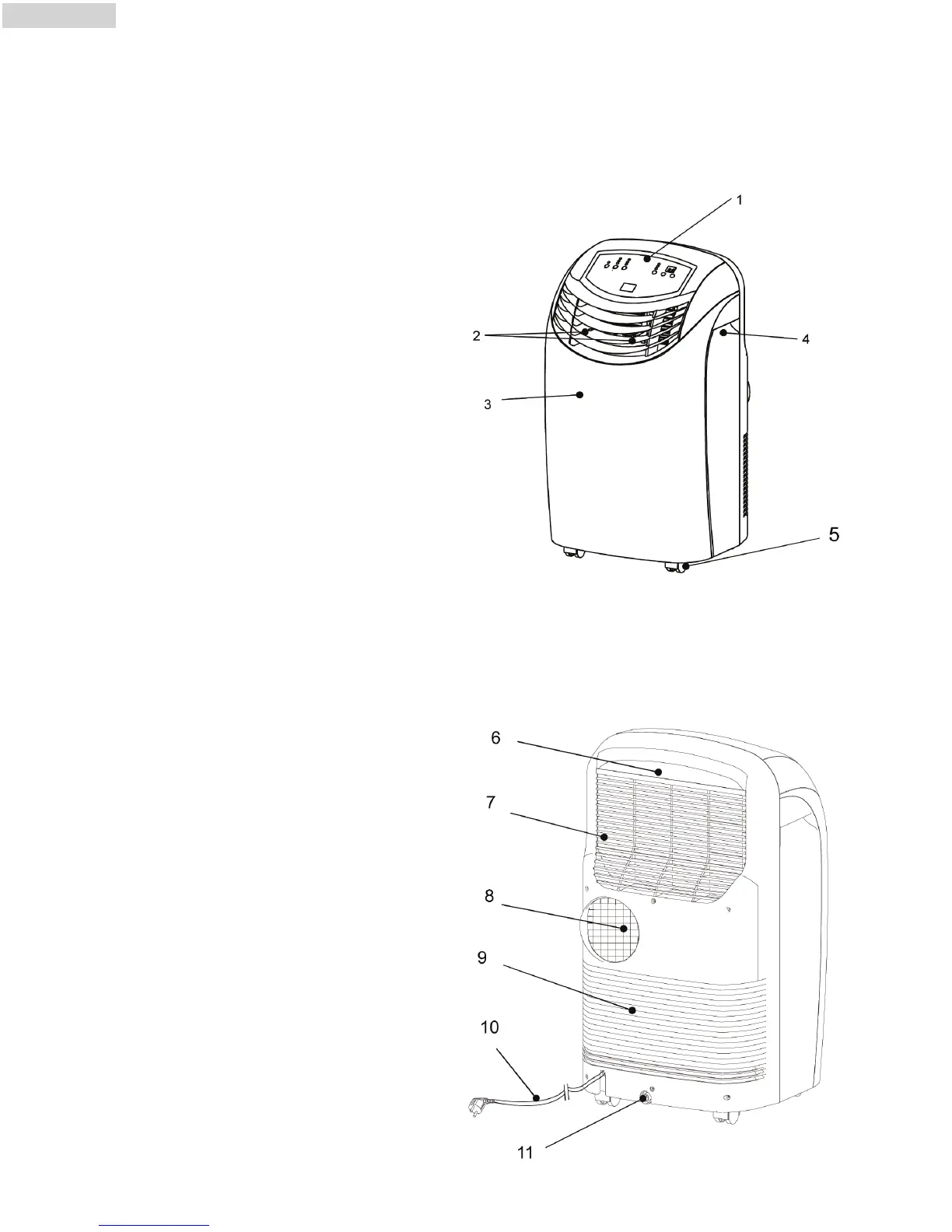

Parties et Caracteristiques
1. Tableau de Commande
2. Deflecteur d’air (Gauche-Droite)
3. Panneau de devant
4. Trou de Traitement
5. Roulette
6. Filtre d’ecran
7. Entrée d’air ( Evaporateur )
8. Sortie d’air-
( Echange thermique )
9. Entrée d’air – (Condensation )
10. Corde d’alimentation
11. Egout pour la sortie d’eau
Avant
Arrière
