1
2 4
Exhaust Hose
Hose Connector Duct Connector
65
3
Fig.1
Fig.2
Fig.3
(5)
English

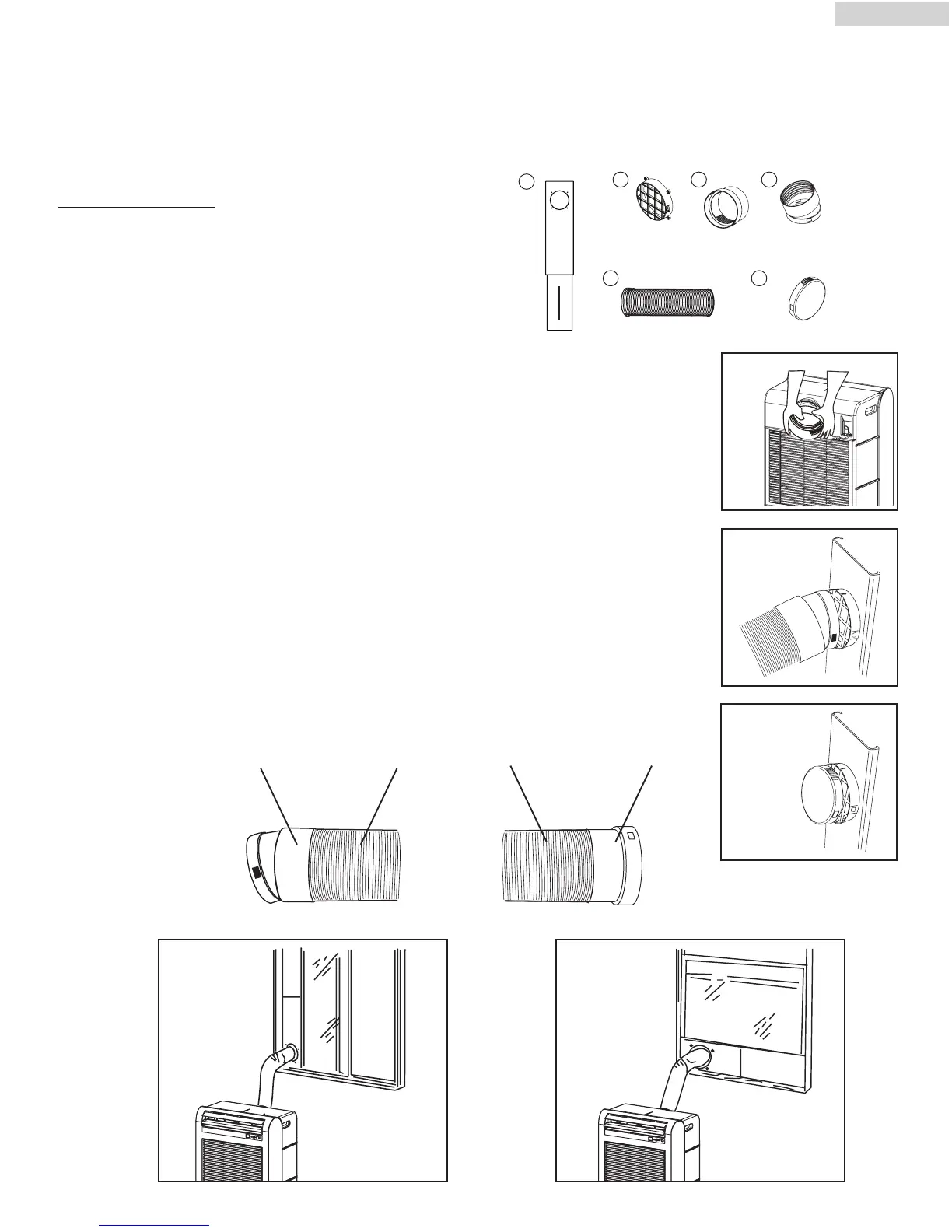

Assembly and Installation
1.Adjust the plastic panel to the width or height of your window and tighten
the 2 screws that are attached to the panel.
2.Push the round window panel adapter through the rear of the plastic panel.
Line up the holes and tighten the adapter with 4 screws that are included
in the kit. (Tighten screws from the front.)
3.Install the window plastic panel into the window. If necessary use duct
tape to better secure the panel.
4.Connect exhaust hose to the unit by inserting the duct connector that is
attached to the hose into the exhaust. Turn Adapter clockwise until it locks.
(See Fig.1)
5.Move the unit to the window, extend the hose and attach the other end of
the hose to the window. Align the tabs on the hose and window panel
adapters and fasten them together. (See Fig.2)
6.A cover can be installed on the window panel adapter when the air
conditioner is not in use.(See Fig.3)
Accessories Include
1. Window slider kit - 1 set
2. Fixture - 1 piece
3. Heat exhaust duct connector - 1 piece
4. Heat exhaust hose connector - 1 piece
5. Heat exhaust hose - 1 piece
6. Cover - 1 piece
